please help Assignment of individual protons in molecule based on NMR spectrum of 2- methylcyclohexanol. PPM...

Question

Question

please help Assignment of individual protons in molecule based on NMR spectrum of 2- methylcyclohexanol.

PPM PW NA: 8 clohexanol in CDCI3 (5)

science chemistry

Answer 1

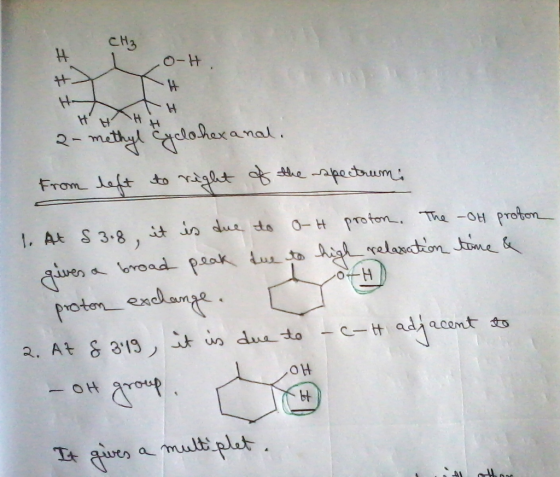

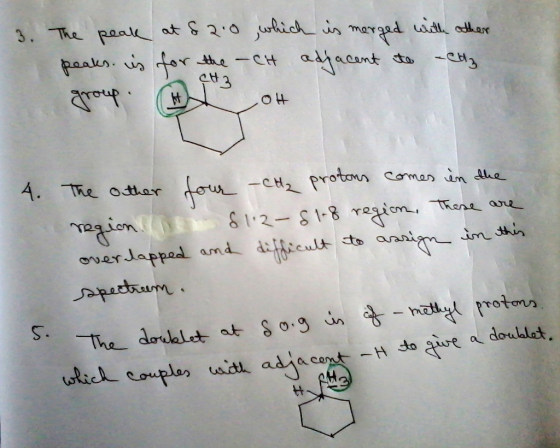

Answer #1

Answer 2
