2) Sketch te respose of te LTI system with impulse response h(t) to the input r(t)...

Question

Question

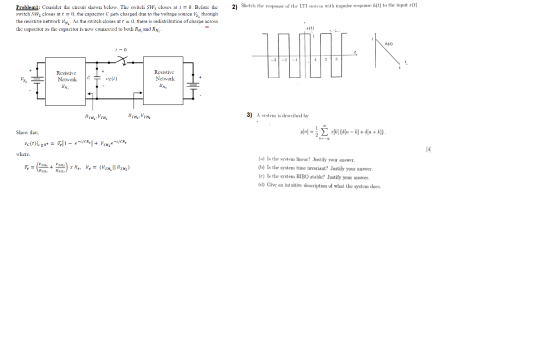

2) Sketch te respose of te LTI system with impulse response h(t) to the input r(t) Problem1 Cosider the cicuil shown below Th

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

The unit impulse response and the input to an LTI system are given by: h(t) u(t)...

The unit impulse response and the input to an LTI system are given by: h(t) u(t) - u(t - 4) x(t) e2[u(t)-u(t - 4)] x(t) 1 y(t) h(t) 1. Determine the output signal, i.e.y(t), you may use any method. 2. Is this system memoryless? Why? 3. Is this system causal? Why? 4. Is this system BIBO stable? Why?
An unstable LTI system has the impulse response h(t)=sin (4t)u(t). Show that proportional feedback (G(s) =...

An unstable LTI system has the impulse response h(t)=sin (4t)u(t). Show that proportional feedback (G(s) = K) cannot BIBO-stabilize the system. Show that derivative control feedback (G(s) = Ks) can stabilize the system. Using derivative control, choose K so that the closed loop system is critically damped. 7. (a) (b) (c) %3D E(s) System но) X(s) (E +Y(s) Feedback G(s) Y(s) Y(s) system G(s) Feedback loop Figure 4. o of
Find the frqeuncy response and impulse response of the system with the output y(t) for the next input x(t) Please, Solve (a) and (c) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x...

Find the frqeuncy response and impulse response of the system with the output y(t) for the next input x(t) Please, Solve (a) and (c) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult) x)e u(t), ()eu(te ult)

Given a zero-state LTI system whose impulse response h(t) = u(t) u(t-2), if the input of...

Given a zero-state LTI system whose impulse response h(t) = u(t) u(t-2), if the input of the system is r(t), find the system equation which relates the input to the output y(t) 4. (20 points) If a causal signal's s-domain representation is given as X (s) = (s+ 2)(s2 +2s + 5) (a) find all the poles and zero of the function. 2 1 52243 orr
4. Consider a CT LTI system whose impulse response is given by h(t)( 3) (t 2))...

4. Consider a CT LTI system whose impulse response is given by h(t)( 3) (t 2)) (a) Sketch h(t), and label a mportant points. 2 2. b) Is the system causal? Circle your answer. No justification needed yes r ノ(c) Is the system stable? Circle your answer. No justification needed. or no ye d) Suppose the input to the system is r(t) ut 5). Over what range of t is the system output not equal to 0? Circle your answer....
Consider a continuous-time LTI system S with impulse response h(t) = 2(u(t + 1)-u(t 1)). Determine...

Consider a continuous-time LTI system S with impulse response h(t) = 2(u(t + 1)-u(t 1)). Determine the values of the amplitude scaling and the tme shifting that takes place when each of the following input signals is provided to the system S. Don't use the convolution integral, instead use the result about how LTI systems respond to complex exponential signals. (a) x(t) 2 (b) x(t) ej0.5Tt (c) x(t) = e-j0.5πt (d) x(t) = e-jmt (e) x(t) = cos (0.5t) (f)...

Consider a continuous-time LTI system impulse response h(t) as given below. h(t) = 2/3 e^-tu(t)-1/3 e^2t...

Consider a continuous-time LTI system impulse response h(t) as given below. h(t) = 2/3 e^-tu(t)-1/3 e^2t u(-t) (a) Determine Laplace Transform H(s) of h(t). Determine and clearly sketch its ROC. (b) Is it possible to find the Fourier Transform H(j!) of h(t) by using Laplace Transform? If possible, determine H(j!). Why, or why not? Explain. (c) Is this system causal? Is this system stable? Explain your answers.
(e) Consider an LTI system with impulse response h(t) = π8ǐnc(2(t-1). i. (5 pts) Find the frequency response H(jw). Hint: Use the FT properties and pairs tables. ii. (5 pts) Find the output y(t) when...

(e) Consider an LTI system with impulse response h(t) = π8ǐnc(2(t-1). i. (5 pts) Find the frequency response H(jw). Hint: Use the FT properties and pairs tables. ii. (5 pts) Find the output y(t) when the input is (tsin(t) by using the Fourier Transform method. 3. Fourier Transforms: LTI Systems Described by LCCDE (35 pts) (a) Consider a causal (meaning zero initial conditions) LTI system represented by its input-output relationship in the form of a differential equation:-p +3讐+ 2y(t)--r(t). i....
