Do not round intermediate calculations. Give your final answer(s) to three significant figures. Knowing that the allowable stress for the beam shown is 95 MPa, determine the allowable bending moment M when the radius r of the fillets is (a) 12 mm, (b) 18 mm. 8 mm 120 mm 60 mm SM 28 24 K 20 12 14 1.02 1.2 0 005 010 015 0.2 0.25 03 (a) M (b) M = N m N·m
The beam shown is made of a nylon for which the allowable stress is 25 MPa...
The beam shown is made of a nylon for which the allowable stress is 25 MPa in tension and 30 MPa in compression. Determine the largest couple M that can be applied to the beam. 52 mm 21 mm 42 mm 26 mm M 278.8 N m
Do not round intermediate calculations. Give your final answer(s) to three significant figures. An extruded aluminum...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. An extruded aluminum beam has the cross section shown. Knowing that the vertical shear in the beam is 200 kN, determine the shearing stress at point a . 8 16 80 40 80 Dimensions in mm MPa
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 100 kN 90...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 100 kN 90 mm 100 kN Two steel plates of uniform cross section 9 x 90 mm are welded together as shown. Knowing that centric 100-kN forces are applied to the welded plates and that ß - 29°, determine (a) the in-plane shearing stress parallel to the weld, MPa corresponding normal MPa
Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the beam...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the beam and loading shown, consider section n-n and determine the largest shearing stress in that section. 1/2 in 20 kips 20 kips 7 in 3 in. 1/2 in i n 14 in 10 in.14 in
Do not round intermediate calculations. Give your final answer(s) to three significant figures. The 5.2 ×...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. The 5.2 × 10.4-in. timber beam has been strengthened by bolting to it the steel reinforcement shown. The modulus of elasticity for wood is 1.8 × 106 psi and for steel 29 x 106 psi. Knowing that the beam is bent about a horizontal axis by a couple moment ol50 kip in. determine the maximum stress in the wood. 5.2 in 04 in 4.1 × ½ in....
Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the given...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the given state of stress, determine the normal and shearing stresses after the element shown has been rotated through 21° clockwise. 93 MPa 28 MPa 67 MPa MPa MPa ry
Do not round intermediate calculations. Give your final answer(s) to three significant figures. Determine the plastie...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. Determine the plastie moment Mp of a steel beam of the eross section shown, assuming the steel to be elastoplastic with a yield strength of250 MPa 48 mm 28 mm 10 mm 12 mm 28 mm м, kN m
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 1...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 144 MPa 96 MPa For the state of stress shown, determine two values of σ, for which the maximum shearing stress is 180 MPa Hint Sketch Mohr's circle for 3-dimensional stresses in terms of σ' Consider both cases, cv > ơx and and
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 144 MPa 96 MPa For the state of stress shown, determine...
Do not round intermediate calculations. Give your final answer(s) to three significant figures Each of the...
Do not round intermediate calculations. Give your final answer(s) to three significant figures Each of the two vertical links CF connecting the two horizontal members AD and EG has a 40-mm uniform rectangular cross section and is made of a steel with an ultimate strength in tension of 404 MPa, while each of the pins at C and F has a 10-mm diameter and is made of a steel with an ultimate strength in sheer of 14S MPa. Determine the...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. Knowing that the allowable stress for the beam shown is 95 MPa, determine the allowable bending moment M when the radius r of the fillets is (a) 12 mm, (b) 18 mm. 8 mm 120 mm 60 mm SM 28 24 K 20 12 14 1.02 1.2 0 005 010 015 0.2 0.25 03 (a) M (b) M = N m N·m

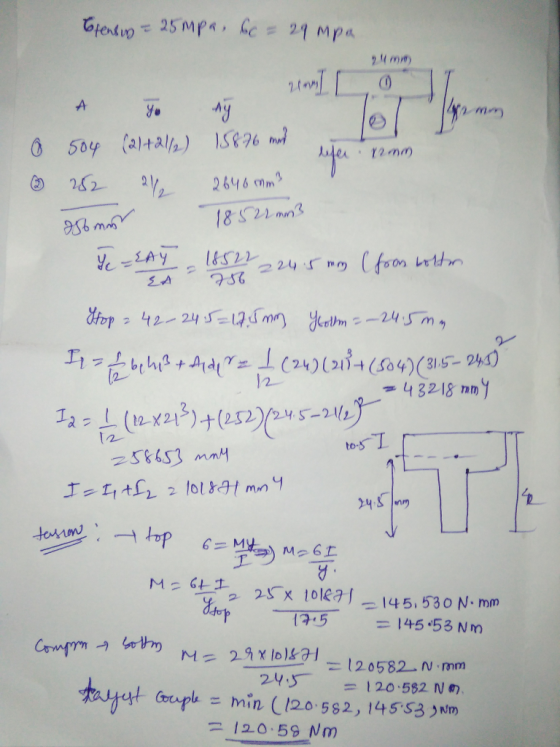

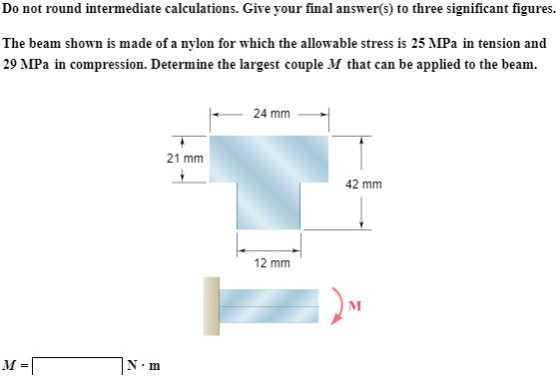

The beam shown is made of a nylon for which the allowable stress is 25 MPa in tension and 30 MPa in compression. Determine the largest couple M that can be applied to the beam. 52 mm 21 mm 42 mm 26 mm M 278.8 N m
Do not round intermediate calculations. Give your final answer(s) to three significant figures. An extruded aluminum beam has the cross section shown. Knowing that the vertical shear in the beam is 200 kN, determine the shearing stress at point a . 8 16 80 40 80 Dimensions in mm MPa
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 100 kN 90 mm 100 kN Two steel plates of uniform cross section 9 x 90 mm are welded together as shown. Knowing that centric 100-kN forces are applied to the welded plates and that ß - 29°, determine (a) the in-plane shearing stress parallel to the weld, MPa corresponding normal MPa
Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the beam and loading shown, consider section n-n and determine the largest shearing stress in that section. 1/2 in 20 kips 20 kips 7 in 3 in. 1/2 in i n 14 in 10 in.14 in
Do not round intermediate calculations. Give your final answer(s) to three significant figures. The 5.2 × 10.4-in. timber beam has been strengthened by bolting to it the steel reinforcement shown. The modulus of elasticity for wood is 1.8 × 106 psi and for steel 29 x 106 psi. Knowing that the beam is bent about a horizontal axis by a couple moment ol50 kip in. determine the maximum stress in the wood. 5.2 in 04 in 4.1 × ½ in....
Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the given state of stress, determine the normal and shearing stresses after the element shown has been rotated through 21° clockwise. 93 MPa 28 MPa 67 MPa MPa MPa ry
Do not round intermediate calculations. Give your final answer(s) to three significant figures. Determine the plastie moment Mp of a steel beam of the eross section shown, assuming the steel to be elastoplastic with a yield strength of250 MPa 48 mm 28 mm 10 mm 12 mm 28 mm м, kN m
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 144 MPa 96 MPa For the state of stress shown, determine two values of σ, for which the maximum shearing stress is 180 MPa Hint Sketch Mohr's circle for 3-dimensional stresses in terms of σ' Consider both cases, cv > ơx and and
Do not round intermediate calculations. Give your final answer(s) to three significant figures. 144 MPa 96 MPa For the state of stress shown, determine...
Do not round intermediate calculations. Give your final answer(s) to three significant figures Each of the two vertical links CF connecting the two horizontal members AD and EG has a 40-mm uniform rectangular cross section and is made of a steel with an ultimate strength in tension of 404 MPa, while each of the pins at C and F has a 10-mm diameter and is made of a steel with an ultimate strength in sheer of 14S MPa. Determine the...
