(a) The electric field in a certain region is E = (-4.0k) N/C. Determine the electric...

Question

Question

(a) The electric field in a certain region is E = (-4.0k) N/C. Determine the electric flux due to this field through an area

science physics

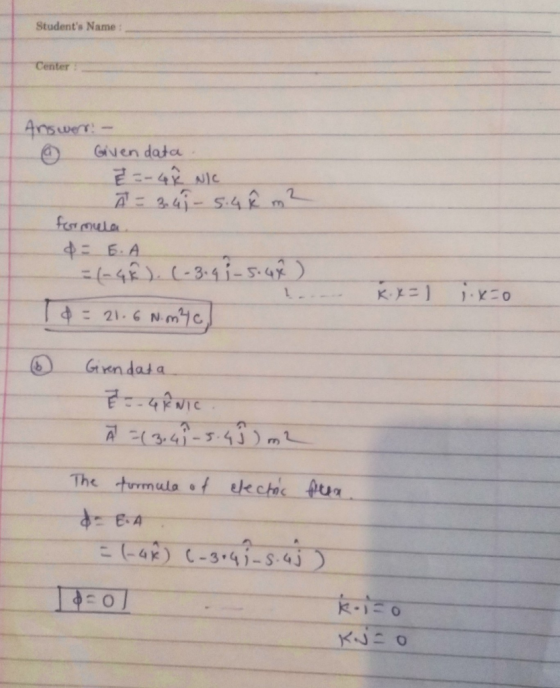

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

(a) The electric field in a certain region is E (4.0)) N/C. Determine the electric flux...

(a) The electric field in a certain region is E (4.0)) N/C. Determine the electric flux due to this freld through an area represented by the vector A (1.51-7.k) m 29 How is the flux defined in terms of the electric field vector, and the area vector? Review dot product rules. N·m2/C (b) Determine the flux due to the same electric field when the surface orientation has changed such that the area is now represented by the vector A -(1.51-7.3)...
(a) The electric field in a certain region is E = (-4,0 ) NC Determine the...

(a) The electric field in a certain region is E = (-4,0 ) NC Determine the electric flux due to this field through an area represented by the vector A = 4.8-5.0k) m2 (b) Determine the flux due to the same electric field when the surface orientation has changed such that the area is now represented by the vector A = (4.8↑-5.0j) m2. N m2/c
A cube of side L-3.2 m lies in a region where the electric field is given...

A cube of side L-3.2 m lies in a region where the electric field is given by E-2 7+5.4)i -4.0k N/C. We wish to find the net electric flux through the cube by first calculating the flux through each of (a) What is the flux through the left face of the cube? N-m2/C (b) What is the flux through the right face of the cube? N m2/c (c) What is the flux through the top face of the cube? (d)...

consider the uniform electric field E = 5.0 + 4.0k) 103 N/С. what is its electric...

consider the uniform electric field E = 5.0 + 4.0k) 103 N/С. what is its electric flux (in N·m2/C) through a circular area of radius 3.0 m that lies in the xy-plane? (Enter the magnitude.)
In a certain region, the magnetic field is represented by the equation B = (a +...

In a certain region, the magnetic field is represented by the equation B = (a + bt)ſ, where a = 3.50 mt and b = 4.30 mT/s. A circular coil of area 1.90 x 10-3 m2 and N = 5 turns is oriented in the x-z (horizontal) plane in this field region. Due to the change in magnetic flux, charge passes by a given point in the circuit at a rate of 6.45 mc/s. Determine the resistance of the coil....
For the electric field: E = (10 i + 20y j) N/C, what is the electric...

For the electric field: E = (10 i + 20y j) N/C, what is the electric flux through ?a 2.0 m^2 portion of the xy-plane 40 Nm2/C. O 20 Nm2/C. O 50 Nm2/C. O zero O

A flat surface of area 3.10 m2 is rotated in a uniform electric field of magnitude...

A flat surface of area 3.10 m2 is rotated in a uniform electric field of magnitude E = 5.20 105 N/C. (a) Determine the electric flux through this area when the electric field is perpendicular to the surface. N · m2/C (b) Determine the electric flux through this area when the electric field is parallel to the surface. N · m2/C
ere is an electric flux of 33.5 N-m2 / C through the square region shown in...

ere is an electric flux of 33.5 N-m2 / C through the square region shown in the figure to the right. Each side of the square has a length of 0.100 m, and the electric field is at an angle of ? = 55.0% relative to the plane of the surface. Assuming that the field is uniform over the region shown, what is the magnitude of the electric field? I1 Number N/ C
A uniform electric field of magnitude E = 465 N/C makes an angle of θ =...

A uniform electric field of magnitude E = 465 N/C makes an angle of θ = 61.5° with a plane surface of area A = 3.55 m2 as in the figure below. Find the electric flux through this surface.

A uniform electric field of magnitude E = 430 N/C makes an angle of θ =...

A uniform electric field of magnitude E = 430 N/C makes an angle of θ = 60.5° with a plane surface of area A = 3.65 m2 as in the figure below. Find the electric flux through this surface.
