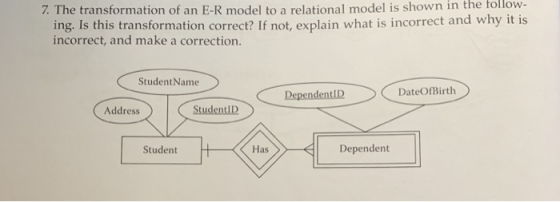

7. The transformation of an E-R model to a relational model is shown in the follow- ing. Is this transformation correct? If n

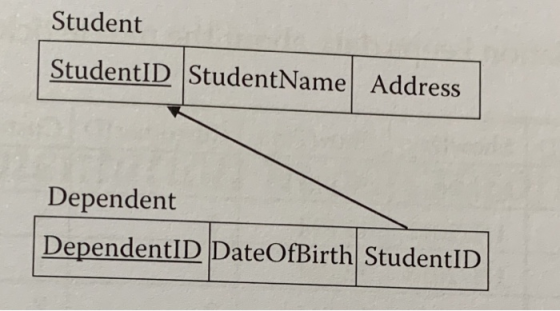

Student StudentID StudentName Address Dependent DependentID DateOfBirth StudentID
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Converting ER Diagram into Relational Tables:

Step 1: Convert Strong Entities into relational tables.Here strong entity is Student. So

CREATE TABLE STUDENT(StudenId INT PRIMARY KEY,StudentName CHAR(20),Address char(20))

Step 2: Convert Weak Entities into relational tables.Here weak entity is Dependent. So

CREATE TABLE DEPENDENT(DependentID int,dateOfBirt date)

Step 3: Add binary key 1:1,1:N,M:N Relationships to table.

Here in given ER Diagram it is showing that one student have many dependents.

In that case Add One side Prime Attribute to N side entity and make it as a foreign key. i.e StudentId int Dependent table refers the StudentId in Student Table .

ALTER TABLE DEPENDENT ADD StudentId INT

ALTER TABLE DEPENDENT ADD FOREIGN KEY(StudentId) References STUDENT(StudenId)

So whatever given relations are perfectly fine. The transformation from ER Model to Relational model is correct.

Note : if you have any queries please post a comment thanks a lot..always available to help you...
