A person holds a 3.0 kg block against a rough wall by pushing the block diagonally...

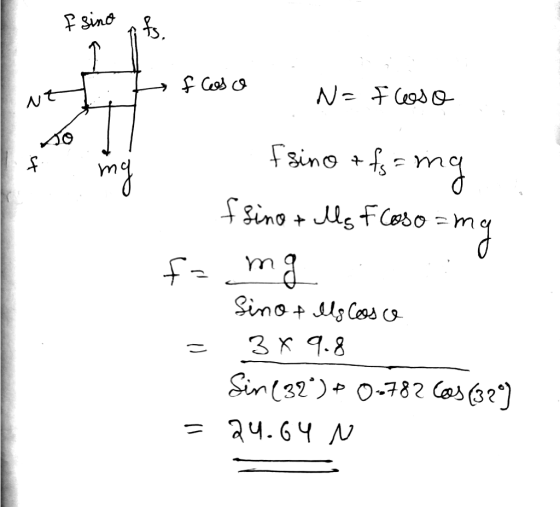

A person holds a 3.0 kg block against a rough wall by pushing the block diagonally at an angle of 32 degrees with the horizontal. If the coefficient of friction between the block and the wall is 0.782, determine the smallest amount of force with which the person must push in order to hold the block stationary.
Homework Answers
Add Answer to:
A person holds a 3.0 kg block against a rough wall by pushing
the block diagonally...
A person is pushing against a wall while their body is slanted. The wall is made...
A person is pushing against a wall while their body is slanted.
The wall is made of smooth ice, therefore it has zero friction. The
floor, however, is made of rough sandstone and as a result, has
coefficients of friction
and
, both of which are non-zero.
Model the person as a uniform one-dimensional
rod of mass m and length L. Their body
makes an angle
relative to the ground as shown.
Known: m, L,
,
,
, g
Note:...
A block of mass 3.00 kg is pushed against a wall by a force P that makes a 50.0 degree angle with the horizontal....
A block of mass 3.00 kg is pushed against a wall by a force P that makes a 50.0 degree angle with the horizontal. The coefficient of static friction between the block and the wall is 0.250. (a) Determine the possible values for the magnitude of P that allow the block to remain stationary. (b) Describe what happens if absolute value of P has a larger value and what happens if it is smaller. (c) Repeat parts (a) and (b)...
A 20.0 kg block is pushed across a rough surface with a coefficient of kinetic friction...
A 20.0 kg block is pushed across a rough surface with a coefficient of kinetic friction of 0.10. The pushing force is 100.0 N force and is applied at an angle of 35 degrees to the horizontal 1) what is the contact force exerted by the surface on the block? 2) what is the force of friction on the block? 3) what is the acceleration of the block?
A 20 N horizontal force F pushes a block weighing 3.0 N against a vertical wall....
A 20 N horizontal force F pushes a block weighing 3.0 N against a
vertical wall. The coefficient of static friction between the wall
and the block is 0.60, and the coefficient of kinetic friction is
0.40. Assume that the block is not moving initially.
In unit-vector notation, what is the force exerted on the block by
the wall?
(___)N ihad + (____)N jhad
A 20 N horizontal force F pushes a block weighing 3.0 N against a vertical wall....
A block of mass 340 kg is pushed up against a wall by a force P...
A block of mass 340 kg is pushed up against a wall by a force P that makes an angle of อ-50.0° angle with the horizontal as shown below. The coefficient of static friction between the block and the wall is 0.270. for the magnitude of P that allow the block to remain stationary. (f there is no maximum, enter NONE in that answer blank.) (b) what happens if IPi has a larger value than P . The block slides...
A 15 N horizontal force F pushes a block weighing 3.0 N against a vertical wall...
A 15 N horizontal force F pushes a block weighing 3.0 N against a vertical wall (see the figure). The coefficient of static friction between the wall and the block is 0.S9, and the coefficient of kinetic friction ÍS 47. Assume that the block is not moving initially. (a) Will the block move? ( yes. or ro. (b) In unit-vector notation Fx + Fy , what is the force on the block from the wall? (b) Number Unts
A small box is held in place against a rough vertical wall by someone pushing on...
A small box is held in place against a rough vertical wall by someone pushing on it with a force directed upward at 28 degree above the horizontal. The coefficients of static and kinetic friction between the box and wall are 0.40 and 0.30, respectively. The box slides down unless the applied force has magnitude 23 N. What is the mass of the box?
A 10 kg block is pushed against a vertical wall by a horizontal force of 100...
A 10 kg block is pushed against a vertical wall by a
horizontal force of 100 N as shown in the figure the coefficient of
static friction between the block and the wall is 0.60 and the
coefficient of kinetic friction is 0.40 which of the following
statements is true if the block is initially at rest
1) The block slides down the wall with an acceleration of magnitude 3.8 m/s2 The block will slide down the wall because the...
A 8.00 kg block is pressed against a vertical wall by a force (→F), as shown...
A 8.00 kg block is pressed against a vertical wall by a force (→F), as shown in the figure below. The coefficient of static friction between the block and the wall is 0.31 and the directional angle θ for the force is 42.0°. Determine the magnitude of the force (→F) when the block is about to slide down the wall.
Please solve for work done by friction force A 3.0-kg block is dragged over a rough...
Please solve for work done by friction force
A 3.0-kg block is dragged over a rough horizontal surface by a constant force of 16 N acting at an angle of 37degree above the horizontal as shown. The speed of the block increases from 4.0m/s to 6.0m/s in a displacement of 5.0 m. What work was done by the friction force during this displacement?
A person is pushing against a wall while their body is slanted.
The wall is made of smooth ice, therefore it has zero friction. The
floor, however, is made of rough sandstone and as a result, has
coefficients of friction
and
, both of which are non-zero.
Model the person as a uniform one-dimensional
rod of mass m and length L. Their body
makes an angle
relative to the ground as shown.
Known: m, L,
,
,
, g
Note:...
A 20 N horizontal force F pushes a block weighing 3.0 N against a
vertical wall. The coefficient of static friction between the wall
and the block is 0.60, and the coefficient of kinetic friction is
0.40. Assume that the block is not moving initially.
In unit-vector notation, what is the force exerted on the block by
the wall?
(___)N ihad + (____)N jhad
A 20 N horizontal force F pushes a block weighing 3.0 N against a vertical wall....
A block of mass 340 kg is pushed up against a wall by a force P that makes an angle of อ-50.0° angle with the horizontal as shown below. The coefficient of static friction between the block and the wall is 0.270. for the magnitude of P that allow the block to remain stationary. (f there is no maximum, enter NONE in that answer blank.) (b) what happens if IPi has a larger value than P . The block slides...
A 15 N horizontal force F pushes a block weighing 3.0 N against a vertical wall (see the figure). The coefficient of static friction between the wall and the block is 0.S9, and the coefficient of kinetic friction ÍS 47. Assume that the block is not moving initially. (a) Will the block move? ( yes. or ro. (b) In unit-vector notation Fx + Fy , what is the force on the block from the wall? (b) Number Unts
A small box is held in place against a rough vertical wall by someone pushing on it with a force directed upward at 28 degree above the horizontal. The coefficients of static and kinetic friction between the box and wall are 0.40 and 0.30, respectively. The box slides down unless the applied force has magnitude 23 N. What is the mass of the box?
A 10 kg block is pushed against a vertical wall by a
horizontal force of 100 N as shown in the figure the coefficient of
static friction between the block and the wall is 0.60 and the
coefficient of kinetic friction is 0.40 which of the following
statements is true if the block is initially at rest
1) The block slides down the wall with an acceleration of magnitude 3.8 m/s2 The block will slide down the wall because the...
Please solve for work done by friction force
A 3.0-kg block is dragged over a rough horizontal surface by a constant force of 16 N acting at an angle of 37degree above the horizontal as shown. The speed of the block increases from 4.0m/s to 6.0m/s in a displacement of 5.0 m. What work was done by the friction force during this displacement?
