Question 2 For the circuit shown in the figure, &- 18V E = 10V and E...

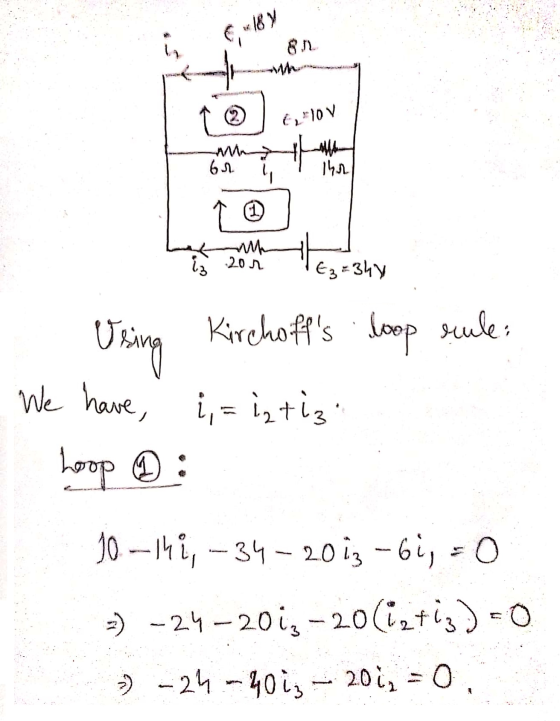

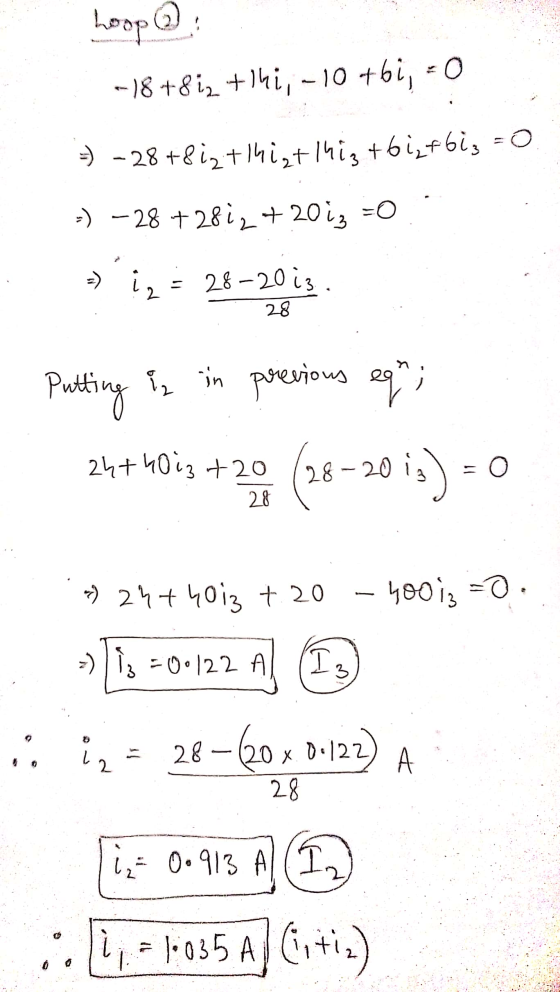

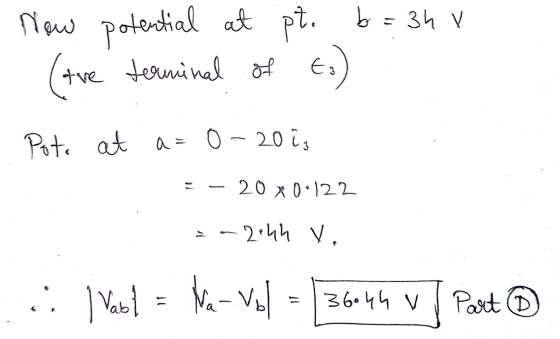

For the circuit shown in the figure, E1 = 17V Ez 20V and E3 = 40V....
For the circuit shown in the figure, E1 = 17V Ez 20V and E3 = 40V. Find (Figure 1) Part A Express your answer using three significant figures. A ? 11 = A Submit Request Answer Part B Express your answer using three significant figures. EVO AED ? 12 = Submit Request Answer Part C Express your answer using three significant figures. Figure < 1 of 1 > EVO AE ? 13 = A E1 812 12 Submit Request Answer...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
For the circuit shown in (Figure 1), assume that E = 19.0 V and RR =...
For the circuit shown in (Figure 1), assume that E = 19.0 V and
RR = 6.30 Ω.
Find the emf E1 in the circuit.
Find the emf E2 in the circuit.
For the circuit shown in (Figure 1), assume that E = 19.0 V and R = 6.30 12. Part A Find the emf Ej in the circuit. Express your answer in volts to three significant figures. OVO ADV * 0 2 ? Figure < 1 of 1 >...
Consider the beam shown in Figure 1). Assume the support at A is red and B...
Consider the beam shown in Figure 1). Assume the support at A is red and B is a roller. Take 20(10) ksi and 24k/ft. The moment of inertia for each segment is shown in the figure Determine they component of reaction at A Express your answer using three significant figures. AED Ivec ? Submit Best Am - Part Determine the moment of reaction A Express your answer using three significant figures. Enter positive value of the moment is counterclockwise and...
Review Constants The voltage applied to the circuit shown in (Figure 1) at t = 0...
Review Constants The voltage applied to the circuit shown in (Figure 1) at t = 0 is 75 cos(4000t -60°) V, where t is in seconds. The circuit resistance is 400 12 and the initial current in the 75 mH inductor is zero. Find the numerical value of i after the switch has been closed for 850 us. Express your answer to two significant figures and include the appropriate units. Value Units Submit Request Answer Figure < 1 of 1...
Consider the beam shown in (Figure 1). EI is constant. Part A Determine the x component...
Consider the beam shown in (Figure 1). EI is constant. Part A Determine the x component of reaction at A. Express your answer using three significant figures. ΟΙ ΑΣΦ | It vec ? Az = k Submit Request Answer Part B Determine the y component of reaction at A. Express your answer using three significant figures. IVO AXO 11 vec ? igure < 1 of 1 Submit Request Answer 3 k/ft 2 k/ft Part C 18 ft 18 ft Determine...
Part A Determine the gain of the inverting amplifier in (Figure 1). Assume the op amp...
Part A Determine the gain of the inverting amplifier in (Figure 1). Assume the op amp is ideal. Express your answer using three significant figures. IVO AXO IT vec ? Figure < 1 of 1 Submit Request Answer 3.3 k2 Part B 3.3k, 3.3k w 3.3k 3.3k w to- If you wish to amplify signals between-2 V and +4 V using the circuit in (Figure 1), what are the smallest power supply voltages you can use? Express your answers using...
Please answer all parts Consider the circuit shown in (Figure 1). Suppose that Ve = 50070°V...
Please answer all parts
Consider the circuit shown in (Figure 1). Suppose that Ve = 50070°V (rms). Express your answer to three significant figures and include the appropriate units. View Available Hint(s) IT HA ? 21 = Value Units Submit Part D Find the average power dissipated in the line when the capacitive reactance is connected across the load. Express your answer to three significant figures and include the appropriate units. THA th ? P- Value Units Submit Request Answer...
<Hw 05 01 Chapter 5 10 of 11 Problem 5.48 Review I Constant Part A The...
<Hw 05 01 Chapter 5 10 of 11 Problem 5.48 Review I Constant Part A The op amp in the noninverting amplifier circuit in (Figure 1) has an input resistance of 400 kn, an output resistance of kn, and an open-loop gain of 20.000 Assume that the op amp is operating in its linear region Calculate the voltage gain (v/v). Express your answer using five significant figures. VAXDvec ? > Figure 1 of 1 Submit Becuest Answer Part 6 NON...
For the circuit shown in the figure, E1 = 17V Ez 20V and E3 = 40V. Find (Figure 1) Part A Express your answer using three significant figures. A ? 11 = A Submit Request Answer Part B Express your answer using three significant figures. EVO AED ? 12 = Submit Request Answer Part C Express your answer using three significant figures. Figure < 1 of 1 > EVO AE ? 13 = A E1 812 12 Submit Request Answer...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
For the circuit shown in (Figure 1), assume that E = 19.0 V and
RR = 6.30 Ω.
Find the emf E1 in the circuit.
Find the emf E2 in the circuit.
For the circuit shown in (Figure 1), assume that E = 19.0 V and R = 6.30 12. Part A Find the emf Ej in the circuit. Express your answer in volts to three significant figures. OVO ADV * 0 2 ? Figure < 1 of 1 >...
Consider the beam shown in Figure 1). Assume the support at A is red and B is a roller. Take 20(10) ksi and 24k/ft. The moment of inertia for each segment is shown in the figure Determine they component of reaction at A Express your answer using three significant figures. AED Ivec ? Submit Best Am - Part Determine the moment of reaction A Express your answer using three significant figures. Enter positive value of the moment is counterclockwise and...
Review Constants The voltage applied to the circuit shown in (Figure 1) at t = 0 is 75 cos(4000t -60°) V, where t is in seconds. The circuit resistance is 400 12 and the initial current in the 75 mH inductor is zero. Find the numerical value of i after the switch has been closed for 850 us. Express your answer to two significant figures and include the appropriate units. Value Units Submit Request Answer Figure < 1 of 1...
Consider the beam shown in (Figure 1). EI is constant. Part A Determine the x component of reaction at A. Express your answer using three significant figures. ΟΙ ΑΣΦ | It vec ? Az = k Submit Request Answer Part B Determine the y component of reaction at A. Express your answer using three significant figures. IVO AXO 11 vec ? igure < 1 of 1 Submit Request Answer 3 k/ft 2 k/ft Part C 18 ft 18 ft Determine...
Part A Determine the gain of the inverting amplifier in (Figure 1). Assume the op amp is ideal. Express your answer using three significant figures. IVO AXO IT vec ? Figure < 1 of 1 Submit Request Answer 3.3 k2 Part B 3.3k, 3.3k w 3.3k 3.3k w to- If you wish to amplify signals between-2 V and +4 V using the circuit in (Figure 1), what are the smallest power supply voltages you can use? Express your answers using...
Please answer all parts
Consider the circuit shown in (Figure 1). Suppose that Ve = 50070°V (rms). Express your answer to three significant figures and include the appropriate units. View Available Hint(s) IT HA ? 21 = Value Units Submit Part D Find the average power dissipated in the line when the capacitive reactance is connected across the load. Express your answer to three significant figures and include the appropriate units. THA th ? P- Value Units Submit Request Answer...
<Hw 05 01 Chapter 5 10 of 11 Problem 5.48 Review I Constant Part A The op amp in the noninverting amplifier circuit in (Figure 1) has an input resistance of 400 kn, an output resistance of kn, and an open-loop gain of 20.000 Assume that the op amp is operating in its linear region Calculate the voltage gain (v/v). Express your answer using five significant figures. VAXDvec ? > Figure 1 of 1 Submit Becuest Answer Part 6 NON...
