Homework Answers
(a) vector A is correctly drawn.
Electric field E is tangential to the force line at any point of force line.
B and C are drawn perpendicular to force lines. E is opposite to force line direcgtion and D is in the field direction but horizontal not tangential to force line.
Hence only A is correct.
Add Answer to:

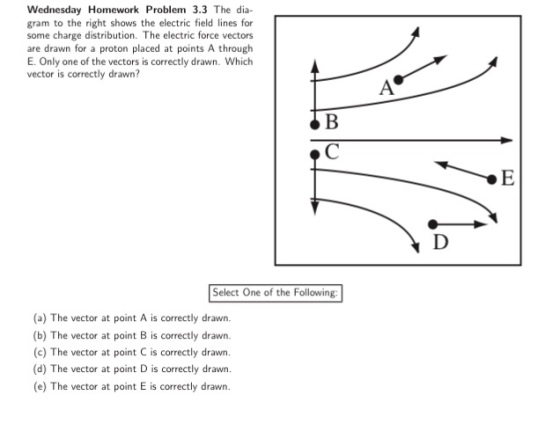

Wednesday Homework Problem 3.3 The dia- gram to the right shows the electric field lines for...
Monday Homework Problem 3.6 The world's largest Van de Graaff generator produces an electric field of...
Monday Homework Problem 3.6 The world's largest Van de Graaff generator produces an electric field of 44 10 at its surface using an electrode that is a sphere of radius 4.5m. How much total charge must be on 4 x 10*8 at its surface using an electrode that is a sphere of radius 4.5m. How much total charge must be on the surface of the sphere to produce this field? Select One of the Following (a) 22 x 10c (b)...
The top left diagram below shows a 1-C positive charge placed in a uniform external electric field. The electric field...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
Homework Problem 2.11 Consider the system of three point charges at the right. All charges are...
Homework Problem 2.11 Consider the system of three point charges at the right. All charges are positive. The center charge has charge +2Q while the other charges each have charge +Q. (a)On a separate sheet of paper, draw the field map of the system of charges at the right using 2 lines per Q. Locate the points A and B as carefully as possible on the your field map +Q +2 (b)At point A draw the electric field vector based...
The picture shows the field lines of a nonuniform electric field and five points A to...
The picture shows the field lines of a nonuniform electric field and five points A to E in the field. Consider the following statements. Which one is true? The electric field strength at point B is larger than at point C. We cannot compare the electric field strengths at points E and C because they are not drawn on the same electric field line. The electric field strength at point C is larger than at point B. This electric field...
The top left diagram below shows a 1-C positive charge placed in a uniform external electric...
The top left diagram below shows a 1-C positive charge placed in a uniform external electric field. The electric field in which the charge is placed is represented by field lines (drawn in red), and the resulting electric force on the charge is represented by the blue vector. Suppose the 1-C charge is removed, and is replaced, in turn, by each of the charges shown in the other three diagrams below. Assuming that the external electric field remains the same,...
The top left diagram below shows a 1-C positive charge placed in a uniform external electric...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
Wednesday Homework Problem 2.4 Ilf the magnitude of the electric field of an infinite plane of...
Wednesday Homework Problem 2.4 Ilf the magnitude of the electric field of an infinite plane of charge at a point 10.0m from the plane is IE) 100.0g, what is the surface charge density ơ? Select One of the Following: (a) 3.12 x 10-C/m2 (b) 1.77 x 10-3C/m2 (c) 8.85 x 10-10C/m2 (d) 1.77 x 10-C/m2 0
Which of the following statements about electric field lines are true? (choose all that are true)...
Which of the following statements about electric field lines are true? (choose all that are true) a) They are only defined for positive charges. b) They are always tangent to electric field vectors. c) They are always perpendicular to charged surfaces. d) They are a simple way to visualize the electric field vectors. e) None of the above. If a negative charge is placed in an electric field, what direction will it be accelerated? a) In the direction of the...
Problem 1a: Velocity Selector: Show that with the right ratio of electric to magnetic field strength...
Problem 1a: Velocity Selector: Show that with the right ratio of electric to magnetic field strength a particle of velocity v will proceed through both fields in a straight line at constant speed (hint: you will need an equation containing v. Also: what does the straight line at constant speed give you?). Assume that the angle of the velocity vector relative to the magnetic field vector is 90 degrees. (15 points) b: Show mathematically that the charge magnitude and sign...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 Incorrect The electric potential (volts) is larger at 'c' than 'e'. Incorrect The net charge Q1+Q2 is negative. Correct The E-field at 'b' points north. Incorrect The E-field at 'c is zero. Correct The E-field at 'b' points directly toward Q2. Incorrect The magnitude of the E-field at 'a'...
Monday Homework Problem 3.6 The world's largest Van de Graaff generator produces an electric field of 44 10 at its surface using an electrode that is a sphere of radius 4.5m. How much total charge must be on 4 x 10*8 at its surface using an electrode that is a sphere of radius 4.5m. How much total charge must be on the surface of the sphere to produce this field? Select One of the Following (a) 22 x 10c (b)...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
Homework Problem 2.11 Consider the system of three point charges at the right. All charges are positive. The center charge has charge +2Q while the other charges each have charge +Q. (a)On a separate sheet of paper, draw the field map of the system of charges at the right using 2 lines per Q. Locate the points A and B as carefully as possible on the your field map +Q +2 (b)At point A draw the electric field vector based...
The picture shows the field lines of a nonuniform electric field and five points A to E in the field. Consider the following statements. Which one is true? The electric field strength at point B is larger than at point C. We cannot compare the electric field strengths at points E and C because they are not drawn on the same electric field line. The electric field strength at point C is larger than at point B. This electric field...
The top left diagram below shows a 1-C positive charge placed in a uniform external electric field. The electric field in which the charge is placed is represented by field lines (drawn in red), and the resulting electric force on the charge is represented by the blue vector. Suppose the 1-C charge is removed, and is replaced, in turn, by each of the charges shown in the other three diagrams below. Assuming that the external electric field remains the same,...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
Wednesday Homework Problem 2.4 Ilf the magnitude of the electric field of an infinite plane of charge at a point 10.0m from the plane is IE) 100.0g, what is the surface charge density ơ? Select One of the Following: (a) 3.12 x 10-C/m2 (b) 1.77 x 10-3C/m2 (c) 8.85 x 10-10C/m2 (d) 1.77 x 10-C/m2 0
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 Incorrect The electric potential (volts) is larger at 'c' than 'e'. Incorrect The net charge Q1+Q2 is negative. Correct The E-field at 'b' points north. Incorrect The E-field at 'c is zero. Correct The E-field at 'b' points directly toward Q2. Incorrect The magnitude of the E-field at 'a'...
