Question

The switch 'S' in the circuit shown in the figure
0 0
Add a comment Improve this question Transcribed image text
Answer #1

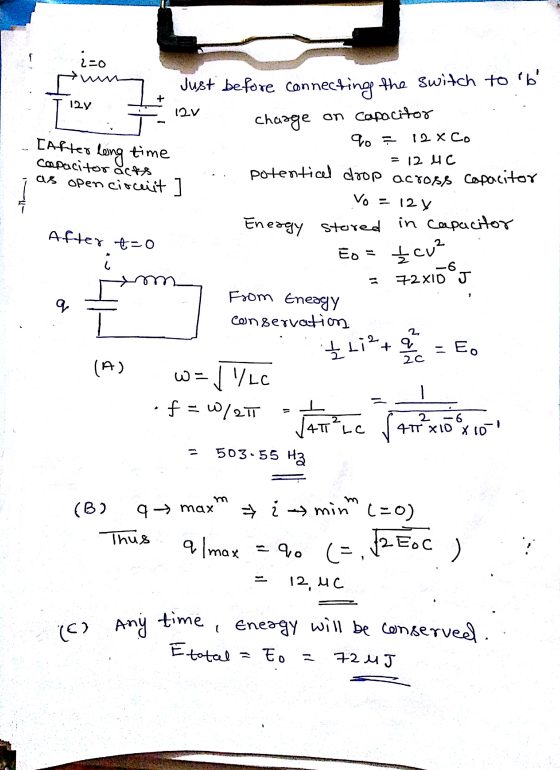

switch to b Just befere cannecting 4ha Љу OV chaage on copoctotr CAFtes Lang time. as ape civciit Foom enmeagy Comervo^iom.

Add a comment
Know the answer?
Add Answer to:
The switch 'S' in the circuit shown in the figure is connected to position 'a' for...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • The switch in the figure below is connected to position a for a long time interval....

    The switch in the figure below is connected to position a for a long time interval. At t = 0, the switch is thrown to position b. After this time, what are the following? (Let C = 1.10 mu F.) (a) the frequency of oscillation of the LC circuit Hz (b) the maximum charge that appears on the capacitor mu C (c) the maximum current in the inductor mA (d) the total energy the circuit possesses at t = 3.00...

  • The switch in the figure below is connected to position a for a long time interval....

    The switch in the figure below is connected to position a for a long time interval. At t = 0, the switch is thrown to position b. After this time, what are the following? (Let C = 1.50 μF) 10.0 Ω a b0.100 H 12.0 (a) the frequency of oscillation of the LC circuit Hz (b) the maximum charge that appears on the capacitor με ur (c) the maximum current in the inductor MA (d) the total energy the circuit...

  • 10. -/10 points My Notes Ask Your Teacher The switch in the figure below is connected...

    10. -/10 points My Notes Ask Your Teacher The switch in the figure below is connected to position a for a long time interval. At t = 0, the switch is thrown to position b. After this time, what are the following? (Let C = 1.20 uF.) 0.100 H 12.0 V Ic (a) the frequency of oscillation of the LC circuit Hz (b) the maximum charge that appears on the capacitor CNC (c) the maximum current in the inductor CamA...

  • the switch in the circuit shown in the figure is first connected to point a for...

    the switch in the circuit shown in the figure is first connected to point a for a long time and then switch is connected to point b. 1-what is the frequency of the oscillation of the circuit 2-what is the maximum charge on the capacitor 3-what is the maximum charge on the inductor 4-what is the total energy in the circuit at t=3 s 10.0 Ω 0.100 H ÷ 12.0V

  • The switch in Figure 2 is connected to position a for a long time interval. When the switch is thrown to position b, what are the expression to determine the frequency of the damped oscillation of the RLC circuit?

    The switch in Figure 2 is connected to position a for a long time interval. When the switch is thrown to position b, what are the expression to determine the frequency of the damped oscillation of the RLC circuit? Applied to the circuit with the circuit consists of a 7.20 Ω risistor, a 12.0 mH inductor, and a 3.20 μF capacitor. In this case, what is the critical resistance for damped oscillations?

  • The circuit shown has components with values of ?=14.0R=14.0 ΩΩ, ?=0.110L=0.110 H, ?=1.25C=1.25 ?μF, and =12E=12...

    The circuit shown has components with values of ?=14.0R=14.0 ΩΩ, ?=0.110L=0.110 H, ?=1.25C=1.25 ?μF, and =12E=12 V.  The switch is initially connected to point ?a for a long time, and then thrown to point ?b, resulting in oscillations. The circuit shown has components with values of R = 14.0 12, L = 0.110 H, C = 1.25 uF, and E = 12 V. The switch is initially connected to point a for a long time, and then thrown to point b,...

  • 10.02 m a 0.2 H s 000 5) Consider the circuit in the figure. For a...

    10.02 m a 0.2 H s 000 5) Consider the circuit in the figure. For a long time prior to time t=0, the switch is in position a, allowing the capacitor to fully charge. a) Find the characteristic time, t, over which the capacitor charged up. b) Find the charge on the capacitor at t= 0. ind the energy stored in the capacitor at 1 = 0. 12.0V 2.0 uF At time t=0, the switch is flipped to position b....

  • The capacitor in the figure shown is initially uncharged and the switch, in position c, is not connected to either side of the circuit.

    The capacitor in the figure shown is initially uncharged and the switch, in position c, is not connected to either side of the circuit. The switch is now flipped to position a for 10 ms, (a) What is voltage difference across the capacitor? (b) then the switch flipped to position b for 10 ms and then brought back to position c. What the final voltage difference across the capacitor?

  • a charged capacitor is connected to an ideal inductur LC circuit with a frequency of oscillation...

    a charged capacitor is connected to an ideal inductur LC circuit with a frequency of oscillation t=1.6HZ at time t=0 the capacitor fully charged at a given instant later charge on the capacitor is measured to be 5.0uC and the current in the circuit is equal to 75uA. what is the maximum charge of the capacitor?

  • In the figure, the battery has an emf of 12.0 V, the inductance is 2.81mH and...

    In the figure, the battery has an emf of 12.0 V, the inductance is 2.81mH and the capacitance is 9.00 pF. The switch has been set to position a for a long time so that the capacitor is charged. The switch is then thrown to position b, removing the battery from the circuit and connecting the capacitor directly across the inductor. a. Find the frequency of oscillation of the circuit. b. What are the maximum values of charge on the...
