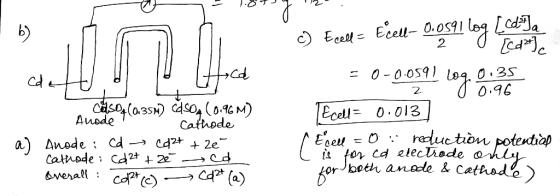

A cell consists of a Cd electrode in a 0.35 M CdSO4 solution & a Cd...
A cell consists of a Cd electrode in a 0.35 M CdSO4 solution & a Cd electrode in a 0.96 M CdSO4 solution.
(a) Write the overall reaction equation.
(b) Write the cell diagram for this reaction.
(c) Calculate the cell potential (Ecell).
Homework Answers
Add Answer to:
A cell consists of a Cd electrode in a 0.35 M CdSO4
solution & a Cd...
3. A student connects a Cd?"(0.20 M)|Cd(s) half-cell to a Cu?"(1 M) Cu(s) electrode. When the...
3. A student connects a Cd?"(0.20 M)|Cd(s) half-cell to a Cu?"(1 M) Cu(s) electrode. When the red lead is attached to the Cu electrode, the cell potential read by the voltmeter, E is +0.77 V. a. What is the reduction half-reaction at the cathode (red lead)? b. What is the oxidation half-reaction at the anode (black lead)? c. What is the overall cell reaction? d. Write the expression for the thermodynamic reaction quotient, Q, and calculate its value for this...
A galvanic (voltaic) cell consists of an electrode composed of magnesium in a 1.0 M magnesium...
A galvanic (voltaic) cell consists of an electrode composed of magnesium in a 1.0 M magnesium ion solution and another electrode composed of copper in a 1.0 M copper(I) ion solution, connected by a salt bridge. Calculate the standard potential for this cell at 25 °C. Refer to the list of standard reduction potentials. Ecell = | 2.46
An electrochemical cell consists of a standard hydrogen electrode and a copper metal electrode. a. What...
An electrochemical cell consists of a standard hydrogen electrode and a copper metal electrode. a. What is the potential of the cell at 25°C if the copper electrode is placed in a solution in which = 3.8 x 10-4 M? Ecell = V b. The copper electrode is placed in a solution of unknown (Cu?+]. The measured potential at 25°C is 0.206 v. What is (cu?+]? (Assume Cu²+ is reduced.) [Cu²+] = M
A voltaic cell consists of two half-cells. One half-cell contains a chromium electrode immersed in 1.00...
A voltaic cell consists of two half-cells. One half-cell contains a chromium electrode immersed in 1.00 M Cr(NO3)3 solution. The second half-cell contains a cobalt electrode immersed in 1.00 M Co(NO3)2 solution. Cobalt plates out on the cobalt electrode as the voltaic cell runs. The beginning voltage of the cell is +0.467 V at 25°C. The standard electrode potential (standard reduction potential) of chromium at 25°C is −0.744 V. (a) Write a balanced half-reaction equation for the reaction occurring at...
A voltaic cell consists of two half-cells. One half-cell contains a chromium electrode immersed in 1.00...
A voltaic cell consists of two half-cells. One half-cell contains a chromium electrode immersed in 1.00 M Cr(NO3)3 solution. The second half-cell contains a nickel electrode immersed in 1.00 M NI(NO3)2 solution. Nickel plates out on the nickel electrode as the voltaic cell runs. The beginning voltage of the cell is +0.487 V at 25°C. The standard electrode potential (standard reduction potential) of chromium at 25°C is -0.744 V. (a) Write a balanced half-reaction equation for the reaction occurring at...
8. A cell consists of two electrodes, with electrode potentials E. and E. Which of the...
8. A cell consists of two electrodes, with electrode potentials E. and E. Which of the following can predict a non-spontaneous cell reaction ? (a) Ecell equals to 0 (c) Ecell is negative (b) Ecell is positive (d) none of these 9. Which of the following can predict that a cell reaction is at equilibrium? (a) Ecell equals to O (c) Ecell is negative (b) Ecell is positive (d) none of these 10. Which one is the Nernst equation, that...
1-One-half of an electrochemical cell consists of a pure Zinc electrode in a solution of Zn2+...
1-One-half of an electrochemical cell consists of a pure Zinc electrode in a solution of Zn2+ ions; the other half is a Lead electrode immersed in a solution of Pb2+ solution. The half-cell potentials for Zinc and Lead are -0.763 V and -0.126 V, respectively. (a) If the cell is a standard one, write the spontaneous overall reaction and calculate the voltage that is generated. (b) Compute the cell potential at 25oC if the Zn2+ and Pb2+ concentrations are 10-2...
A galvanic (voltaic) cell consists of an inert platinum electrode in a solution containing 1.0 M...
A galvanic (voltaic) cell consists of an inert platinum electrode in a solution containing 1.0 M tin(IV) ion and 1.0 M tin(II) ion, and another inert platinum electrode in a solution containing 1.0 M iron(III)ion and 1.0 M iron(II)ion, connected by a salt bridge. Calculate the standard potential for this cell at 25°C. Standard reduction potentials can be found in the standard reduction potentials table. V
A galvanic (voltaic) cell consists of an electrode composed of magnesium in a 1.0 M magnesium...
A galvanic (voltaic) cell consists of an electrode composed of magnesium in a 1.0 M magnesium ion solution and another electrode composed of copper in a 1.0 M copper(I) ion solution, connected by a salt bridge. Calculate the standard potential for this cell at 25 °C. Refer to the list of standard reduction potentials.
A galvanic (voltaic) cell consists of an electrode composed of nickel in a 1.0 M nickel(II)...
A galvanic (voltaic) cell consists of an electrode composed of nickel in a 1.0 M nickel(II) ion solution and another electrode composed of gold in a 1.0 M gold(III) ion solution, connected by a salt bridge. Calculate the standard potential for this cell at 25 °C.
3. A student connects a Cd?"(0.20 M)|Cd(s) half-cell to a Cu?"(1 M) Cu(s) electrode. When the red lead is attached to the Cu electrode, the cell potential read by the voltmeter, E is +0.77 V. a. What is the reduction half-reaction at the cathode (red lead)? b. What is the oxidation half-reaction at the anode (black lead)? c. What is the overall cell reaction? d. Write the expression for the thermodynamic reaction quotient, Q, and calculate its value for this...
A galvanic (voltaic) cell consists of an electrode composed of magnesium in a 1.0 M magnesium ion solution and another electrode composed of copper in a 1.0 M copper(I) ion solution, connected by a salt bridge. Calculate the standard potential for this cell at 25 °C. Refer to the list of standard reduction potentials. Ecell = | 2.46
An electrochemical cell consists of a standard hydrogen electrode and a copper metal electrode. a. What is the potential of the cell at 25°C if the copper electrode is placed in a solution in which = 3.8 x 10-4 M? Ecell = V b. The copper electrode is placed in a solution of unknown (Cu?+]. The measured potential at 25°C is 0.206 v. What is (cu?+]? (Assume Cu²+ is reduced.) [Cu²+] = M
A voltaic cell consists of two half-cells. One half-cell contains a chromium electrode immersed in 1.00 M Cr(NO3)3 solution. The second half-cell contains a nickel electrode immersed in 1.00 M NI(NO3)2 solution. Nickel plates out on the nickel electrode as the voltaic cell runs. The beginning voltage of the cell is +0.487 V at 25°C. The standard electrode potential (standard reduction potential) of chromium at 25°C is -0.744 V. (a) Write a balanced half-reaction equation for the reaction occurring at...
8. A cell consists of two electrodes, with electrode potentials E. and E. Which of the following can predict a non-spontaneous cell reaction ? (a) Ecell equals to 0 (c) Ecell is negative (b) Ecell is positive (d) none of these 9. Which of the following can predict that a cell reaction is at equilibrium? (a) Ecell equals to O (c) Ecell is negative (b) Ecell is positive (d) none of these 10. Which one is the Nernst equation, that...
A galvanic (voltaic) cell consists of an inert platinum electrode in a solution containing 1.0 M tin(IV) ion and 1.0 M tin(II) ion, and another inert platinum electrode in a solution containing 1.0 M iron(III)ion and 1.0 M iron(II)ion, connected by a salt bridge. Calculate the standard potential for this cell at 25°C. Standard reduction potentials can be found in the standard reduction potentials table. V
A galvanic (voltaic) cell consists of an electrode composed of magnesium in a 1.0 M magnesium ion solution and another electrode composed of copper in a 1.0 M copper(I) ion solution, connected by a salt bridge. Calculate the standard potential for this cell at 25 °C. Refer to the list of standard reduction potentials.
