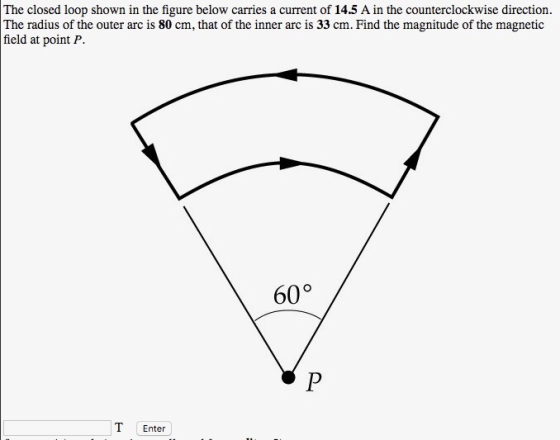

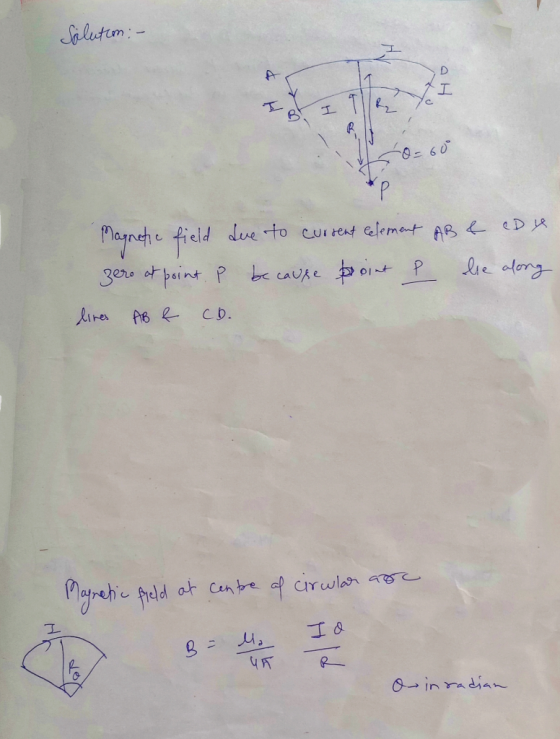

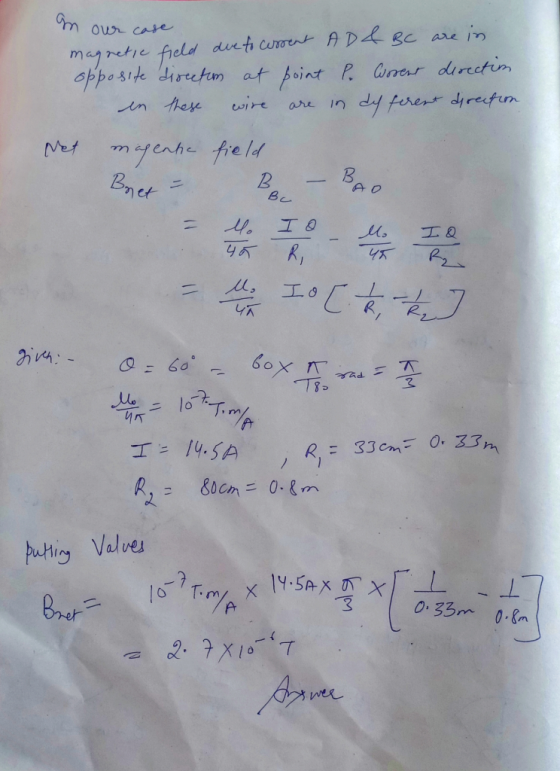

The closed loop shown in the figure below carries a current of 14.5 A in the...
02310.0 points The closed loop shown in the figure carries a current of 8 A in...
02310.0 points The closed loop shown in the figure carries a current of 8 A in the counterclockwise direc- tion. The radius of the outer arc is 60 cm that of the inner arc is 40 cm. Both arcs sub tend an angle of 60 The permeability of free space is 4π 10 Tm/A 60° Find the component of the magnetic field at point O along the r axis. Answer in units of T
Problem 4: The closed loop shown carries a current of 10:=2.00. A. The radius of the...
Problem 4: The closed loop shown carries a current of 10:=2.00. A. The radius of the outer arc is Rout:= 10.0.1 cm, and the inner arc is Rin=3.00.cm. (a) Derive the magnetic field at point P. (b) using your result calculate the magnetic field magnitude and direction in Tesla at the point P. O loop=30.0.deg
Problem 4: The closed loop shown carries a current of 1.:=2.00.A. The radius of the outer...
Problem 4: The closed loop shown carries a current of 1.:=2.00.A. The radius of the outer arc is Rout==10.0•1•cm, and the inner arc is Rin=3.00.cm. (a) Derive the magnetic field at point P. (b) using your result calculate the magnetic field magnitude and direction in Tesla at the point P. O loop :=30.0• deg
Q1. (40 points) The closed loop shown in the figure carries a current of 3.0 A...
Q1. (40 points) The closed loop shown in the figure carries a current of 3.0 A in the clockwise direction. The radius of the outer arc is 0.40 m and spans over an angle of 320°and radius of inner arc is 0.30 m and spans over an angle of 40°. Point P is at the center of both arcs. a) (10 points) Calculate the magnetic field vector at point P due to outer arc. b) (10 points) Calculate the magnetic...
The current loop ABCDA carries current 37.2 A in the direction indicated in the figure, where...
The current loop ABCDA carries current 37.2 A in the direction indicated in the figure, where the segments AB and CD are concentric arcs with radii 7 cm and 11 cm respectively. What is the magnitude of the resultant magnetic field ||B|| at the center of curvature O due to the current segment of arc CD? Answer in units of T.
Two circular current-carrying loops of wire are shown in the drawing. The inner loop has a...
Two circular current-carrying loops of wire are shown in the drawing. The inner loop has a radius of R0 and carries a current I0, while the outer loop has a radius of 2R0 and carries a current of 4I0. The currents are in opposite directions. If R0 = 0.20 m and I0 = 2.3 A, determine the magnitude and direction of the net magnetic field at the center of the two loops.
2. A rectangular loop of wire, with dimensions shown in the figure helow carries a current...
2. A rectangular loop of wire, with dimensions shown in the figure helow carries a current of 2.0 A and is placed in a 0.80 T magnetic field. The magnetic field runs horizontally from left to right in the plane of the paper. The loop rotates in the magnetic field. Assume that the dimensions given in the figure are exact. (a) At one point in its rotation, the loop is perpendicular to the magnetic field. What is the magnitude of...
A loop of wire is in the shape of two concentric semicircles as shown. (Figure 1) The inner circle has radius a; the ou...
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
Consider the long, straight, current-carrying wires shown in Figure 22-42. One wire carries a current of 2.4 A in...
Consider the long, straight, current-carrying wires shown in Figure 22-42. One wire carries a current of 2.4 A in the nega direction; the other wire carries a current of 4.5 A in the positive x direction. 16 cm B 16 cm 16 cm 16 cm 4.5 A Figure 22-42 (a) At which of the two points, A or B, do you expect the magnitude of the net magnetic field to be greater? point A point B same at A and...
Please answer both and I will UpVote 3. A 3-meter long straight wire carries a current...
Please answer both and I will UpVote
3. A 3-meter long straight wire carries a current of 30 A in a uniform magnetic fields of 0.5 T whose direction is at an angle of 45 degrees from the direction of the current. Find the magnitude of the magnetic force acting on the wire. (5 marks total) 4. Two circular wire loops are located inside the same plane, and they have a common centre. The outer loop carries a current of...
02310.0 points The closed loop shown in the figure carries a current of 8 A in the counterclockwise direc- tion. The radius of the outer arc is 60 cm that of the inner arc is 40 cm. Both arcs sub tend an angle of 60 The permeability of free space is 4π 10 Tm/A 60° Find the component of the magnetic field at point O along the r axis. Answer in units of T
Problem 4: The closed loop shown carries a current of 10:=2.00. A. The radius of the outer arc is Rout:= 10.0.1 cm, and the inner arc is Rin=3.00.cm. (a) Derive the magnetic field at point P. (b) using your result calculate the magnetic field magnitude and direction in Tesla at the point P. O loop=30.0.deg
Problem 4: The closed loop shown carries a current of 1.:=2.00.A. The radius of the outer arc is Rout==10.0•1•cm, and the inner arc is Rin=3.00.cm. (a) Derive the magnetic field at point P. (b) using your result calculate the magnetic field magnitude and direction in Tesla at the point P. O loop :=30.0• deg
Q1. (40 points) The closed loop shown in the figure carries a current of 3.0 A in the clockwise direction. The radius of the outer arc is 0.40 m and spans over an angle of 320°and radius of inner arc is 0.30 m and spans over an angle of 40°. Point P is at the center of both arcs. a) (10 points) Calculate the magnetic field vector at point P due to outer arc. b) (10 points) Calculate the magnetic...
The current loop ABCDA carries current 37.2 A in the direction indicated in the figure, where the segments AB and CD are concentric arcs with radii 7 cm and 11 cm respectively. What is the magnitude of the resultant magnetic field ||B|| at the center of curvature O due to the current segment of arc CD? Answer in units of T.
2. A rectangular loop of wire, with dimensions shown in the figure helow carries a current of 2.0 A and is placed in a 0.80 T magnetic field. The magnetic field runs horizontally from left to right in the plane of the paper. The loop rotates in the magnetic field. Assume that the dimensions given in the figure are exact. (a) At one point in its rotation, the loop is perpendicular to the magnetic field. What is the magnitude of...
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
Consider the long, straight, current-carrying wires shown in Figure 22-42. One wire carries a current of 2.4 A in the nega direction; the other wire carries a current of 4.5 A in the positive x direction. 16 cm B 16 cm 16 cm 16 cm 4.5 A Figure 22-42 (a) At which of the two points, A or B, do you expect the magnitude of the net magnetic field to be greater? point A point B same at A and...
Please answer both and I will UpVote
3. A 3-meter long straight wire carries a current of 30 A in a uniform magnetic fields of 0.5 T whose direction is at an angle of 45 degrees from the direction of the current. Find the magnitude of the magnetic force acting on the wire. (5 marks total) 4. Two circular wire loops are located inside the same plane, and they have a common centre. The outer loop carries a current of...
