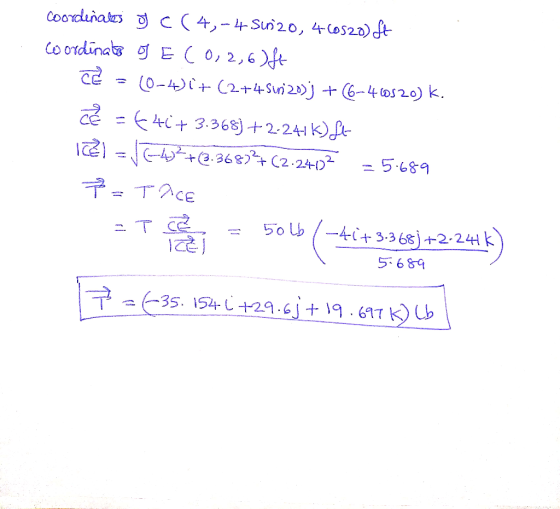

A 50-lb force T is applied by the cable shown (directed along the line from C...
CE 1301 Civil Engineering Fundamentals <2.7-8 Position Vectors & Force directed along a line Item T...
CE 1301 Civil Engineering Fundamentals <2.7-8 Position Vectors & Force directed along a line Item T Learning Goal: Aa shown, force vector F wth a c28.0 lb is applied at point A and is directed toward point Cue 1) The dstlance a is 400 t and the To find a force's directional components that act along a cable and to fied the coordinales of a point on a cable that has a force vector applied to t Express your answers...
show steps Force Vector Directed along a Line Learning Goal: To find a force's directional components...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
Solve all parts thanks <Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force...
Solve all parts
thanks
<Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force vectors are used throughout engineering mechanics. The generic force vector is represented as follows: F= F,i+Fyj + F kwhere F is the force vector and Fr, Fy, and F, are the vector's i, j, and k components, respectively. The force vector has a magnitude F F2 +F3 + F2. The vector's I 1 Figure < 1 of 2 > C 13/12 5 F =...
part B orce Vector Directed along a Line 24 cf 51 Part A Learning Goal: To find a foroe's directional co...
part B
orce Vector Directed along a Line 24 cf 51 Part A Learning Goal: To find a foroe's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to t As shown, a force vector F with a magritude of ca 430 lb is appied at point A and is directed toward point C. (Flqure 1) The distance a is 7.50 ft and the distance...
Knowing that angle = 55 and that boom AC exerts on pin C a force directed along line AC,...
Knowing that angle = 55 and that boom AC exerts on pin C a force directed along line AC, determine (a) the magnitude of that force, (b) the tension in cable BC.
4. If the 50 lb force is normal to the line BC and in a plane...
4. If the 50 lb force is normal to the line BC and in a plane parallel to x-z, find the moment created about point O and the component of this moment along axis O-A. N - - - B 150 50 lb
3. Knowing that a=50°and that boom AC exerts on pin C a force directed along linc...
3. Knowing that a=50°and that boom AC exerts on pin C a force directed along linc AC, determine (a) the magnitude of the force in boom AC (b) the tension in cable BC. (3 points) 300 IL
for problem 2, part b, perpendocular to rod ABC not ABD! Problem 1. The force P is applied to the cable at the frict...
for problem 2, part b, perpendocular to rod ABC not
ABD!
Problem 1. The force P is applied to the cable at the frictionless pulley C to hold the 1200N weight in the equilibrium position shown in the figure. Determine: (a) the magnitude of the force P, (b) tension in cable AB, and (c) tension in cable BC, Please draw the free body diagram of the particle under consideration clearly. B 28 200N Problem 2. A force F of magnitude...
it is desired to remove the spike from the timber by applying force along its horizontal axis,
It is desired to remove the spike from the timber by applying force along its horizontal axis. An obstruction \(A\) prevents direct access, so that two forces, one \(370 \mathrm{lb}\) and the other \(\mathbf{P}\), are applied by cables as shown. Compute the magnitude of \(\mathbf{P}\) necessary to ensure a resultant \(\mathbf{T}\) directed along the spike. Also find \(T\).
Question 3 A turnbuckle (Figure Q3) is tightened until the tension T in the cable AB...
Question 3 A turnbuckle (Figure Q3) is tightened until the tension T in the cable AB is 2.4 kN. 2 m 0.8 m Figure Q3: Turnbuckle and cable. Write down the coordinates (in metres relative to the origin) of the points labelled O, A and B. (a) [2 Marks] (b) Express the tension T in terms of the Cartesian component vectors Lj and A 3 Marks] (c) Determine the moment Mo about the base O of the cable force acting...
CE 1301 Civil Engineering Fundamentals <2.7-8 Position Vectors & Force directed along a line Item T Learning Goal: Aa shown, force vector F wth a c28.0 lb is applied at point A and is directed toward point Cue 1) The dstlance a is 400 t and the To find a force's directional components that act along a cable and to fied the coordinales of a point on a cable that has a force vector applied to t Express your answers...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
Solve all parts
thanks
<Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force vectors are used throughout engineering mechanics. The generic force vector is represented as follows: F= F,i+Fyj + F kwhere F is the force vector and Fr, Fy, and F, are the vector's i, j, and k components, respectively. The force vector has a magnitude F F2 +F3 + F2. The vector's I 1 Figure < 1 of 2 > C 13/12 5 F =...
part B
orce Vector Directed along a Line 24 cf 51 Part A Learning Goal: To find a foroe's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to t As shown, a force vector F with a magritude of ca 430 lb is appied at point A and is directed toward point C. (Flqure 1) The distance a is 7.50 ft and the distance...
4. If the 50 lb force is normal to the line BC and in a plane parallel to x-z, find the moment created about point O and the component of this moment along axis O-A. N - - - B 150 50 lb
3. Knowing that a=50°and that boom AC exerts on pin C a force directed along linc AC, determine (a) the magnitude of the force in boom AC (b) the tension in cable BC. (3 points) 300 IL
for problem 2, part b, perpendocular to rod ABC not
ABD!
Problem 1. The force P is applied to the cable at the frictionless pulley C to hold the 1200N weight in the equilibrium position shown in the figure. Determine: (a) the magnitude of the force P, (b) tension in cable AB, and (c) tension in cable BC, Please draw the free body diagram of the particle under consideration clearly. B 28 200N Problem 2. A force F of magnitude...
Question 3 A turnbuckle (Figure Q3) is tightened until the tension T in the cable AB is 2.4 kN. 2 m 0.8 m Figure Q3: Turnbuckle and cable. Write down the coordinates (in metres relative to the origin) of the points labelled O, A and B. (a) [2 Marks] (b) Express the tension T in terms of the Cartesian component vectors Lj and A 3 Marks] (c) Determine the moment Mo about the base O of the cable force acting...
