Homework Answers
Add Answer to:

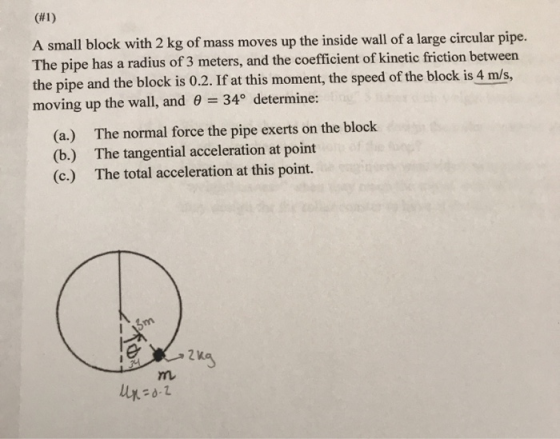

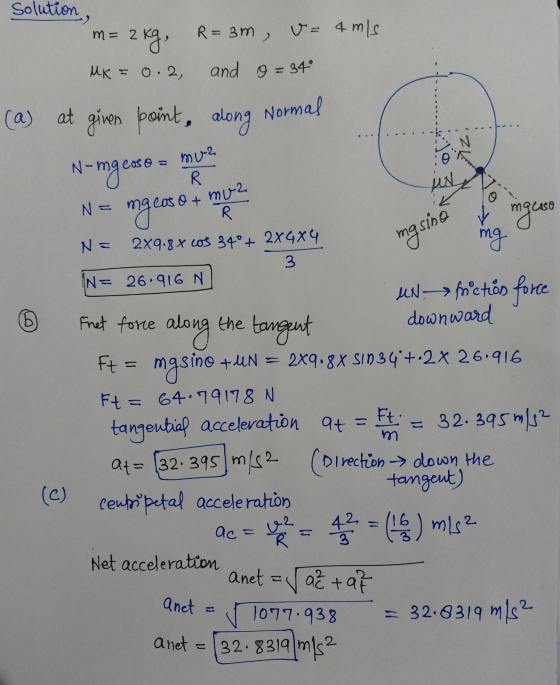

(#1) A small block with 2 kg of mass moves up the inside wall of a...
Circular motion, vertical surface with kinetic friction: A small block of mass 2.0 kg slides on...
Circular motion, vertical surface with kinetic friction: A small block of mass 2.0 kg slides on a horizontal frictionless surface as it travels around the inside of a hoop of radius R 0.50 m. A view from above is shown. The coefficient of friction between the block and the hoop wall is 0.20. Therefore, the block is slowing down. a) Draw a free body diagram for the block in the position shown (you do not need to include forces perpendicular...
A 2.74 kg block is pushed 1.41 m up a vertical wall with a constant speed...
A 2.74 kg block is pushed 1.41 m up a vertical wall with a
constant speed by a constant force of magnitude F applied at an
angle of 66.3 with the horizontal. The acceleration of gravity is
9.8 m/s2. If the coefficient of kinetic friction between the block
and wall 0.415, find the work done by F.
A 2.74 kg block is pushed 1.41 m up a vertical wall with a constant speed by a constant force of magnitude F...
A large rough ramp is inclined φ=35 degrees above the horizontal. A block of mass m...
A large rough ramp is inclined φ=35 degrees above the horizontal. A block of mass m = 5 kg is sliding on the board and the coefficient of kinetic friction between the block and the ramp is μk=0.3 . The block is tied to a string of length L = 0.25 meters so that the block moves about a circular trajectory. HINT: I'd recommend drawing the FBDs from a side-view. a) Draw a complete FBD of the block at the...
A small block with mass 0.0475 kg slides in a vertical circle of radius 0.0730 m...
A small block with mass 0.0475 kg slides in a vertical circle of radius 0.0730 m on the inside of a circular track. There is no friction between the track and the block. At the bottom of the block's path, the normal force the track exerts on the block has magnitude 3.70 N. What is the magnitude of the normal force that the track exerts on the block when it is at the top of its path?
A 2.00-kg block is tied to a wall and placed on top of a 5.00-kg block,...
A 2.00-kg block is tied to a wall and placed on top of a 5.00-kg block, as shown. A horizontal force of 55.0 N is applied to the 5.00-kg block. There is a coefficient of kinetic friction of 0.250 between all moving surfaces. Determine (a) the tension in the string and (b) the acceleration of the 5.00-kg block. ANSWER IS: a) 4.90 N; (b) –6.59 m/s2
A small block with mass 0.0500 kg slides in a vertical circle of radius 0.0760 m...
A small block with mass 0.0500 kg slides in a vertical circle of
radius 0.0760 m on the inside of a circular track. There is no
friction between the track and the block. At the bottom of the
block's path, the normal force the track exerts on the block has
magnitude 3.70 N
Part A: What is the magnitude of the normal force that the track
exerts on the block when it is at the top of its path?
HW...
A 10 kg block is pushed against a vertical wall by a horizontal force of 100...
A 10 kg block is pushed against a vertical wall by a
horizontal force of 100 N as shown in the figure the coefficient of
static friction between the block and the wall is 0.60 and the
coefficient of kinetic friction is 0.40 which of the following
statements is true if the block is initially at rest
1) The block slides down the wall with an acceleration of magnitude 3.8 m/s2 The block will slide down the wall because the...
5. A block of mass 23 kg moves up a 34° inclined plane by being pulled...
5. A block of mass 23 kg moves up a 34° inclined plane by being pulled by a string attached to a hanging 45 kg mass across a frictionless pulley. There is a coefficient of friction of .2 for the surface and the 23 kg mass. Find the acceleration in m/s2 A) 10.35 m/s2 B) 8.69 m/s2 C) 4.082 m/s2 D) 2.346 m/s E) 3.105 m/s
A block of 3 kg is moving up on a ramp (by initial push). The angle...
A block of 3 kg is moving up on a ramp (by initial push). The angle of the ramp is 40 degrees. The coefficient of kinetic friction is 0.25. Calculate the acceleration of the object.
a 20 kg block moves on a horizontal surface. A force F that has a magnitude...
a 20 kg block moves on a horizontal surface. A force F that has a magnitude 80 N and direction 30.0 above the horizontal acts on the the block and the block slides along the surface. If the coefficient of kinetic friction between the block and the surface is Uk=20, what is the magnitude of the friction force that the surface exerts on the block?
Circular motion, vertical surface with kinetic friction: A small block of mass 2.0 kg slides on a horizontal frictionless surface as it travels around the inside of a hoop of radius R 0.50 m. A view from above is shown. The coefficient of friction between the block and the hoop wall is 0.20. Therefore, the block is slowing down. a) Draw a free body diagram for the block in the position shown (you do not need to include forces perpendicular...
A 2.74 kg block is pushed 1.41 m up a vertical wall with a
constant speed by a constant force of magnitude F applied at an
angle of 66.3 with the horizontal. The acceleration of gravity is
9.8 m/s2. If the coefficient of kinetic friction between the block
and wall 0.415, find the work done by F.
A 2.74 kg block is pushed 1.41 m up a vertical wall with a constant speed by a constant force of magnitude F...
A small block with mass 0.0500 kg slides in a vertical circle of
radius 0.0760 m on the inside of a circular track. There is no
friction between the track and the block. At the bottom of the
block's path, the normal force the track exerts on the block has
magnitude 3.70 N
Part A: What is the magnitude of the normal force that the track
exerts on the block when it is at the top of its path?
HW...
A 10 kg block is pushed against a vertical wall by a
horizontal force of 100 N as shown in the figure the coefficient of
static friction between the block and the wall is 0.60 and the
coefficient of kinetic friction is 0.40 which of the following
statements is true if the block is initially at rest
1) The block slides down the wall with an acceleration of magnitude 3.8 m/s2 The block will slide down the wall because the...
5. A block of mass 23 kg moves up a 34° inclined plane by being pulled by a string attached to a hanging 45 kg mass across a frictionless pulley. There is a coefficient of friction of .2 for the surface and the 23 kg mass. Find the acceleration in m/s2 A) 10.35 m/s2 B) 8.69 m/s2 C) 4.082 m/s2 D) 2.346 m/s E) 3.105 m/s
