20 - 10 2020- -capacitive In a series RLC circuit, when the impedance of circuit is...

Question

Question

science physics

Answer 1

Answer #1

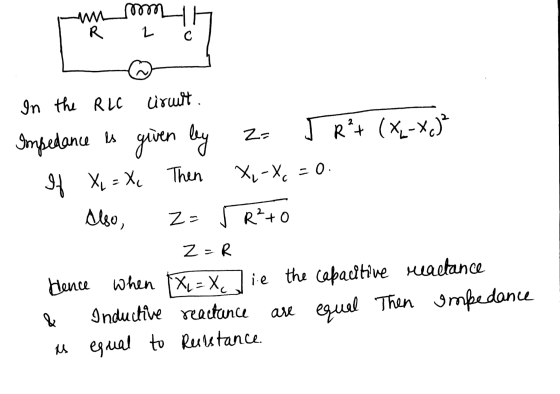

ww som to R 2 с In the RLC ciruit. Z- JR+ (x2-x) Impedance is given given by X = X Then XL-X, -0. If Also, Z=5R²+0 z = R Henc ,

Answer 2

Similar Homework Help Questions

When the frequency is twice the resonant frequency, the impedance of a series RLC circuit is...

When the frequency is twice the resonant frequency, the impedance of a series RLC circuit is three times the value of the impedance at resonance. Obtain the ratios of the inductive and capacitive reactances to the resistance (XL/R and XC/R) when the frequency is twice the resonant frequency.
a) At which frequency range is impedance of series RC circuit predominantly capacitive, predominantly resistive, and...

a) At which frequency range is impedance of series RC circuit predominantly capacitive, predominantly resistive, and when are both capacitive and resistive effects equal? b) At which frequency range is impedance of parallel RC circuit predominantly capacitive, predominantly resistive, and when are both capacitive and resistive effects equal? c) At which frequency range is impedance of series RL circuit predominantly inductive, predominantly resistive, and when are both inductive and resistive effects equal? d) At which frequency range is impedance of...
A RLC circuit is driven by an AC source of 120volts with frequency 60H_z. The resistance...

A RLC circuit is driven by an AC source of 120volts with frequency 60H_z. The resistance is 2000 Ohm, the capacitance is 500 mu F, and the inductance is 100_m M. Find the inductive reactance, The capacitive reactance, the impedance, the current, and the resonant frequency.

For a particular RLC series circuit, the capacitive reactance is 5.35, the inductive reactance is 46.7,...

For a particular RLC series circuit, the capacitive reactance is 5.35, the inductive reactance is 46.7, and the maximum voltage across the 94.5 resistor is 36.7 V. What is the maximum voltage across the circuit?
Select the CORRECT statement about a series RLC circuit: Question 6 options: At resonance, the total...

Select the CORRECT statement about a series RLC circuit: Question 6 options: At resonance, the total reactance and total resistance are equal. The impedance at resonance is only due to the capacitive reactance. The impedance at resonance is at maximum. The current flowing in the circuit at resonance is at maximum. The impedance at resonance is only due to the inductive reactance.
Question 1 1 pts When an RLC series circuit is in resonance, its impedance is: O...

Question 1 1 pts When an RLC series circuit is in resonance, its impedance is: O equal to its resistance. O at maximum. O negative. O zero. Question 2 1 pts Consider an AC series circuit containing a coil, capacitor and resistance. Tripling the frequency will change the inductive reactance by what factor? O 1 3 O 1/3 O 1.73 Question 3 1 pts The power factor in an AC series circuit is equal to which of the following ratios?...

Consider an RLC circuit where a resistor (R = 35.0 Ω), capacitor (C = 15.5 μF),...

Consider an RLC circuit where a resistor (R = 35.0 Ω), capacitor (C = 15.5 μF), and inductor (L = 0.0940 H) are connected in series with an AC source that has a frequency of 80.0 Hz. a. Determine the capacitive reactance at this frequency. b. Determine the inductive reactance at this frequency. c. Determine the total impedance. d. Determine the phase angle. e. Determine the circuit’s resonant frequency.
A series RLC circuit has a capacitive reactance of 16 Ω and an inductive reactance of...

A series RLC circuit has a capacitive reactance of 16 Ω and an inductive reactance of 4.0 Ω at 30 Hz. What frequency would result in resonance for this circuit?
For a particular RLC series circuit, the capacitive reactance is 4.35 Ω, the inductive reactance is...

For a particular RLC series circuit, the capacitive reactance is 4.35 Ω, the inductive reactance is 37.5 Ω, and the maximum voltage across the 57.1-Ω resistor is 26.1 V. What is the maximum voltage across the circuit?

For a particular RLC series circuit, the capacitive reactance is 6.85 Ω, the inductive reactance is...

For a particular RLC series circuit, the capacitive reactance is 6.85 Ω, the inductive reactance is 36.7 Ω, and the maximum voltage across the 92.5-Ω resistor is 35.1 V. What is the maximum voltage across the circuit?
