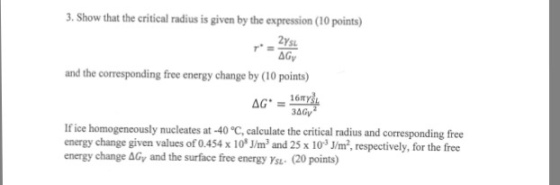

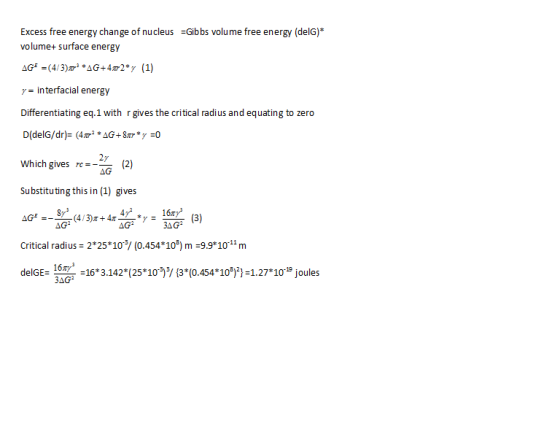

Show that the critical radius is given by the expression r* = 2gamma_SL/ G_gamma and the...
If ice homogeneously nudeates at-28.5 ℃ calculate the critical radius given values of-31x 108 l/m3 and...
If ice homogeneously nudeates at-28.5 ℃ calculate the critical radius given values of-31x 108 l/m3 and 25 x 10-3 נ/m2, respectively, for
(a) For the solidification of pure gold compute the critical radius r and the activation energy...
(a) For the solidification of pure gold compute the critical radius r and the activation energy AG* if nucleation is homogeneous. Values for the latent heat of fusion and surface energy are -1.16x109 J/m3 and 0.132 J/m2 respectively. AT for gold is 230°c from Table 11.1, Tm for gold is 1064°C (b) Calculate the number of atoms found in a nucleus of critical size. Assume a lattice parameter of 0.413 nm for solid gold at its melting temperature.
(a) For...
4. (a) Compute the critical radius and the activation free energy for the solidification of a...
4. (a) Compute the critical radius and the activation free energy for the solidification of a metal if nucleation is homogeneous. It is given that the latent heat of fusion and surface free energy are -3.53*10^9 J/ m^3 and 0.255 J/m^2, respectively. The melting temperature of this metal is 1455 degrees Celsius and the supercooling value 329K. b) Now calculate the number of atoms found in a nucleus of critical size. Assume a lattice parameter of 0.360 nm for solid...
Calculate the critical radius (in centimeter) of a homogeneous nucleus that forms when pure liquid copper...
Calculate the critical radius (in centimeter) of a homogeneous nucleus that forms when pure liquid copper solidifies. Assume Delta T (under cooling) =0.2T_m. Where T_m=1083 degree C. Values for the latent heat of fusion and surface free energy are 1826 J/cm^3 and 177 times 10^-7 J/cm^2, respectively. Calculate the number of atoms in the critical sized nucleus at this under cooling. Copper has FCC crystal structure. Assume a lattice parameter of 0.361 nm for solid copper at its melting temperature
Consider the expression for potential energy at the surface of a spherical mass GMm R. Р.Е....
Consider the expression for potential energy at the surface of a spherical mass GMm R. Р.Е. where M is the mass and R is the radius of the spherical mass, and m is the mass of some object at the surface. Show that the difference between this potential and that of an object a distance h above the surface is mgh, where g is a constant that is the same for any m or h. Derive an expression for g...
12) For the solidification of iron, values for the latent heat of fusion and surface free...
12) For the solidification of iron, values for the latent heat of fusion and surface free energy are -1.85 x 109 J/m and 0.204 J/m², respectively. The amount of supercooling is 295 K. The melting temperature of iron is 1538°C. a. calculate the critical radius r* if nucleation is homogeneous (10 points). b. calculate the number of atoms found in a nucleus of critical size. Assume a lattice parameter of 0.292 nm for solid iron at its melting temperature (20...
4. Nickel has normal free energy (surface tension) of 2.69 /m2 s a normal melting point of 1455 "C, enthalpy of fusion of +17.47 kJ/m, and surface a. Calculate the critical radius of n...
4. Nickel has normal free energy (surface tension) of 2.69 /m2 s a normal melting point of 1455 "C, enthalpy of fusion of +17.47 kJ/m, and surface a. Calculate the critical radius of nickel (in nm) at 1000 C. (2p) 2(2(28k) (17.47 : 117 XOA b. Assunning ΔGTisnegative, whatdoes negativeAhmeanfortheformation ofstablenucles? Explain. (Ip) 5. Utilizing the lead-tin phase diagram: For a 60 wr% Sn-40 wt% Pb alloy at 150 °C: a. What phase(s) is (are present? (Ip) 2 piases Present...
12. (5 points) A speedway turn, with radius of curvature R, is banked at an angle 0 above the horizontal. If the track surface is ice-free and R 450.0 m, there is a coefficient of friction ,,-0.6...
12. (5 points) A speedway turn, with radius of curvature R, is banked at an angle 0 above the horizontal. If the track surface is ice-free and R 450.0 m, there is a coefficient of friction ,,-0.65 between the tires and the track, and the 3-450°, what are the m n speeds at which this turn can be taken? 13. (10 points) Rolling down problem. Start from rest Final speed A spherical shell of mass M-0.5 kg and radius R-0.5m...
Calculate ? and ? at r = 5 m, given the presence, in free space, of...
Calculate ? and ? at r = 5 m, given the presence, in free space, of two charges distributions. The distributions are on the surface of the concentric spheres, centered in the origin, with respectively radius ?1 = 1 m and ??1 = 12 mC/m and radius ?2 = 3 m and ??1 = −5 mC/m. Drawing a sketch will help you.
Q3. For the system in Figure 3 where and θ2 are the rotational angles, and are the rotary inertias of the two disks with radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total pot...
Q3. For the system in Figure 3 where and θ2 are the rotational angles, and are the rotary inertias of the two disks with radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total potential energy and Lagrangian in terms of, and (2) Derive the equations of motion using Lagrangian equation method, (3) Put the equations of motion in matrix form, and (4) Calculate the natural frequencies and the associated mode shapes if m-30 g, 4-8 x...
If ice homogeneously nudeates at-28.5 ℃ calculate the critical radius given values of-31x 108 l/m3 and 25 x 10-3 נ/m2, respectively, for
(a) For the solidification of pure gold compute the critical radius r and the activation energy AG* if nucleation is homogeneous. Values for the latent heat of fusion and surface energy are -1.16x109 J/m3 and 0.132 J/m2 respectively. AT for gold is 230°c from Table 11.1, Tm for gold is 1064°C (b) Calculate the number of atoms found in a nucleus of critical size. Assume a lattice parameter of 0.413 nm for solid gold at its melting temperature.
(a) For...
Calculate the critical radius (in centimeter) of a homogeneous nucleus that forms when pure liquid copper solidifies. Assume Delta T (under cooling) =0.2T_m. Where T_m=1083 degree C. Values for the latent heat of fusion and surface free energy are 1826 J/cm^3 and 177 times 10^-7 J/cm^2, respectively. Calculate the number of atoms in the critical sized nucleus at this under cooling. Copper has FCC crystal structure. Assume a lattice parameter of 0.361 nm for solid copper at its melting temperature
Consider the expression for potential energy at the surface of a spherical mass GMm R. Р.Е. where M is the mass and R is the radius of the spherical mass, and m is the mass of some object at the surface. Show that the difference between this potential and that of an object a distance h above the surface is mgh, where g is a constant that is the same for any m or h. Derive an expression for g...
12) For the solidification of iron, values for the latent heat of fusion and surface free energy are -1.85 x 109 J/m and 0.204 J/m², respectively. The amount of supercooling is 295 K. The melting temperature of iron is 1538°C. a. calculate the critical radius r* if nucleation is homogeneous (10 points). b. calculate the number of atoms found in a nucleus of critical size. Assume a lattice parameter of 0.292 nm for solid iron at its melting temperature (20...
4. Nickel has normal free energy (surface tension) of 2.69 /m2 s a normal melting point of 1455 "C, enthalpy of fusion of +17.47 kJ/m, and surface a. Calculate the critical radius of nickel (in nm) at 1000 C. (2p) 2(2(28k) (17.47 : 117 XOA b. Assunning ΔGTisnegative, whatdoes negativeAhmeanfortheformation ofstablenucles? Explain. (Ip) 5. Utilizing the lead-tin phase diagram: For a 60 wr% Sn-40 wt% Pb alloy at 150 °C: a. What phase(s) is (are present? (Ip) 2 piases Present...
12. (5 points) A speedway turn, with radius of curvature R, is banked at an angle 0 above the horizontal. If the track surface is ice-free and R 450.0 m, there is a coefficient of friction ,,-0.65 between the tires and the track, and the 3-450°, what are the m n speeds at which this turn can be taken? 13. (10 points) Rolling down problem. Start from rest Final speed A spherical shell of mass M-0.5 kg and radius R-0.5m...
Q3. For the system in Figure 3 where and θ2 are the rotational angles, and are the rotary inertias of the two disks with radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total potential energy and Lagrangian in terms of, and (2) Derive the equations of motion using Lagrangian equation method, (3) Put the equations of motion in matrix form, and (4) Calculate the natural frequencies and the associated mode shapes if m-30 g, 4-8 x...
