Consider the frame shown in (Figure 1). Suppose that F1 = 4 kN . Determine the...

Question

Question

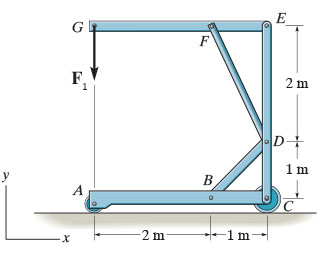

Consider the frame shown in (Figure 1). Suppose that

F1 = 4 kN . Determine the magnitude of the force in member FD.

Determine the magnitude of the force in member DB.

Determine the x and y components of reaction the pin C exerts on member ABC using scalar notation.

Determine the x and y components of reaction the pin C exerts on member EDC using scalar notation.

2 m 1 m

engineering Mechanical-Engineering

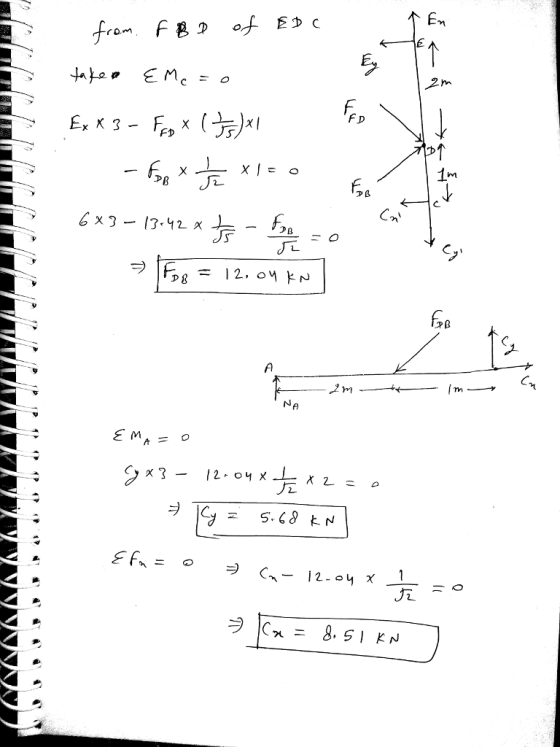

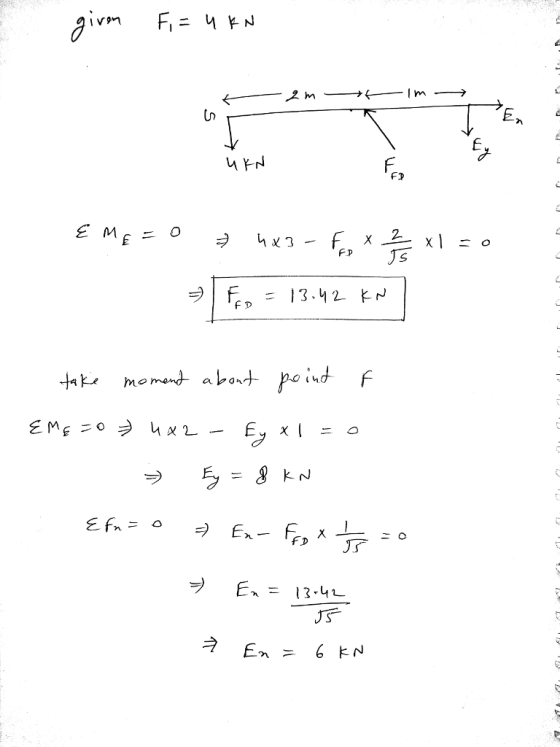

Answer 1

Answer #1

Answer 2
