When start button is pressed than coil MCR get charged and NO contact of MCR changes to NC.
Hold on contact in parallel to start will get NC and coil MCR will be charged always even start button gets released.
The MCR contact in series with light get NC and the light will glow up.

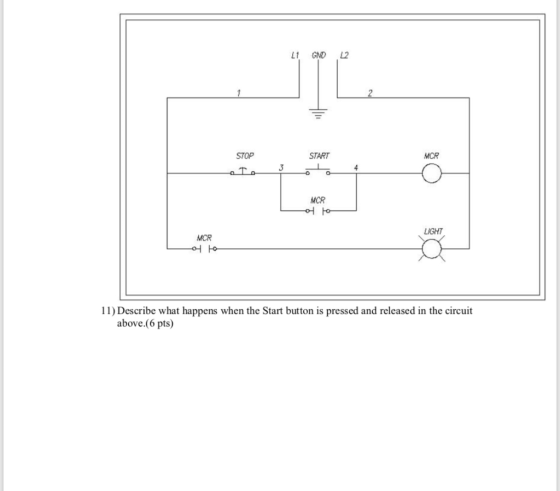

STOP START MCR MCR LIGHT MCR 11) Describe what happens when the Start button is pressed...
