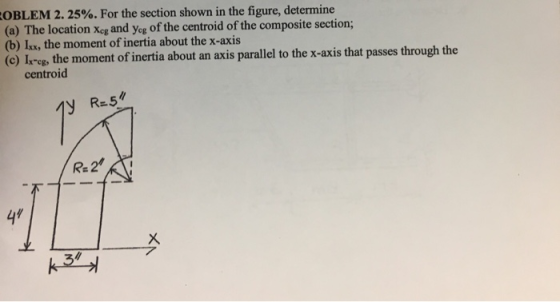

OBLEM 2. 25%. For the section shown in the figure, determine (a) The location Xog and...
Homework No. 24 oblem 10.51 5 of 5 Consider the beam shown in (Figure 1). Suppose...
Homework No. 24 oblem 10.51 5 of 5 Consider the beam shown in (Figure 1). Suppose that a= 130 mm, b= 35 mm, and r=190 mm Part A axis passing Determine the moment of inertia for the beam's cross-sectional area about the through the centroid C of the cross section Express your answer to three significant figures and include the appropriate units. LValue Units Submit Request Answer < Return to Assignment Provide Feedback gure 1of1 ? 45°
Consider the area shown in Figure 4. Determine; a) The 2nd Moment of Area (Ix and...
Consider the area shown in Figure 4. Determine; a) The 2nd Moment of Area (Ix and ly) about the axis system shown. b) The Polar Moment of Inertia (Jo) about point O. c) The 2nd Moment of Area (lx and ly) about an axis system that runs through the centroid of the area and the Polar Moment of Inertia (Jo) about the centroid of the area. [5+3+5 = 13 marks] 100 mm-100 mm 150 mm 150 mm 150 mm 75...
Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis....
Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis. When b = 24", determine (a) the coordinates of the centroid (x, y), and (b) the moment of inertial about the centroidal axis x! The centroidal axis x'is parallel to x- axis and crosses through (X,Y). Upload Choose a File
4. (25 pt.) The beam subjected to a uniform distributed load as shown in Figure 4(a)...
4. (25 pt.) The beam subjected to a uniform distributed load as shown in Figure 4(a) has a triangular cross-section as shown in Figure 4(b). 1) (6 pt.) Determine mathematical descriptions of the shear force function V(x) and the moment function M(x). 2) (6 pt.) Draw the shear and moment diagrams for the beam. 3) (5 pt.) What is the maximum internal moment Mmar in the beam? Where on the beam does it occur? 4) (8 pt.) Determine the absolute...
4. Determine the moment of inertia of the figure shown below about an axis through its...
4. Determine the moment of inertia of the figure shown below about an axis through its centroid parallel to the x axis. I(xe = 2.80E3 in) 12 in - 16 in
Problem 3. (25 points total) Determine (a) The area A of the shaded region. (b) The...
Problem 3. (25 points total) Determine (a) The area A of the shaded region. (b) The x location of the centroid of the shaded area, which is called x. (Use an integral to confirm the value found by inspection from symmetry.) (C) The y location of the centroid of the shaded area, which is called y. (d) The moment of inertia, Ix, of the shaded area about the x axis. (e) The moment of inertia, ly, of the shaded area...

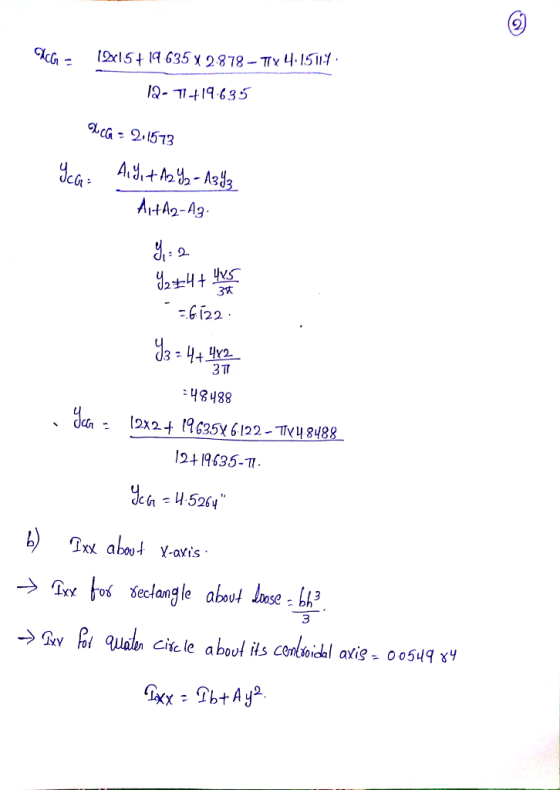

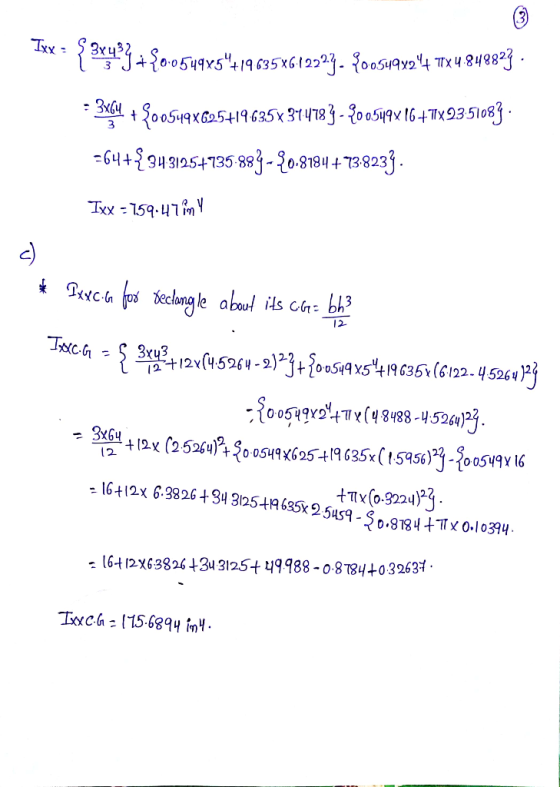

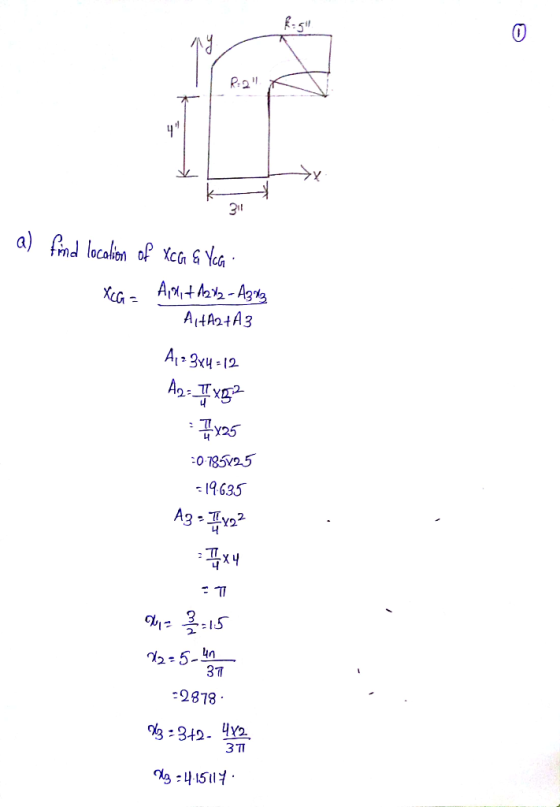

Determine the location of the centroid in inches of the green section below. x= in y=...
Determine the location of the centroid in inches of the green
section below.
x= in
y= in
Then compute the moments of inertia
Ix',
Iy', and
JC in in4 for the section, where
x' and y' denote axes through the centroid of the
entire section.
Ix'= in4
Iy'= in4
JC= in4
Finally, determine the radii of gyration
kx',
ky', and
kC in inches.
kx'= in
ky'= in
kC= in
Determine the location of the centroid in inches of the green...
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2 HINT: 1st find the composite centroidal x and y axes, 2nd find the distance from the centroids of each section to the new composite centroidal axis, 3rd calculate the centroidal Ix and ly and areas using formulas for common shapes, 4th use the parallel axis theorem to calculate the moment of inertia. Also find...
Question ) a) For the composite area shown, determine the position of the centroid, (x,y) options:...
Question ) a) For the composite area shown, determine the position of the centroid, (x,y) options: a) none of these are correct. b) (0,0) c) (4.8, 2.6) m d) (9, 4.5) m e) (2.6, 4.8) m b) For the triangular shape shown, locate the horizontal position of the centroid, x. Question 17 options: a) b/2 b) h/2 c) 2h/3 d) h/3 e) b/3 c) For the triangular shape shown, locate the vertical position of the centroid, y. options: a) b/3...
Parallel-Axis Theorem for an Area 2 of 8 Learning Goal: I, Iy = ft To be...
Parallel-Axis Theorem for an Area 2 of 8 Learning Goal: I, Iy = ft To be able to use the parallel-axis theorem to calculate the moment of inertia for an area. The parallel-axis theorem can be used to find an area's Submit axis that passes through the centroid and whose moment of inertia is known. If ar and y' are the axes that pass through an area's centroid, the parallel-axis theorem for the moment about the x axis, moment about...
Homework No. 24 oblem 10.51 5 of 5 Consider the beam shown in (Figure 1). Suppose that a= 130 mm, b= 35 mm, and r=190 mm Part A axis passing Determine the moment of inertia for the beam's cross-sectional area about the through the centroid C of the cross section Express your answer to three significant figures and include the appropriate units. LValue Units Submit Request Answer < Return to Assignment Provide Feedback gure 1of1 ? 45°
Consider the area shown in Figure 4. Determine; a) The 2nd Moment of Area (Ix and ly) about the axis system shown. b) The Polar Moment of Inertia (Jo) about point O. c) The 2nd Moment of Area (lx and ly) about an axis system that runs through the centroid of the area and the Polar Moment of Inertia (Jo) about the centroid of the area. [5+3+5 = 13 marks] 100 mm-100 mm 150 mm 150 mm 150 mm 75...
Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis. When b = 24", determine (a) the coordinates of the centroid (x, y), and (b) the moment of inertial about the centroidal axis x! The centroidal axis x'is parallel to x- axis and crosses through (X,Y). Upload Choose a File
4. (25 pt.) The beam subjected to a uniform distributed load as shown in Figure 4(a) has a triangular cross-section as shown in Figure 4(b). 1) (6 pt.) Determine mathematical descriptions of the shear force function V(x) and the moment function M(x). 2) (6 pt.) Draw the shear and moment diagrams for the beam. 3) (5 pt.) What is the maximum internal moment Mmar in the beam? Where on the beam does it occur? 4) (8 pt.) Determine the absolute...
4. Determine the moment of inertia of the figure shown below about an axis through its centroid parallel to the x axis. I(xe = 2.80E3 in) 12 in - 16 in
Problem 3. (25 points total) Determine (a) The area A of the shaded region. (b) The x location of the centroid of the shaded area, which is called x. (Use an integral to confirm the value found by inspection from symmetry.) (C) The y location of the centroid of the shaded area, which is called y. (d) The moment of inertia, Ix, of the shaded area about the x axis. (e) The moment of inertia, ly, of the shaded area...
Determine the location of the centroid in inches of the green
section below.
x= in
y= in
Then compute the moments of inertia
Ix',
Iy', and
JC in in4 for the section, where
x' and y' denote axes through the centroid of the
entire section.
Ix'= in4
Iy'= in4
JC= in4
Finally, determine the radii of gyration
kx',
ky', and
kC in inches.
kx'= in
ky'= in
kC= in
Determine the location of the centroid in inches of the green...
Parallel-Axis Theorem for an Area 2 of 8 Learning Goal: I, Iy = ft To be able to use the parallel-axis theorem to calculate the moment of inertia for an area. The parallel-axis theorem can be used to find an area's Submit axis that passes through the centroid and whose moment of inertia is known. If ar and y' are the axes that pass through an area's centroid, the parallel-axis theorem for the moment about the x axis, moment about...
