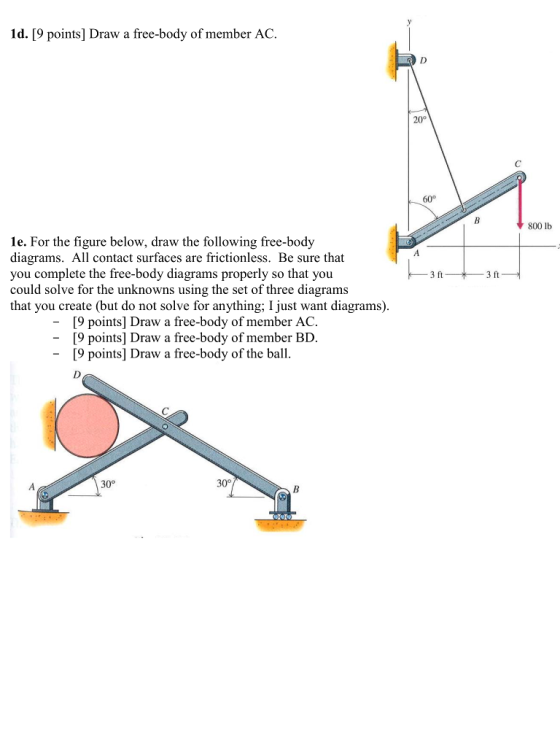

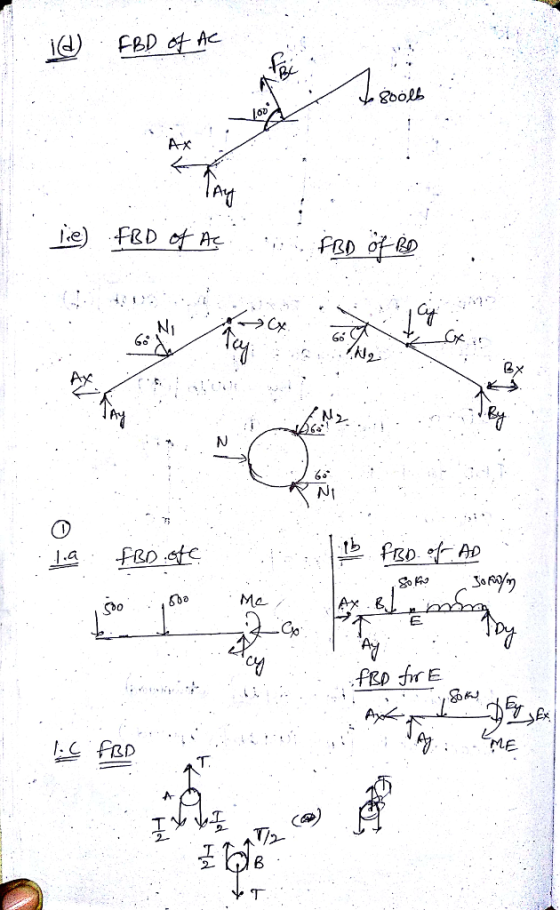

![Id. [9 points] Draw a free-body of member AC. 20° 800 lb le. For the figure below, draw the following free-body diagrams. All contact surfaces are frictionless. Be sure that you complete the free-body diagrams properly so that you could solve for the unknowns using the set of three diagrams that you create (but do not solve for anything; I just want diagrams) 3 ft 3 ft [9 points] Draw a free-body of member AC. [9 points] Draw a free-body of member BD. 9 points] Draw a free-body of the ball. 30° 30°](http://img.homeworklib.com/questions/dcfb5720-c988-11ea-a916-9d5abae147d3.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Id. [9 points] Draw a free-body of member AC. 20° 800 lb le. For the figure...
Solve: Draw the free body diagram, solve the reaction, shear and bending moment diagrams. Show all...
Solve: Draw the free body diagram, solve the reaction, shear and bending moment diagrams. Show all of the work 150 Lb/ft 30,000 ft Lb 10,000 ft Lb 7 ft A 8ft 9 ft

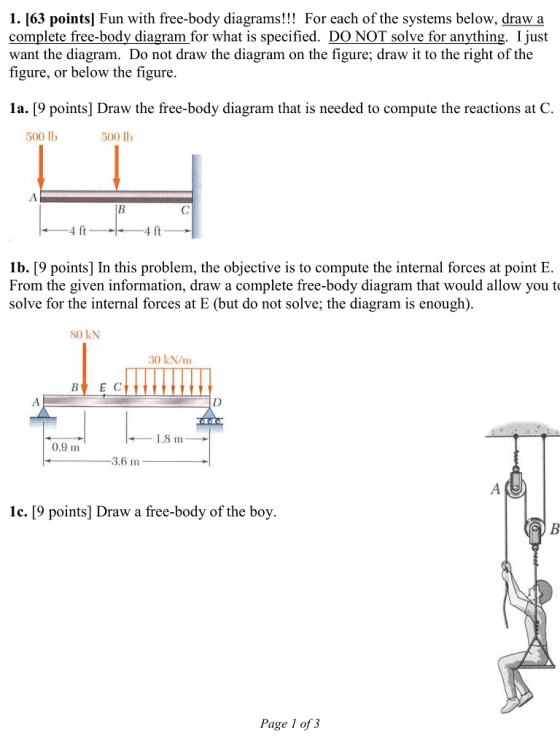

ATTEMPT ALL QUESTIONS (All solutions must include free body diagrams) 1000 lb SO Question 1 Determine...
ATTEMPT ALL QUESTIONS (All solutions must include free body diagrams) 1000 lb SO Question 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Draw the Free Body Diagram (FBD) of the structure and joints for solving internal forces) (35 points) 10 ft ---10 -- --10 ft-------10ft-- 600 lb
Question 2 (35 points) 800mm The 20kg homogeneous cylinder of 800-mm diameter rests against the surfaces...
Question 2 (35 points) 800mm The 20kg homogeneous cylinder of 800-mm diameter rests against the surfaces shown. The coefficient of static friction is 0.5 for AB and 0.6 for AC. The coefficient of kinetic friction is 0.4 for AB and 0.5 for AC 30- (1) 5 points: Draw the free body diagram of the cylinder (ii) 15 points: Calculate the magnitude of the clockwise couple M required to initiate the rotation. (iii) 15 points: Suppose that the contact at the...
Draw complete free body diagrams for the bodies specified in the following problems. Neglect the weight...
Draw complete free body diagrams for the bodies
specified in the following problems. Neglect the weight of
the members, except where the problem statement indicates that the
weight of the member is to be considered. Assume that all surfaces
are smooth (i.e. frictionless) unless indicated otherwise. If a
force’s direction is known, draw it in the correct direction.
1. Cantilever beam with weight W that acts through the center of gravity shown. The left end is a fixed support. (A...
Please help with part C and D 32 1 1/2 in Draw a free body diagram...
Please help with part C and D
32 1 1/2 in Draw a free body diagram for the beam shown above and drive expressions for the support reactions at A and (10 points) FHD 9) EMA = 0 MO O: Mo +2Mo + B₂ (34) LAY BY TAY BUCBA)-3 a 9 +F:0 *DEFX=0 0 Ay+ By MO o Ax By: O:A-MO -> _Ay row internal force shear and bending moment diagrams (10 points) By: 3 INTERNAL FORCE DIAGRAMS ma Meso...
solve some parts of question Question 1 (40 points) G 10 ft The weight of the...
solve some parts of question
Question 1 (40 points) G 10 ft The weight of the man is 180 lb. As he climbs the ladder, he stops at the position shown on the figure. The friction at A is He = 0.4. The weight of the ladder is neglected. (i) 10 points: Draw the free body diagram. It is assumed that the contact at B is smooth. (ii) 10 points: State the equation of equilibrium A - 3ft - I...
Can someone solve these? ill award a thumbs up Force Balance and Free body Diagrams 9....
Can someone solve these? ill award a thumbs up
Force Balance and Free body Diagrams 9. (2) True or false: Dynamic equilibrium involves a net force equal to zero and the object at rest 10. (2) True or false: A hockey puck sliding on a frictionless Ice rink at constant velocity is in dynamic equilibrium. 11. (2) True or False: A stoplight hanging motionless from a wire is in dynamic equilibrium For questions 12, 13 and 14 draw and label...
Please help! I need help finding and solving equations of equilibrium to find the max tension in ...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
Please read the article bellow and discuss the shift in the company's approach to genetic analysis....
Please read the article bellow and discuss the shift in the
company's approach to genetic analysis. Please also discuss what
you think about personal genomic companies' approaches to research.
Feel free to compare 23andMe's polices on research with another
company's. Did you think the FDA was right in prohibiting 23andMe
from providing health information?
These are some sample talking points to get you thinking about
the ethics of genetic research in the context of Big Data. You
don't have to...
Solve: Draw the free body diagram, solve the reaction, shear and bending moment diagrams. Show all of the work 150 Lb/ft 30,000 ft Lb 10,000 ft Lb 7 ft A 8ft 9 ft
ATTEMPT ALL QUESTIONS (All solutions must include free body diagrams) 1000 lb SO Question 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Draw the Free Body Diagram (FBD) of the structure and joints for solving internal forces) (35 points) 10 ft ---10 -- --10 ft-------10ft-- 600 lb
Question 2 (35 points) 800mm The 20kg homogeneous cylinder of 800-mm diameter rests against the surfaces shown. The coefficient of static friction is 0.5 for AB and 0.6 for AC. The coefficient of kinetic friction is 0.4 for AB and 0.5 for AC 30- (1) 5 points: Draw the free body diagram of the cylinder (ii) 15 points: Calculate the magnitude of the clockwise couple M required to initiate the rotation. (iii) 15 points: Suppose that the contact at the...
Draw complete free body diagrams for the bodies
specified in the following problems. Neglect the weight of
the members, except where the problem statement indicates that the
weight of the member is to be considered. Assume that all surfaces
are smooth (i.e. frictionless) unless indicated otherwise. If a
force’s direction is known, draw it in the correct direction.
1. Cantilever beam with weight W that acts through the center of gravity shown. The left end is a fixed support. (A...
Please help with part C and D
32 1 1/2 in Draw a free body diagram for the beam shown above and drive expressions for the support reactions at A and (10 points) FHD 9) EMA = 0 MO O: Mo +2Mo + B₂ (34) LAY BY TAY BUCBA)-3 a 9 +F:0 *DEFX=0 0 Ay+ By MO o Ax By: O:A-MO -> _Ay row internal force shear and bending moment diagrams (10 points) By: 3 INTERNAL FORCE DIAGRAMS ma Meso...
solve some parts of question
Question 1 (40 points) G 10 ft The weight of the man is 180 lb. As he climbs the ladder, he stops at the position shown on the figure. The friction at A is He = 0.4. The weight of the ladder is neglected. (i) 10 points: Draw the free body diagram. It is assumed that the contact at B is smooth. (ii) 10 points: State the equation of equilibrium A - 3ft - I...
Can someone solve these? ill award a thumbs up
Force Balance and Free body Diagrams 9. (2) True or false: Dynamic equilibrium involves a net force equal to zero and the object at rest 10. (2) True or false: A hockey puck sliding on a frictionless Ice rink at constant velocity is in dynamic equilibrium. 11. (2) True or False: A stoplight hanging motionless from a wire is in dynamic equilibrium For questions 12, 13 and 14 draw and label...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
Please read the article bellow and discuss the shift in the
company's approach to genetic analysis. Please also discuss what
you think about personal genomic companies' approaches to research.
Feel free to compare 23andMe's polices on research with another
company's. Did you think the FDA was right in prohibiting 23andMe
from providing health information?
These are some sample talking points to get you thinking about
the ethics of genetic research in the context of Big Data. You
don't have to...
