A ray of light of 400 nm wavelength makes an angle of incidence of ? on...

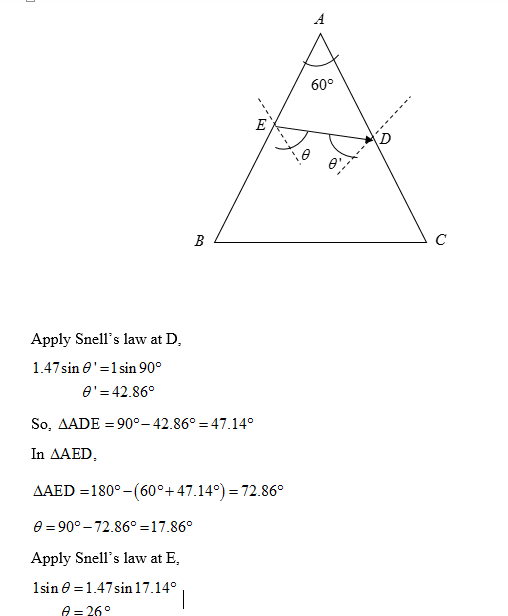

A ray of light of 400 nm wavelength makes an angle of incidence
of ? on one face of a prism of
fuse quartz (n=1.47); the prism's cross section is an equilateral
triangle. What is the value of ? atwhich the total internal
reflection starts to occur at the second surface?
Please show work.
Homework Answers
