Question

A circular bar of radius r under axial force P and torque T will elongate by an amount e and twist through and angle θ. Find Poisson’s ratio for an isotropic material (inc. steps)?

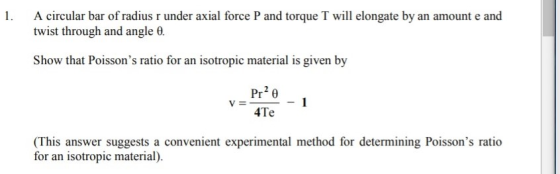

1. A circular bar of radius r under axial force P and torque T will elongate by an amount e and twist through and angle 0. Sh

0 0
Add a comment Improve this question Transcribed image text
Answer #1

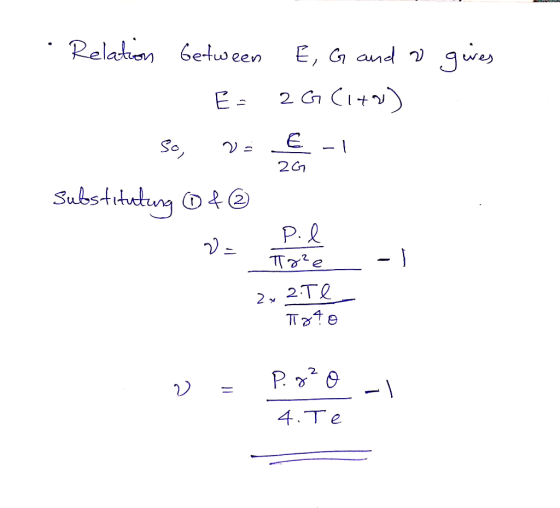

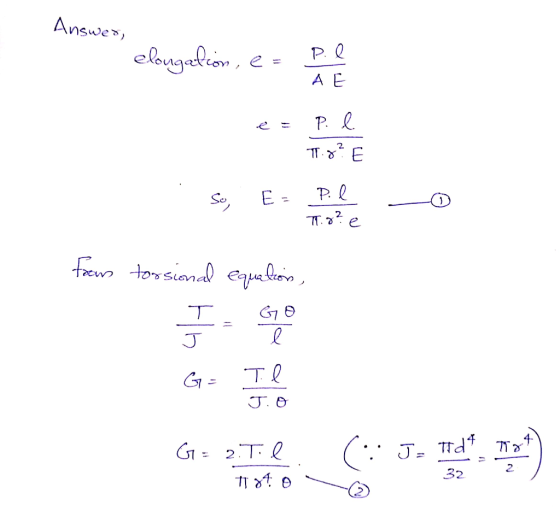

Answer, elongaleon, es pie AE е = Р. О. T.8? E - T.g? e Focus torsional equation, I G- The G = 2 J = Tid & Tot T. e 7184 01 3gives Relation between E, G and to E = 2G (140) So, VEI Substitutung Of @ 1 P. I 267 2= Tore _ -1 2x 2.Te Toto D = P.geo-1 4.

Add a comment
Know the answer?
Add Answer to:
A circular bar of radius r under axial force P and torque T will elongate by...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
