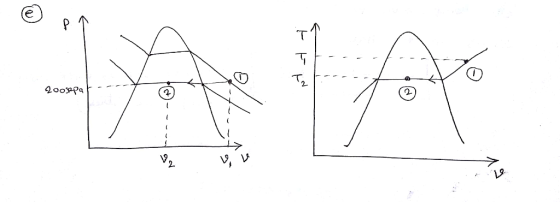

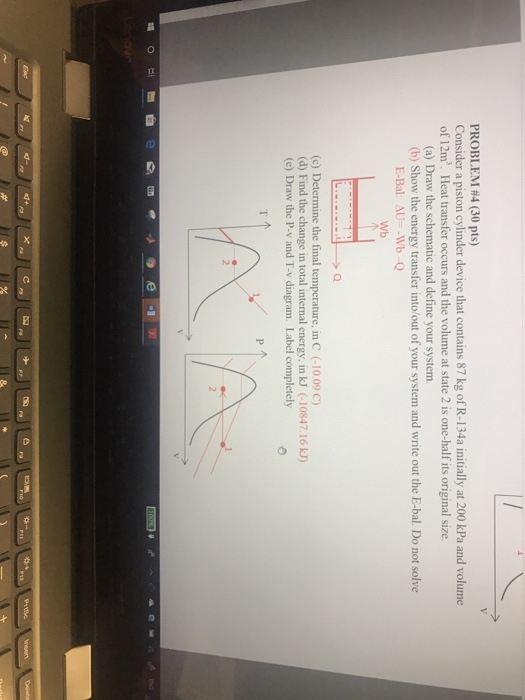

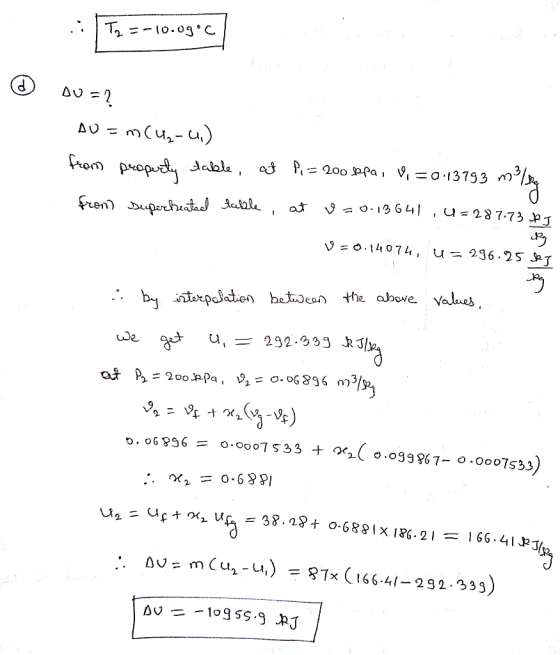

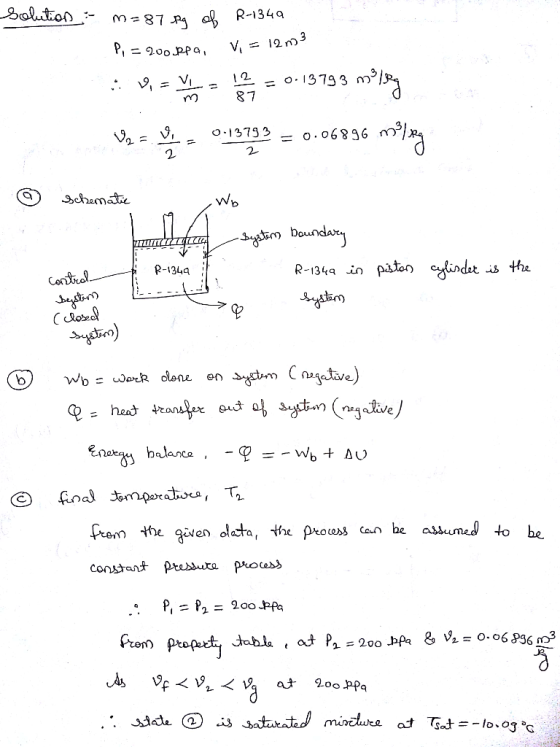

PROBLEM #4 (30 pts) Consider a piston cylinder device that contains 87 kg of R-134a initially...
0.4 kg of Refrigerant 134a initially fills a piston–cylinder device with a volume of 15 L...
0.4 kg of Refrigerant 134a initially fills a piston–cylinder device with a volume of 15 L at a pressure of 400 kPa. The cylinder is connected to a supply line through a valve. R-134a is flowing in the supply line at 900 kPa and 45°C. The valve is opened, and R-134a is allowed to enter the cylinder. The valve is closed when the volume of the cylinder is triple and the temperature in the cylinder reaches 15°C. During the process,...
A piston cylinder device with a free floating piston contains 0.3 kg of R-134a at 400...
A piston cylinder device with a free floating piston contains 0.3 kg of R-134a at 400 kPa and 0 C. The volume of the cylinder is what?
50 kg of R-134a at s80 kPa is contained in a piston-cylinder device where V =...
50 kg of R-134a at s80 kPa is contained in a piston-cylinder device where V = 0.4 m^3. The system is cooled at constant pressure until the internal energy is half the initial. Determine: 1) Final Temperature (Tfinal) 2) Final Quality (Xfinal) 3) Final Volume (Vfinal)
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually reaches the...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually reaches the...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at...
A piston-cylinder device initially contain 0.4 m3 of 1.8-kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually reaches the...
1-A piston-cylinder device with a set of stops contains 10 kg of refrigerant-134a. Initially, 8 kg...
1-A piston-cylinder device with a set of stops contains 10 kg of refrigerant-134a. Initially, 8 kg of the refrigerant is in the liquid form, and the temperature is 8°C. Now heat is transferred slowly to the refrigerant until the piston hits the stops, at which point the volume is 400 L. Determine (a) The temperature when the piston first hits the stops and (b) The work done during this expansion process. Also, show the process on a P-V diagram.
frictionless piston-cylinder device initially contains 0.85 kg of helium at 18°C and 100 kPa. By taking...
frictionless piston-cylinder device initially contains 0.85 kg of helium at 18°C and 100 kPa. By taking specific heat at room temperature, please calculate; a) the initial volume of the helium in the frictionless piston-cylinder device, and b) the heat required to increase the volume of the frictionless piston-cylinder device to 10800 liter in (kJ).
2 A frictionless piston-cylinder device initially contains 0.5-m2 of air at 200 kPs and 207℃·luri...
2 A frictionless piston-cylinder device initially contains 0.5-m2 of air at 200 kPs and 207℃·luring the process. Air is stirred by a paddle wheel at į00 kJ while the pressure remains constant during the process. A heat loss of 85 kJ occurs and an electric energy of 50 kJ through a resistor is placed in the eylinder (a) Write the assumptions (b) Show the 1 law of thermodynamies for the control volume (c) Determine the mass of air in the...
1 A piston-cylinder device initially contain 0.4 m3 of 1.8- kg saturated liquid water and steam mixture at 110 kPa. A electric heater in the device is turned on and passes a current of 1.7 A from a 120-V source. Only transfer of electrical work and boundary work exist. The piston initially rests on a set of stops, and a pressure of 200 kPa is required to move the piston. Afterwards the system continues to raise the piston and eventually...
1-A piston-cylinder device with a set of stops contains 10 kg of refrigerant-134a. Initially, 8 kg of the refrigerant is in the liquid form, and the temperature is 8°C. Now heat is transferred slowly to the refrigerant until the piston hits the stops, at which point the volume is 400 L. Determine (a) The temperature when the piston first hits the stops and (b) The work done during this expansion process. Also, show the process on a P-V diagram.
2 A frictionless piston-cylinder device initially contains 0.5-m2 of air at 200 kPs and 207℃·luring the process. Air is stirred by a paddle wheel at į00 kJ while the pressure remains constant during the process. A heat loss of 85 kJ occurs and an electric energy of 50 kJ through a resistor is placed in the eylinder (a) Write the assumptions (b) Show the 1 law of thermodynamies for the control volume (c) Determine the mass of air in the...
