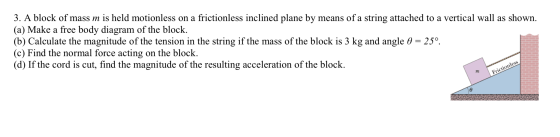

3. A block of mass m is held motionless on a frictionless inclined plane by means of a string attached to a vertical wall as

science physics

Answer 1

Answer #1

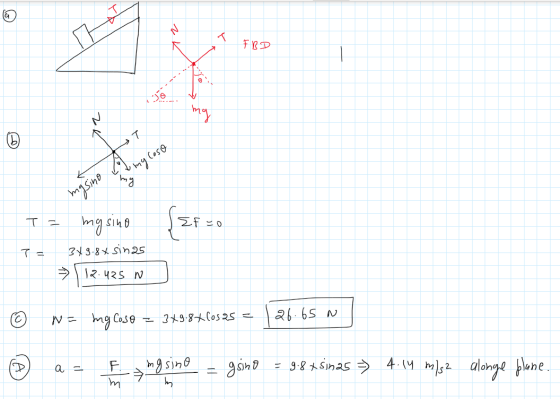

FBD any loso mg sino T = masino mg sino ZF co 349.8x sinas 12.425 W © N= ng Coso = 3x9.8+(osas = 26.65 N ☺ a - Fyng sino – gs

Good luck for exams Comment in case any doubt, will reply for sure..

Answer 2

Similar Homework Help Questions

3.8. Moving plane A block of mass m is held motionless on a frictionless plane of...

3.8. Moving plane A block of mass m is held motionless on a frictionless plane of mass Mand angle of inclination θ see Fig. 3.16 released. What is the horizontal acceleration of the plane? The plane rests on a frictionless horizontal surface. The block is AW
} %60 A block of mass mi-4.70 kg on a frictionless plane inclined at angle θ-35.00...

} %60 A block of mass mi-4.70 kg on a frictionless plane inclined at angle θ-35.00 is connected by a cord over a massless, frictionless pulley to a second block of mass m' = 2.60 kg. Calculate : (a) The magnitude of the acceleration of each block (b) The direction of the acceleration of the hanging block (c) The tension in the cord 4, mo (10 marks)
A block of mass m1 = 3.7 Kg on a frictionless plane inclined at an angle...

A block of mass m1 = 3.7 Kg on a frictionless plane inclined at an angle θ = 30° is connected by a cord over a massless frictionless pulley to a second block of mass m2 = 2.3 Kg. a) What is the magnitude of the acceleration of each block? b) What is the Tension of the cord? c) What is the Normal force?

1. The figure shows a box with mass m1 on a frictionless plane inclined at angle...

1. The figure shows a box with mass m1 on a frictionless plane inclined at angle ?1. The box is connected via a cord of negligible mass to another box with mass m2 on a frictionless plane inclined at angle ?2 (> ?1). The pulley is frictionless and has negligible mass and assumes that the setup is on the surface of the earth. a) Provide free-body force diagram for both boxes. b) What is the acceleration in terms of m1,...
A block of mass m1=3.7 kg on a frictionless plane inclined as angle θ=30 degrees is...

A block of mass m1=3.7 kg on a frictionless plane inclined as angle θ=30 degrees is connected by a cord over a massless, frictionless pulley to a second block of mass m2=2.3 kg hanging vertically (shown above). What are (a) the magnitude of the acceleration of each block, (b) the direction of the acceleration of the hanging block, and (c) the tension in the cord?
A block of mass = 3.21 kg on a frictionless plane inclined at angle theta =...

A block of mass = 3.21 kg on a frictionless plane inclined at angle theta = 34.5 degree is connected by a cord over a massless, frictionless pulley to a second block of mass m_2 = 2.35 kg hanging vertically (see the figure), What is the acceleration of the hanging block (choose the positive direction down)? What Is the tension in the cord?

A block of mass m1 = 3.23 kg on a frictionless plane inclined at angle θ...

A block of mass m1 = 3.23 kg on a frictionless plane inclined at angle θ = 32.3° is connected by a cord over a massless, frictionless pulley to a second block of mass m2 = 2.60 kg hanging vertically (see the figure). (a) What is the acceleration of the hanging block (choose the positive direction down)? (b) What is the tension in the cord?
4) A block of mass m1 = 3.7kg on a frictionless plane, inclined at an angle...

4) A block of mass m1 = 3.7kg on a frictionless plane, inclined at an angle of 0 = 30°, is connected by a cord over a massless, frictionless pulley to a second of mass m2 = 4.3 kg. Refer to the accompanying figure below. a) What is the acceleration of the hanging block? b) What is the tension in the cord? N 2 2 M2 J Mig 1 30° a) T-mg = ma Tsino-m, g=m, a x m, atmig...
A block of mass m1 = 3.28 kg on a frictionless plane inclined at angle θ...

A block of mass m1 = 3.28 kg on a frictionless plane inclined at angle θ = 31.8° is connected by a cord over a massless, frictionless pulley to a second block of mass m2 = 2.74 kg hanging vertically (see the figure). (a) What is the acceleration of the hanging block (choose the positive direction down)? (b) What is the tension in the cord? Answered (a) which is 1.65 but cant get (b). Its not 27.6.

3. A block of 43.7 slugs is supported on a frictionless inclined plane by a steel...

3. A block of 43.7 slugs is supported on a frictionless inclined plane by a steel rod ( Oy = 36.0 ksi) that is parallel to the incline of the plane. The plane is inclined at an angle of 30°. The acceleration due to gravity is 32.2 ft/s?. Determine the following: a. Draw a free body diagram for the block. b. What is the tension in the steel rod? c. For a factor of safety against yield of 2.15, what...
