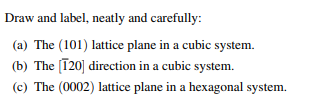

Draw and label, neatly and carefully (a) The (101) lattice plane in a cubic system (b) The 120 direction in a cubic system (c) The (0002) lattice plane in a hexagonal system.

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

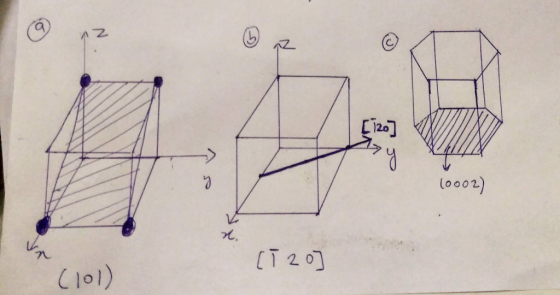

(o)) [07] (7000) که را 7 (ن)

0 0
Add a comment
Know the answer?
Add Answer to:
Draw and label, neatly and carefully (a) The (101) lattice plane in a cubic system (b)...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • For a cubic structure with lattice parameter “a”. Please draw out a picture of a plane...

    For a cubic structure with lattice parameter “a”. Please draw out a picture of a plane with Miller Indices (2 1 3).

  • Please find the indices of the direction and the plane in the cubic lattice depicted in...

    Please find the indices of the direction and the plane in the cubic lattice depicted in the adjoining figure. 11 -+++

  • Problem 1: Calculate the resolved shear stress acting on the (101) [111] system for a single...

    Problem 1: Calculate the resolved shear stress acting on the (101) [111] system for a single crystal of BCC molybdenum subject to the following: • Applied stress: 55 MPa • Direction of applied stress: [001] (a) Sketch the direction of applied stress in the cubic cell diagram on the right: (b) Use the cubic cell diagram on the diagram on the right to sketch: • The slip plane • The slip direction (c) Determine the indices for the direction normal...

  • 2) Reciprocal Lattice Cobalt is a ferromagnetic material that belongs to the hexagonal crystal system with...

    2) Reciprocal Lattice Cobalt is a ferromagnetic material that belongs to the hexagonal crystal system with a 2.51 Å and cla a) Draw the ( 100). ( 1 10) and (021) planes in the hexagonal unit cell in real space. b) Calculate the volume of the hexagonal unit cell for cobalt. c) Calculate the d-spacings for the (100), (110) and (021) planes in cobalt. 1.62. Consine the rediprn r ora i vecon., " J, and c* and determining the angles...

  • 1. (7 points) Consider a face-centered cubic (fcc) lattice: (a) (2 points) Draw a 3D primitive...

    1. (7 points) Consider a face-centered cubic (fcc) lattice: (a) (2 points) Draw a 3D primitive unit cell structure (b) (2 points) Sketch the placement of atoms on a (100) plane. Express distances between atoms on the plane in terms of lattice constant (a). (c) (1 point) How many atoms are there per primitive unit cell? (d) (1 point) How many nearest neighbor atoms are there for each atom? (e) (1 point) Assume a lattice constant of Inm. Determine the...

  • Consider a plane hkl in a crystal lattice. (A) Prove that the reciprocal lattice vector -h+kb+,...

    Consider a plane hkl in a crystal lattice. (A) Prove that the reciprocal lattice vector -h+kb+, is perpendicular to that plane. (B) Prove that the distance between dito-2r / G ! . (C) Show that for a simple cubic lattice d-a" (h, + k] + 1*) two adjacent parallel planes of the lattice is

  • (b) A caesium-bromide crystal has a simple cubic lattice with lattice constant a= 4.30 A. The...

    (b) A caesium-bromide crystal has a simple cubic lattice with lattice constant a= 4.30 A. The basis of the crystal contains one caesium atom at fi = (0,0,0) and one bromine atom at r2 = (a/2, 2/2,a/2), where the vectors and are expressed with respect to the Cartesian basis vectors i, j, k. (i) The relative atomic mass of Cs is 133 amu and the relative atomic mass of Br is 80.0 amu, where I amu = 1.66 x 10-2...

  • Can anyone tell me formula for lattice constants a, b and c in a hexagonal structure?...

    Can anyone tell me formula for lattice constants a, b and c in a hexagonal structure? a , b and c are units cell of structure. As we see in cubic structure we have a formula to calculate side a, b and c method known as braggs law. So what should be the method for calculating it in a hexagonal structure. I want to define the XRD (X-Ray diffraction) structure of my crystal.

  • Question 1: Crystal Lattices Hexagonal Close Packed (HCP) Cubic Close Packed (CCP) Sodium Chloride Zinc Blende...

    Question 1: Crystal Lattices Hexagonal Close Packed (HCP) Cubic Close Packed (CCP) Sodium Chloride Zinc Blende Wurtzite a) Draw the structures of all close packing and ionic lattices above. b) Identify the presence of octahedral and tetrahedral holes between layers. How many of each type of "hole" surround each atom in the lattice? c) Identify the layers of each structure in the drawings. d) Write an account of close packed lattice structures. e) Note the similarities and differences between Hexagonal...

  • Homework 3:(Crystal Structure)- Due Thursday 1. Draw the following planes and directions in a tetragonal unit...

    Homework 3:(Crystal Structure)- Due Thursday 1. Draw the following planes and directions in a tetragonal unit cell : (001), (011, 13), 110, 1201], [-101] Show cell axes. 2. Find the diffraction direction for Orthorhom bie and Hexagonal crystal lattice 3. Determine, and list in order of increasing angle, the values of 20 and corresponding (hkl for the first three lines (those of lowest 20 values) on the powder patterns of substances with the following structures, the incident radiation being Cu...
