A current of 15.0 mA is maintained in a single circular loop of 3.60 m circumference....
A current of 15.0 mA is maintained in a single circular loop of 3.60 m circumference. A magnetic field of 0.500 T is directed parallel to the plane of the loop.

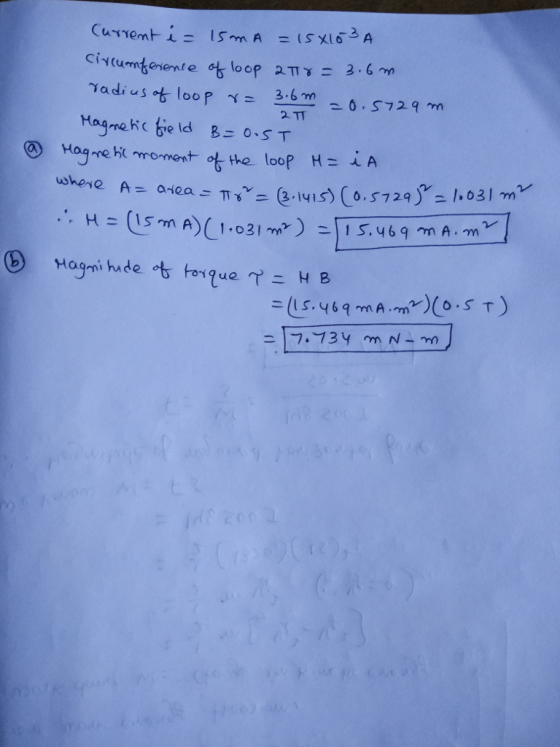

(a) Calculate the magnetic moment of the loop _______ mA · m2
(b) What is the magnitude of the torque exerted by the magnetic field on the loop?______ mN · m
