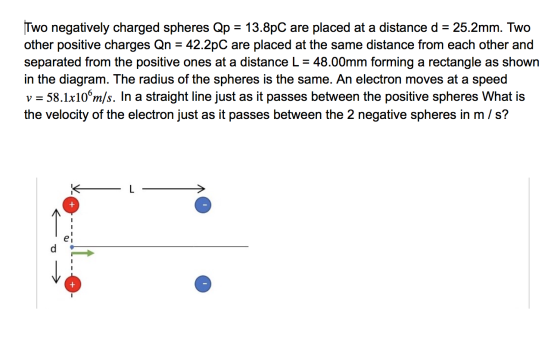

Two negatively charged spheres Qp = 13.8pC are placed at
a distance d = 25.2mm. Two other positive charges Qn = 42.2pC are
placed at the same distance from each other and separated from the
positive ones at a distance L = 48.00mm forming a rectangle as
shown in the diagram. The radius of the spheres is the same. An
electron moves at a speed v=58.1x106m/s. In a straight line just as
it passes between the positive spheres What is the velocity of the
electron just as it passes between the 2 negative spheres in m /
s?

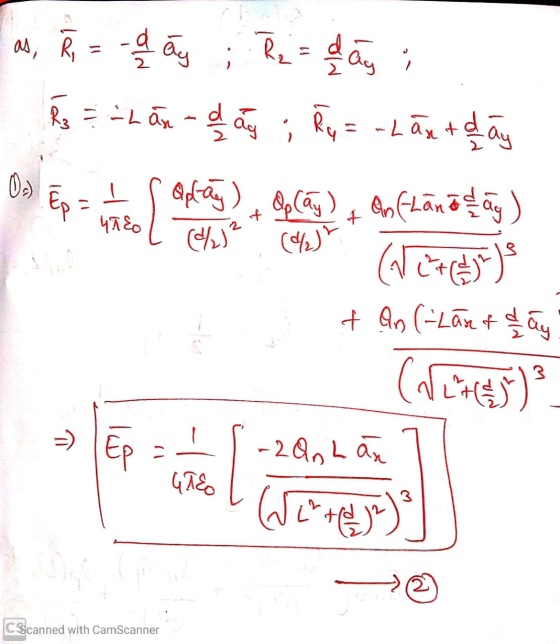

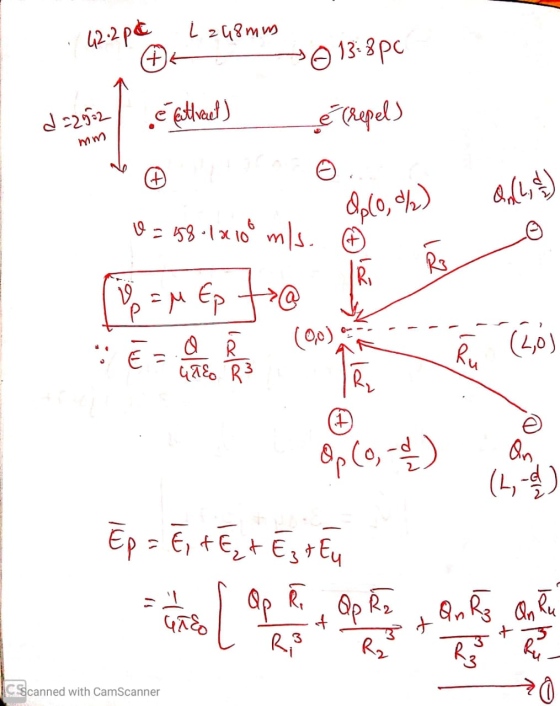

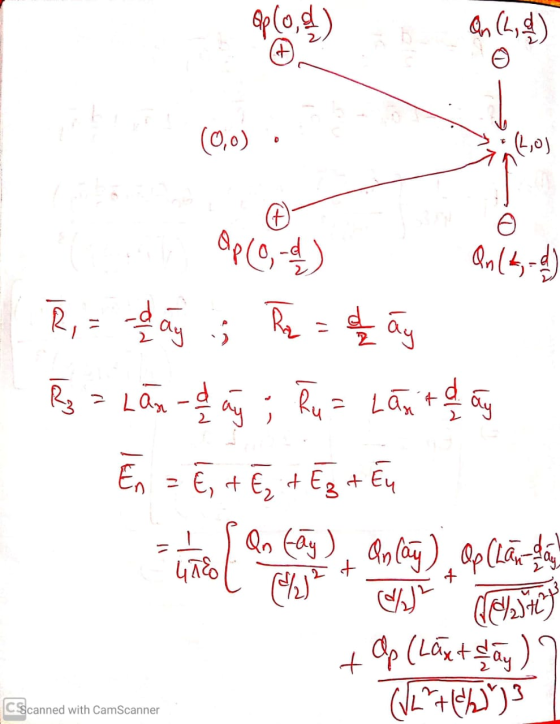

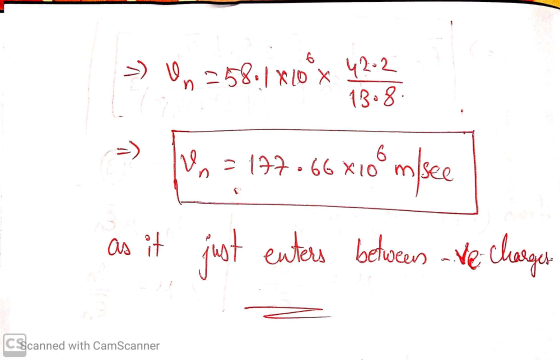

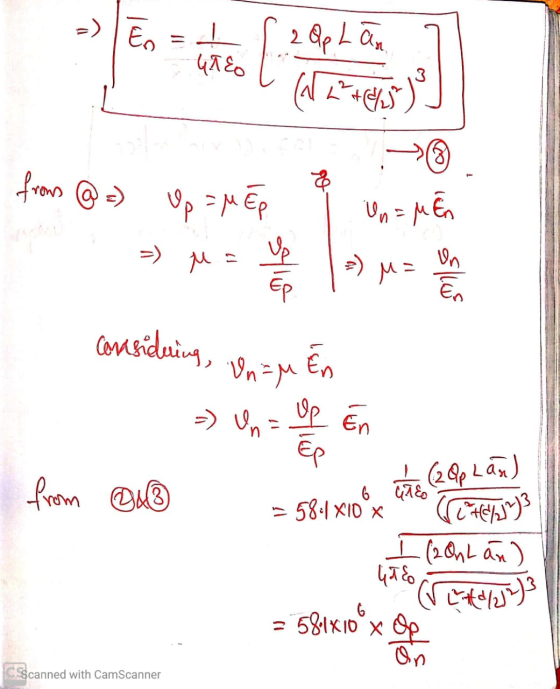

Homework Answers
Add Answer to:
Two negatively charged spheres Qp = 13.8pC are placed at
a distance d = 25.2mm. Two...
Two negatively charged small metal spheres with -2q and +8q are separated by distance d and...
Two negatively charged small metal spheres with -2q and +8q are separated by distance d and experience an attractive force F initial. You bring the spheres into contact briefly to allow charge to flow in such a way that it uniformly distributes the net charge between them. They are returned to their original separation d. What is the new force between them in terms of F intial?
Two positively charged spheres with charges 5e and e are separated by a distance L and...
Two positively charged spheres with charges 5e and e are separated by a distance L and held motionless. A third charged sphere with charge Q is set between the two spheres and along the line joining them. The third sphere is in static equilibrium. What is the distance between the third charged sphere and the sphere that has charge 5e? (Use any variable or symbol stated above as necessary.)
Two small insulating spheres with radius 9.00*10^-2m are separated by a large center-to-center distance of 0.520m...
Two small insulating spheres with radius 9.00*10^-2m are separated by a large center-to-center distance of 0.520m . One sphere is negatively charged, with net charge -2.40uC , and the other sphere is positively charged, with net charge 3.35uC . The charge is uniformly distributed within the volume of each sphere. a) What is the magnitude E of the electric field midway between the spheres? Take the permittivity of free space to be ?0 = 8.85
Two small insulating spheres with radius 7.00×10−2 m are separated by a large center-to-center distance of...
Two small insulating spheres with radius 7.00×10−2 m are separated by a large center-to-center distance of 0.575 m . One sphere is negatively charged, with net charge -1.70 μC , and the other sphere is positively charged, with net charge 3.90 μC . The charge is uniformly distributed within the volume of each sphere. What is the magnitude E of the electric field midway between the spheres? Take the permittivity of free space to be ϵ0 = 8.85×10−12 C2/(N⋅m2) .
Two small insulating spheres with radius 3.00×10−2 m are separated by a large center-to-center distance of...
Two small insulating spheres with radius 3.00×10−2 m are separated by a large center-to-center distance of 0.575 m . One sphere is negatively charged, with net charge -1.05 μC , and the other sphere is positively charged, with net charge 3.45 μC . The charge is uniformly distributed within the volume of each sphere. What is the magnitude E of the electric field midway between the spheres? Take the permittivity of free space to be ϵ0 = 8.85×10−12 C2/(N⋅m2) .
Two small insulating spheres with radius 6.00×10−2 m are separated by a large center-to-center distance of...
Two small insulating spheres with radius 6.00×10−2 m are separated by a large center-to-center distance of 0.600 m . One sphere is negatively charged, with net charge -1.05 μC , and the other sphere is positively charged, with net charge 3.30 μC. The charge is uniformly distributed within the volume of each sphere. What is the magnitude E of the electric field midway between the spheres? Take the permittivity of free space to be ϵ0 = 8.85×10−12 C2/(N⋅m2) .
Two small insulating spheres
Two small insulating spheres with radius 5.50×10-2 are separated by a large center-to-center distance of 0.575 . One sphere is negatively charged, with net charge-1.25 , and the other sphere is positively charged, with net charge 3.30 . The charge is uniformly distributed within the volume of each sphere.What is the magnitude of the electric field midway between the spheres?Take the permittivity of free space to be = 8.85×10-12 . C^2/(N*m^2)
Two small insulating spheres with radius 5.00×10−2m are separated by a large center-to-center distance of 0.540...
Two small insulating spheres with radius 5.00×10−2m are separated by a large center-to-center distance of 0.540 m. One sphere is negatively charged, with net charge -1.35 μC, and the other sphere is positively charged, with net charge 3.85 μC. The charge is uniformly distributed within the volume of each sphere. What is the magnitude E of the electric field midway between the spheres? Take the permittivity of free space to be ϵ0 = 8.85×10−12 C2/(N⋅m2). I tried: 3.57*10*-5 N/C
a) b) There are two equal but opposite charged objects separated by a known distance. Where...
a)
b)
There are two equal but opposite charged objects separated by a known distance. Where is the electric potential the highest? Select one a. An infinite distance from the charges b. Nearest to either charge the potentials are the same at these points O c. Nearest to the negative charge d. Midway between the charges e. Nearest to the positive charge Choose the correct statement regarding electric potentials: Select one: a. The potential of a negatively charged conductor must...
Two small insulating spheres with radius 5.00×10−2m are separated by a large center-to-center distance of 0.540...
Two small insulating spheres with radius 5.00×10−2m are separated by a large center-to-center distance of 0.540 m. One sphere is negatively charged, with net charge -1.35 μC, and the other sphere is positively charged, with net charge 3.85 μC. The charge is uniformly distributed within the volume of each sphere. What is the magnitude E of the electric field midway between the spheres? Take the permittivity of free space to be ϵ0 = 8.85×10−12 C2/(N⋅m2). I tried: 3.57*10*^-5 N/C, 3.57*10^-5...
a)
b)
There are two equal but opposite charged objects separated by a known distance. Where is the electric potential the highest? Select one a. An infinite distance from the charges b. Nearest to either charge the potentials are the same at these points O c. Nearest to the negative charge d. Midway between the charges e. Nearest to the positive charge Choose the correct statement regarding electric potentials: Select one: a. The potential of a negatively charged conductor must...
