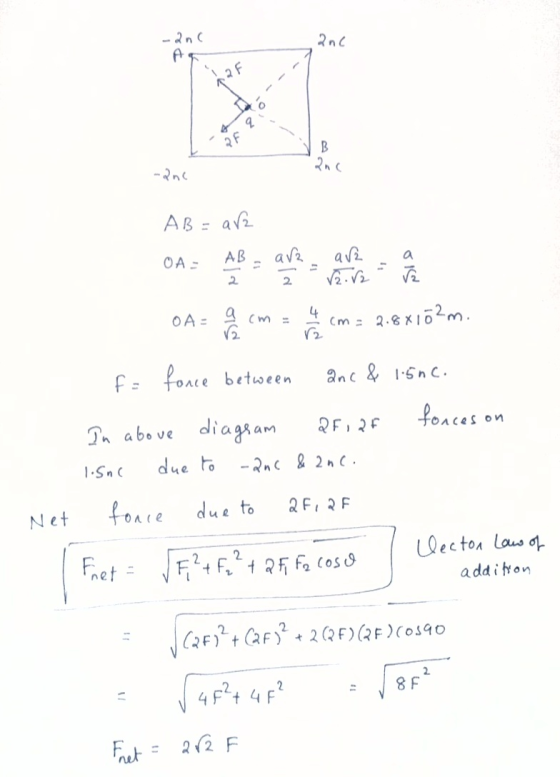

(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size α = 4.0 cm.
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size α = 4.0 cm. Positive charge with the magnitude of q = 1.5 nC is placed in the center of the square.
Part A
What is the magnitude of the force on the 1.5 nC charge in the middle of the figure due to the four other charges?
Part B
What is the direction of the force on the 1.5 nC charge in the middle of the figure due to the four other charges?
Homework Answers
Add Answer to:
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size α = 4.0 cm.
(Figure 1) shows five electric charges Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 4.0 cm
(Figure 1) shows five electric charges Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 4.0 cm. Positive charge with the magnitude of q = 4.0 nC is placed in the center of the square. Part AWhat is the magnitude of the force on the 4.0 nC charge in the middle of the figure due to the four other charges? Part B What is the direction of the force on the 4.0 nC charge...
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 3.0 cm
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 3.0 cm. Positive charge with the magnitude of q = 7.5 nC is placed in the center of the square. Part A What is the magnitude of the force on the 7.5 nC charge in the middle of the figure due to the four other charges? Part B What is the direction of the force on the 7.5 nC charge...
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC...
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 1.5 cm . Positive charge with the magnitude of q = 8.0 nC is placed in the center of the square. What is the magnitude of the force on the 8.0 nC charge in the middle of the figure due to the four other charges? What is the direction of the force on the 8.0 nC...
(Figure 1) shows five electric charges. Four charges with themagnitude of the charge 2.0 nC...
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the size a = 1.0
cm . Positive charge with the magnitude of q = 6.5 nC is placed in
the center of the square.1. What is the magnitude of the force on the 6.5 nC charge in
the middle of the figure due to the four other charges?2. What is the direction of the force on the 6.5 nC...
(Figure 1) shows five electric charges. Four charges with themagnitude of the charge 2.0 nC...
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the sizea = 3.0 cm. Positive charge with the magnitude of q = 7.0 nC is placed in the center of the square.What is the direction of the force on the 7.0 nC charge in the
middle of the figure due to the four other charges? What is the
direction of the force on the 7.0 nC charge in the middle of...
In the figure, four point charges lie on the corners of a square, with a fifth...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn, and the two rightmost charges have the same positive charge qp Assume that the center charge q is negative. What is the direction of the total electric force.... on the charge q at the center of the square? What is the direction of the electric field at...
In the figure, four point charges lie on the corners of a square, with a fifth...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn , and the two rightmost charges have the same positive charge Assume that the center charge q is negative. What is the direction of the total electric force In on the charge q at the center of the square? What is the direction of the electric field...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the cen...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
Dynamics In the figure below, four point charges lie on the comers of a square, with a fifth point charge qn loc...
Dynamics
In the figure below, four point charges lie on the comers of a square, with a fifth point charge qn located at the center. The two left-most charges have the same negative charge qn while the two right-most charges have the same positive charge qp. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate...
Four charges are placed at the corners of a square:
Four charges are placed at the corners of a square: -2.0 nc at (0, 0) -4.0 nC at (0, 2.0 cm) 2.0 nC at (2.0 cm, 2.0 cm) -4.0 nC at (2.0 cm,0). a. What is the electric field at the center of the square? b. What is the force exerted on an electron placed at the center of the square?
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the size a = 1.0
cm . Positive charge with the magnitude of q = 6.5 nC is placed in
the center of the square.1. What is the magnitude of the force on the 6.5 nC charge in
the middle of the figure due to the four other charges?2. What is the direction of the force on the 6.5 nC...
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the sizea = 3.0 cm. Positive charge with the magnitude of q = 7.0 nC is placed in the center of the square.What is the direction of the force on the 7.0 nC charge in the
middle of the figure due to the four other charges? What is the
direction of the force on the 7.0 nC charge in the middle of...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn, and the two rightmost charges have the same positive charge qp Assume that the center charge q is negative. What is the direction of the total electric force.... on the charge q at the center of the square? What is the direction of the electric field at...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn , and the two rightmost charges have the same positive charge Assume that the center charge q is negative. What is the direction of the total electric force In on the charge q at the center of the square? What is the direction of the electric field...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
Dynamics
In the figure below, four point charges lie on the comers of a square, with a fifth point charge qn located at the center. The two left-most charges have the same negative charge qn while the two right-most charges have the same positive charge qp. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate...
