Homework Answers
Add Answer to:

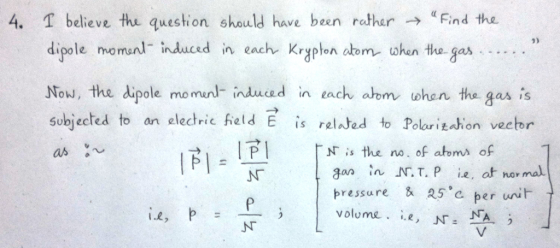

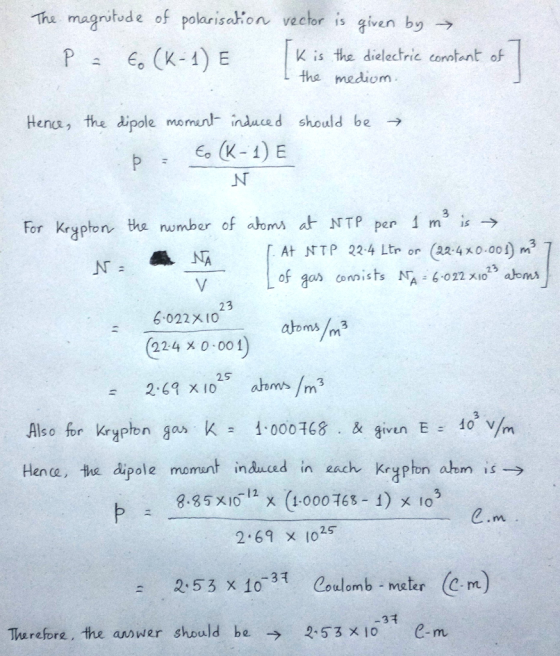

4. The dielectric constant of Krypton at 25°C and normal atmospheric pressure 000768. Find the dipole...
A parallel plate capacitor is composed of two lossy media with relative dielectric constant &ri 12...
A parallel plate capacitor is composed of two lossy media with relative dielectric constant &ri 12 and 82 3.5, and thickness di 1.5mm and d 3.5mm. Lossy nature manifests itself through a steady-state leakage current with the normal component Jn flowing across the interface between the two dielectric media which have electrical conductivity o1 2x 10-3 and a2 = 5 x 104 S/m, respectively. The two media have dielectric strength EMaxt = 60 MV/m and EMax2 25 MV/m respectively, where...
An electric field can induce an electric dipole in a neutral molecule (or atom) by pushing...
An electric field can induce an electric dipole in a neutral molecule (or atom) by pushing the positive and negative charges inside the molecule in opposite directions. The dipole moment of the induced dipole is directly proportional to the electric field at the molecule. That is, p⃗ =αE⃗ , where p⃗ is the induced dipole moment, α is called the polarizability of the molecule, and E⃗ is the electric field at the molecule. A stronger electric field at the molecule results in a...
An electric field can induce an electric dipole in a neutral molecule (or atom) by pushing...
An electric field can induce an electric dipole in a neutral molecule (or atom) by pushing the positive and negative charges inside the molecule in opposite directions. The dipole moment of the induced dipole is directly proportional to the electric field at the molecule. That is, p⃗ =αE⃗ , where p⃗ is the induced dipole moment, α is called the polarizability of the molecule, and E⃗ is the electric field at the molecule. A stronger electric field at the molecule results in a...
A dipole of moment 0.50 e nm is placed in a uniform electric field with a...
A dipole of moment 0.50 e nm is placed in a uniform electric field with a magnitude of 1.4 x 105 N/C. What is the magnitude of the torque on the dipole for each of the following situations? (a) the dipole is aligned with the electric field N m (b) the dipole is transverse to (perpendicular to) the electric field N-m (c) the dipole makes an angle of 28.5° with the direction of the electric field N m (d) Defining...
A dipole of moment 0.50 e·nm is placed in a uniform electric field with a magnitude...
A dipole of moment 0.50 e·nm is placed in a uniform electric field with a magnitude of 6.0 x 104 N/c. what is the magnitude of the torque on the dipole for each of the following situations? (a) the dipole is aligned with the electric field N m (b) the dipole is transverse to (perpendicular to) the electric field N m (c) the dipole makes an angle of 27° with the direction of the electric field N m (d) Defining...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given one by an external electric field in a process called charge separation, or polarization. In this process their internal charge distribution becomes distorted by the field, with the result that the region of a molecule on the side in the direction of the field gains a positive net charge, while the region on the other side gains a negative net charge. Both charges have...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given one by an external electric field in a process called charge separation, or polarization. In this process their internal charge distribution becomes distorted by the field, with the result that the region of a molecule on the side in the direction of the field gains a positive net charge, while the region on the other side gains a negative net charge. Both charges have...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given one by an external electric field in a process called charge separation, or polarization. In this process, their internal charge distribution becomes distorted by the field, which results in the region of a molecule on the side in the direction of the field gaining a positive net charge and the region on the other side gaining a negative net charge. Both charges have equal...
A dipole of moment 0.50 e . nm is placed in a uniform electric field with...
A dipole of moment 0.50 e . nm is placed in a uniform electric field with a magnitude of 1.2 x 105 N/C. what is the magnitude of the torque on the dipole for each of the following situations? (a) the dipale is aligned with the electric field (b) the dipole is transverse to (perpendicular to) the electric field N m (c) the dipole makes an angle of 31.5 with the direction of the electric field N m (d) Defining...
5. The solubility of CO2 in water at 25 °C and 1 atm is 0.034 mol/L,...
5. The solubility of CO2 in water at 25 °C and 1 atm is 0.034 mol/L, W CO2 in carbonated water, if CO2 has a partial pressure of 0.0003s solubility ot atmospheric conditions? (5 points) atm under normal 6. The atmosphere contains 0.93 mol% argon, what is the partial pressure of argon at normal conditions of 1 atm and 25 °C? If the solubility of argon in water is 0.0150 mo/L under normal atmospheric conditions, what is Henry's Law Constant...
A parallel plate capacitor is composed of two lossy media with relative dielectric constant &ri 12 and 82 3.5, and thickness di 1.5mm and d 3.5mm. Lossy nature manifests itself through a steady-state leakage current with the normal component Jn flowing across the interface between the two dielectric media which have electrical conductivity o1 2x 10-3 and a2 = 5 x 104 S/m, respectively. The two media have dielectric strength EMaxt = 60 MV/m and EMax2 25 MV/m respectively, where...
A dipole of moment 0.50 e nm is placed in a uniform electric field with a magnitude of 1.4 x 105 N/C. What is the magnitude of the torque on the dipole for each of the following situations? (a) the dipole is aligned with the electric field N m (b) the dipole is transverse to (perpendicular to) the electric field N-m (c) the dipole makes an angle of 28.5° with the direction of the electric field N m (d) Defining...
A dipole of moment 0.50 e·nm is placed in a uniform electric field with a magnitude of 6.0 x 104 N/c. what is the magnitude of the torque on the dipole for each of the following situations? (a) the dipole is aligned with the electric field N m (b) the dipole is transverse to (perpendicular to) the electric field N m (c) the dipole makes an angle of 27° with the direction of the electric field N m (d) Defining...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given one by an external electric field in a process called charge separation, or polarization. In this process their internal charge distribution becomes distorted by the field, with the result that the region of a molecule on the side in the direction of the field gains a positive net charge, while the region on the other side gains a negative net charge. Both charges have...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given one by an external electric field in a process called charge separation, or polarization. In this process their internal charge distribution becomes distorted by the field, with the result that the region of a molecule on the side in the direction of the field gains a positive net charge, while the region on the other side gains a negative net charge. Both charges have...
Some types of molecules that do not possess an intrinsic electric dipole moment can be given one by an external electric field in a process called charge separation, or polarization. In this process, their internal charge distribution becomes distorted by the field, which results in the region of a molecule on the side in the direction of the field gaining a positive net charge and the region on the other side gaining a negative net charge. Both charges have equal...
A dipole of moment 0.50 e . nm is placed in a uniform electric field with a magnitude of 1.2 x 105 N/C. what is the magnitude of the torque on the dipole for each of the following situations? (a) the dipale is aligned with the electric field (b) the dipole is transverse to (perpendicular to) the electric field N m (c) the dipole makes an angle of 31.5 with the direction of the electric field N m (d) Defining...
5. The solubility of CO2 in water at 25 °C and 1 atm is 0.034 mol/L, W CO2 in carbonated water, if CO2 has a partial pressure of 0.0003s solubility ot atmospheric conditions? (5 points) atm under normal 6. The atmosphere contains 0.93 mol% argon, what is the partial pressure of argon at normal conditions of 1 atm and 25 °C? If the solubility of argon in water is 0.0150 mo/L under normal atmospheric conditions, what is Henry's Law Constant...
