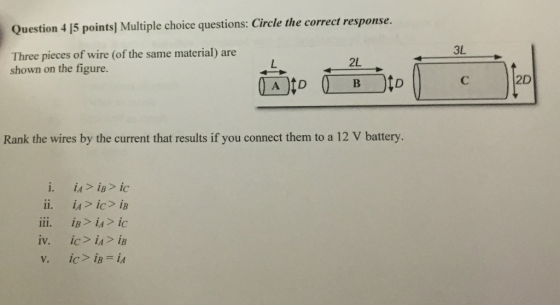

![Question 4 15 points] Multiple choice questions: Circle the correct response. Three pieces of wire (of the same material) are shown on the figure. Rank the wires by the current that results if you connect them to a 12 V battery. i. in iB ic iii. iB in ic iv. ic iA iB ics iB 3L 2D](http://img.homeworklib.com/questions/00a2c5a0-cc46-11ea-b2cb-999d26371612.png?x-oss-process=image/resize,w_560)
Homework Answers
resistance R= L/A
= resistivity and
is same for all the three.L= length and A = area
for A, r1= L/pi(0.5
D)2.
r1=4 L/pi
D2.
r2= (2L)/pi(0.5
D)2.
r2=8 L/pi
D2.
r3= (3L)/pi(
D)2.
r3=3 L/pi
D2.
so r2 >r1>r3
now current= i/r
so the resistor which as more resistance will have less current.
so ic>ia>ib
