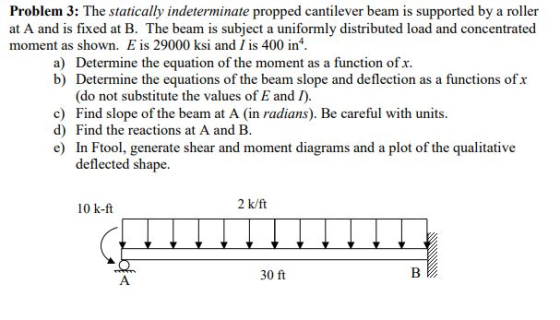

Problem 3: The statically indeterminate propped cantilever beam is supported by a roller at A and...
The statically indeterminate beam shown has a fixed support at A and roller supports at B...
The statically indeterminate beam shown has a fixed support at A and roller supports at B and C. The reactions at those supports are given. a. Draw the shear and moment diagrams for the beam. b. Determine the distance from the point of maximum moment in section BC to the nearest points of inflection (locations where moment = 0, which is where the beam's curvature changes direction). 500 lb 800 lb/ft 10.4 kft D 20 ft 20 ft 15 ft...
Problem 7: Consider the statically indeterminate beam shown below with the given loading. E- 29,000 ksi...
Problem 7: Consider the statically indeterminate beam shown below with the given loading. E- 29,000 ksi and I- 600 in a) Use the stiffness method to find the rotation at node 1. b) Determine the unknown reactions using the force-displacement relationships. c) Draw the shear and moment diagrams for the beam. 12 k 2
Please show work Answer shown below Problem 7: Consider the statically indeterminate beam shown below with...
Please show work
Answer shown below
Problem 7: Consider the statically indeterminate beam shown below with the given loading. E-29,000 ksi and I-600 in. Use the stiffness method to find the rotation at node1 Draw the shear and moment diagrams for the beam. 12 k a) c) 18 ft Problem 7: a) 82.01 x 10-3rad b) P7.6k, M2-33.7k ft, P2 4.4k c) 7.0 4.4 45.6 33.7
Problem 1 Indeterminate Beam Reactions (50 pts.) With reference to Figure 1, determine the beam reactions...
Problem 1 Indeterminate Beam Reactions (50 pts.) With reference to Figure 1, determine the beam reactions (forces and moments). Use the slope deflection method. Draw the shear and bending moment diagrams E 29,000 ksi I 1830 in FIGURE 1 3
A 8 kip load is applied at the center of a propped cantilever wood beam (E...
A 8 kip load is applied at the center of a propped cantilever wood beam (E 1,200 ksi, and I - 200 in4). If the span length of the beam is 11 ft, what is the centerline deflection, in inches, of the beam?
For the continuous beam shown, compute the support reactions using the method of consistent defor...
draw the shear and bending moment diagrams also please
For the continuous beam shown, compute the support reactions using the method of consistent deformations by taking the reaction at support B as redundant. Also, draw the shear and bending moment diagrams. The beam is subjected to a 20 kips concentrated load at the middle of the left span plus a 1.5 inch settlement of support B. Use deflection formulas to determine deflections at B. Assume E-29000 ksi and I-750 in...
Problem 1 Indeterminate Beam Reactions (50 pts.) With reference to Figure 1, determine the beam reactions (forces and m...
Problem 1 Indeterminate Beam Reactions (50 pts.) With reference to Figure 1, determine the beam reactions (forces and moments). Use the slope- deflection method. Draw the shear and bending moment diagrams. E 29,000 ksi I- 1830 in' FICURE E-29,000 ks1 1.5 나 3 24-o oo l lo.o
Q1. Statically indeterminate beam analysis. (30 marks) a) Calculate the BMs at all the joints of the beam shown in...
Q1. Statically indeterminate beam analysis. a) Calculate the BMs at all the joints of the beam shown in problem 11.7 (p. 491) using the slope deflection method.b) Calculate the BMs at all the joints of the same beam shown in problem 11.7 (p. 491) using the moment distribution method. c) Compare the values of BMs obtained using the two methods a) and b) and comment. 11-10. Determine the moments at A, B, and C, then draw the moment diagram for the beam. The...
DE = 29 Question 4: Indeterminate Beam Design and Deflection A 2014-T6 aluminium cantilever beam is...
DE = 29
Question 4: Indeterminate Beam Design and Deflection A 2014-T6 aluminium cantilever beam is rigidly fixed to a wall and supported at the free end with a roller support, shown below. The beam is loaded with a distributed load, W, of 10kN/m and a point load, P of 55kN. Both the distributed load and the point load act in the direction shown in the image below. Note, the parameter DE is related to your student number as described...
Draw the Shear Force (V) and Bending Moment (MI) diagrams of statically indeterminate beam shown in...
Draw the Shear Force (V) and Bending Moment (MI) diagrams of statically indeterminate beam shown in figure using “Force Method”. The (roller) support at "B" settles 35 mm. The moment of inertia is given by (1) for regions "AB", "BC" and "CD"; however it is equal to (21) for the region “DE”. ("B" is the roller and “E" is the fixed type of support). [The flexural rigidity: EI=40000 kNm] 60 KN y 10 kN/m A - Tu (21) 1.5m 11...
The statically indeterminate beam shown has a fixed support at A and roller supports at B and C. The reactions at those supports are given. a. Draw the shear and moment diagrams for the beam. b. Determine the distance from the point of maximum moment in section BC to the nearest points of inflection (locations where moment = 0, which is where the beam's curvature changes direction). 500 lb 800 lb/ft 10.4 kft D 20 ft 20 ft 15 ft...
Problem 7: Consider the statically indeterminate beam shown below with the given loading. E- 29,000 ksi and I- 600 in a) Use the stiffness method to find the rotation at node 1. b) Determine the unknown reactions using the force-displacement relationships. c) Draw the shear and moment diagrams for the beam. 12 k 2
Please show work
Answer shown below
Problem 7: Consider the statically indeterminate beam shown below with the given loading. E-29,000 ksi and I-600 in. Use the stiffness method to find the rotation at node1 Draw the shear and moment diagrams for the beam. 12 k a) c) 18 ft Problem 7: a) 82.01 x 10-3rad b) P7.6k, M2-33.7k ft, P2 4.4k c) 7.0 4.4 45.6 33.7
Problem 1 Indeterminate Beam Reactions (50 pts.) With reference to Figure 1, determine the beam reactions (forces and moments). Use the slope deflection method. Draw the shear and bending moment diagrams E 29,000 ksi I 1830 in FIGURE 1 3
A 8 kip load is applied at the center of a propped cantilever wood beam (E 1,200 ksi, and I - 200 in4). If the span length of the beam is 11 ft, what is the centerline deflection, in inches, of the beam?
draw the shear and bending moment diagrams also please
For the continuous beam shown, compute the support reactions using the method of consistent deformations by taking the reaction at support B as redundant. Also, draw the shear and bending moment diagrams. The beam is subjected to a 20 kips concentrated load at the middle of the left span plus a 1.5 inch settlement of support B. Use deflection formulas to determine deflections at B. Assume E-29000 ksi and I-750 in...
Problem 1 Indeterminate Beam Reactions (50 pts.) With reference to Figure 1, determine the beam reactions (forces and moments). Use the slope- deflection method. Draw the shear and bending moment diagrams. E 29,000 ksi I- 1830 in' FICURE E-29,000 ks1 1.5 나 3 24-o oo l lo.o
DE = 29
Question 4: Indeterminate Beam Design and Deflection A 2014-T6 aluminium cantilever beam is rigidly fixed to a wall and supported at the free end with a roller support, shown below. The beam is loaded with a distributed load, W, of 10kN/m and a point load, P of 55kN. Both the distributed load and the point load act in the direction shown in the image below. Note, the parameter DE is related to your student number as described...
Draw the Shear Force (V) and Bending Moment (MI) diagrams of statically indeterminate beam shown in figure using “Force Method”. The (roller) support at "B" settles 35 mm. The moment of inertia is given by (1) for regions "AB", "BC" and "CD"; however it is equal to (21) for the region “DE”. ("B" is the roller and “E" is the fixed type of support). [The flexural rigidity: EI=40000 kNm] 60 KN y 10 kN/m A - Tu (21) 1.5m 11...
