Homework Answers
We know that critical speed of shaft in revolutions per second (RPS) is equal to the natural frequencyof transverse vibration in Hertz.
and

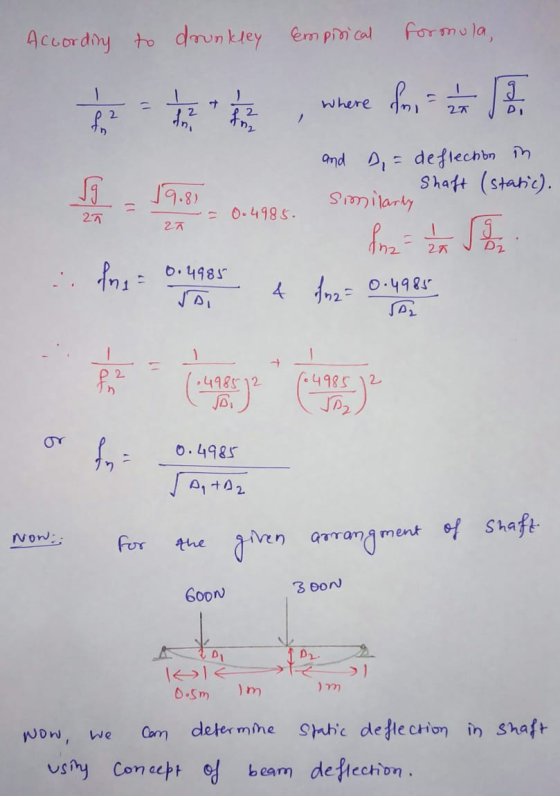

To calculate the natural frequency of transverse vibration, i will use drunkley method.
Drunkley method is semi-emprical,it gives approximate result,

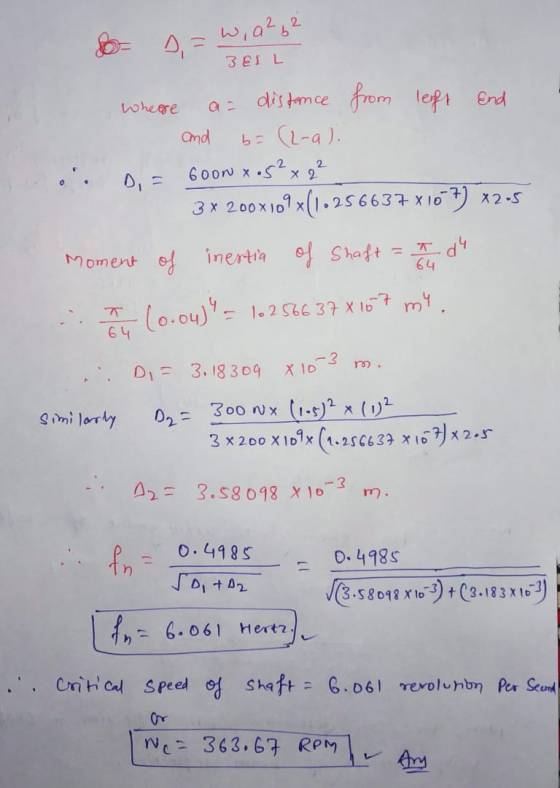

Critical speed of shaft = 363.67 RPM (revolution per minute)
