Homework Answers

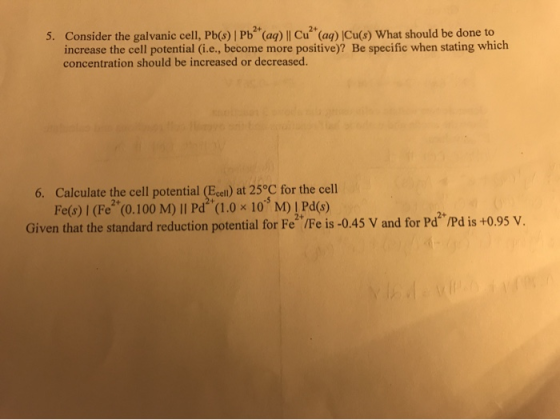

#5:
The Nernst equation for the given Galvanic cell is:
Ecell = Eocell - (0.0591/n)*log([Pb2+(aq)] / [Cu2+(aq)])
In order to increase cell potential, Ecell, the value of log([Pb2+(aq)] / [Cu2+(aq)]) must decrease.
log([Pb2+(aq)] / [Cu2+(aq)]) will decrease when the ratio: [Pb2+(aq)] / [Cu2+(aq)] will decrease.
[Pb2+(aq)] / [Cu2+(aq)] will decrease when either [Cu2+(aq)] concentration is increased or [Pb2+(aq)] concentration is decreased
(Answer)
#6:
Since Pd2+(aq) has higher reduction potential, it undergoes reduction and Fe(s) undergoes oxidation. Hence
EoOxi = - (-0.45V) = 0.45 V
EoRed = 0.95 V
Eocell = EoOxi + EoRed = 0.45V + 0.95V = 1.40 V
The Nernst equation for the given Galvanic cell is:
Ecell = Eocell - (0.0591/n)*log([Fe2+(aq)] / [Pd2+(aq)])
Since Pd2+(aq) is reduced to Pd(s), 2 electrons are transferred. Hence n = 2
=> Ecell = 1.40V - (0.0591/2)*log(0.100 / 1.0*10-5)
=> Ecell = 1.2818 V (Answer)
