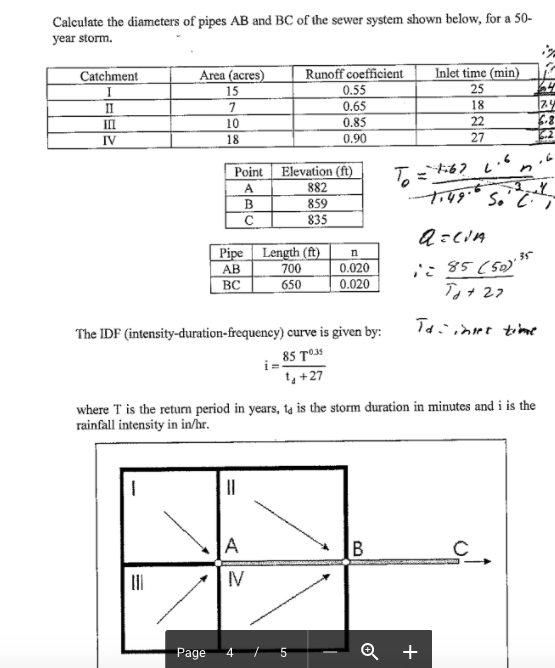

Calculate the diameters of pipes AB and BC of the sewer system shown below, for a...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

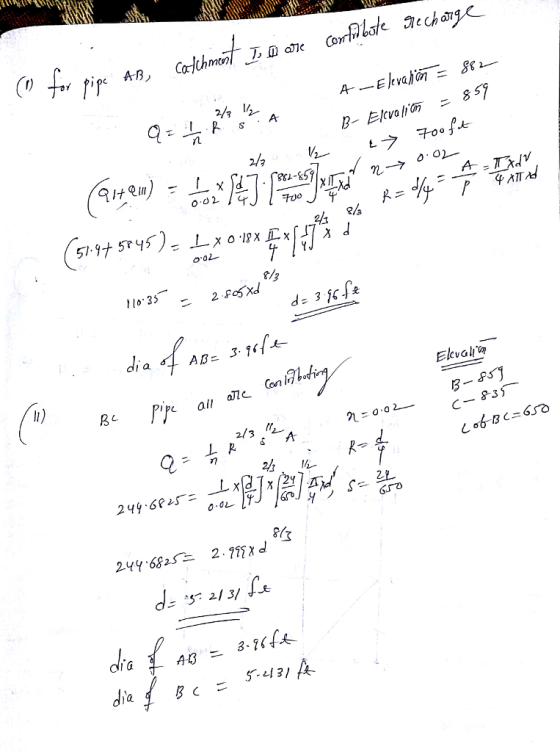

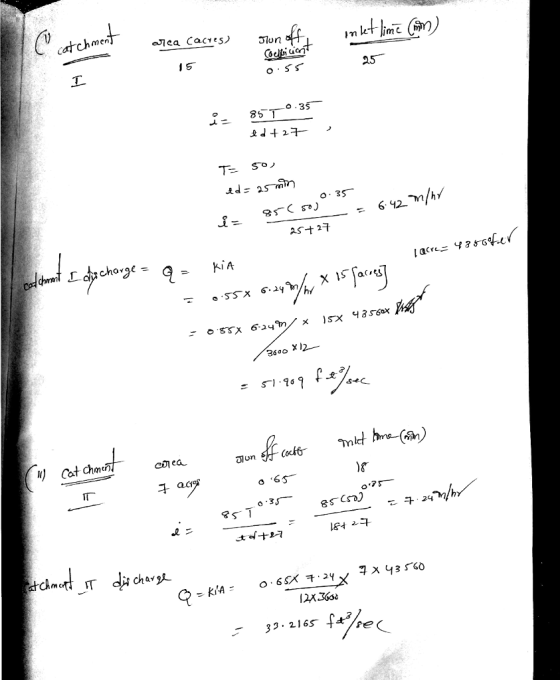

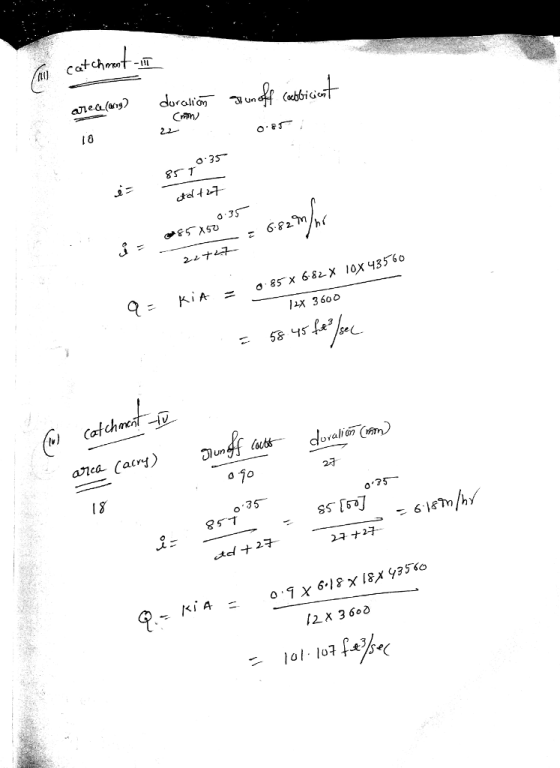

Slon I ST SoJ as+ 27 ac, Cat chme aci 85. T 184 4 32, 2165 catchot- I0 0.35 よ x 3600 o 35 2구ナ2구.. fl Klg t a Elevall 8K 5 4131

Answer 2

Similar Homework Help Questions

Consider the summarized in the tables below. Use a 25-year return period to determine the rainfall...

Consider the summarized in the tables below. Use a 25-year return period to determine the rainfall intensity i. Use a Manning's n 0.014. storm sewer shown below. The characteristics of the pipes and the drainage area are Prepare a spreadsheet to perform the necessary calculations. Determine suitable diameters for each pipe. O 1.1 Pipe l From Inlet To Inlet」Length(ft) Slope(ft/ft) 1.1 1.2 2.1 2.1 2.1 3.1 800 600 700 0.003 0.005 0.002 Drainage Area Runoff Inlet Time Area (acres) Coefficient...
Please help water resources 2. For the drainage system as shown in figure below, determine the...

Please help water resources 2. For the drainage system as shown in figure below, determine the design flow and determine the pipe size for each of the sewer section by rational method. The rainfall intensity (in/hr) is given by the IDF curve in second figure. The design frequency storm is 10-year storm. Flow from each area is shown by an arrow. The flow velocity in each pipe can be calculated by Manning's equation or Hazen-William equation by assuming a full...
