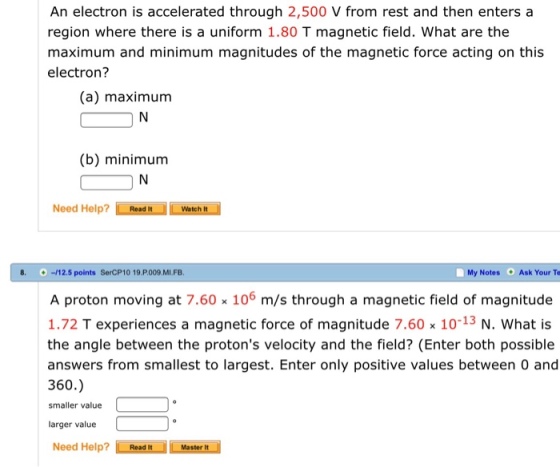

An electron is accelerated through 2,500 V from rest and then enters a region where there...

Question

Question

science physics

Answer 1

Answer #1

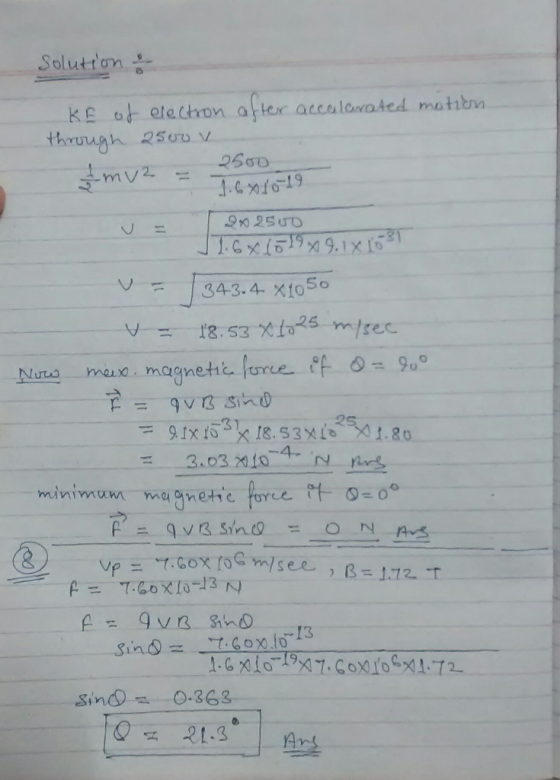

Solutton kE of elechon aster acca lowated matibm 550 343.4. X1050 . mero. magnete lurce-郎0-900 minimum magnetic force 0-00 Q

Answer 2

Similar Homework Help Questions

An electron is accelerated from rest through a potential difference of 2600 V and then enters...

An electron is accelerated from rest through a potential difference of 2600 V and then enters a region where there is a uniform 1.40-T magnetic field. a) What is the magnitude of the magnetic force on the electron if it is moving in the direction of the magnetic field? b) What is the magnitude of the magnetic force on the electron if it is moving opposite to the direction of the magnetic field? c) What is the magnitude of the...
An electron is accelerated through 2400v from rest. It then enters a region of space where...

An electron is accelerated through 2400v from rest. It then enters a region of space where B=1.7T uniformly. find the speed of the electron. find the maximum force that canbe exerted on the electron by the above force. Find the minimum force also.
An electron accelerated from rest through a voltage of 710 V enters a region of constant...

An electron accelerated from rest through a voltage of 710 V enters a region of constant magnetic field. If the electron follows a circular path with a radius of 26 cm , what is the magnitude of the magnetic field? Express your answer using two significant figures.

An electron accelerated from rest through a voltage of 760 V enters a region of constant...

An electron accelerated from rest through a voltage of 760 V enters a region of constant magnetic field. Part A If the electron follows a circular path with a radius of 27 cm, what is the magnitude of the magnetic field? Express your answer using two significant figures. SubmitP Previous Answers Request Answer X Incorrect: Try Again; 15 attempts remaining Provide Feedback
An electron accelerated from rest through a voltage of 550V enters a region of constant magnetic...

An electron accelerated from rest through a voltage of 550V enters a region of constant magnetic field. If the electron follows a circular path with a radius of 17cm, what is the magnitude of the magnetic field? how much time will it take for the particle to complete one orbit?
2.032 4. An electron is accelerated through potential difference of 150 V from rest and then...

2.032 4. An electron is accelerated through potential difference of 150 V from rest and then enters a region of uniform magnetic field traveling perpendicular to the field. The magnitude of magnetic field is 0.50 T. a) What is the magnitude of magnetic force acting on the electron (5.8x10-14 N), and b) what is the radius of the path? (8.3x10 m) Note: The mass of electron is 9.11 x 103 kg, and the charge of electron is 1.6x 10-1 C...

2. An electron is accelerated from rest through a potential difference Δνι-800 V, and enters the...

2. An electron is accelerated from rest through a potential difference Δνι-800 V, and enters the gap between two parallel plates having a separation d-20 mm and potential difference AVF 100 V. The lower plate is at higher potential than the upper. Assume that the electron's velocity is perpendicular to the electric field vector between the plates (i) (a) Calculate the speed of the electron after it travels through the potential difference of A,-800 V. (b) Draw the electric field...
An electron accelerated from rest through a voltage of 770 Venters a region of constant magnetic...

An electron accelerated from rest through a voltage of 770 Venters a region of constant magnetic field. Part A If the electron follows a circular path with a radius of 25 cm , what is the magnitude of the magnetic field? Express your answer using two significant figures.
An electron is accelerated from rest by a potential difference of 400 V. It then enters...

An electron is accelerated from rest by a potential difference of 400 V. It then enters a uniform magnetic field of magnitude 225 mT with its velocity perpendicular to the field. (a) Calculate the speed of the electron. m/s (b) Calculate the radius of its path in the magnetic field. m

• An electron, at rest, is accelerated through region 1, which has a 5000 V potential difference. It then enters region...

• An electron, at rest, is accelerated through region 1, which has a 5000 V potential difference. It then enters region 2 where there is only a uniform magnetic field and it undergoes uniform circular motion (in a plane) of radius 0.954 mm. After subtending half a circle, the electron exits region 2, traveling in the opposite direction it was before entering region 2. (a) Draw a physical representation of this situation, complete with the direction of the electric and...
