Question

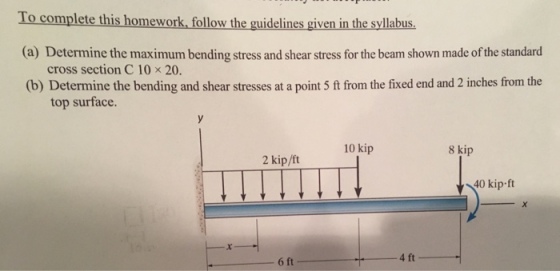

To complete this homework, follow the guidelines given in the syllabus (a) Determine the maximum bending stress and shear stress for the beam shown made of the standard cross section C 10 × 20. (b) Determine the bending and shear stresses at a point 5 ft from the fixed end and 2 inches from the top surface. 10 kip 8 kip 2 kip/ft 40 kip-ft 4 ft 6 ft
0 0
Add a comment Improve this question Transcribed image text
Answer #1

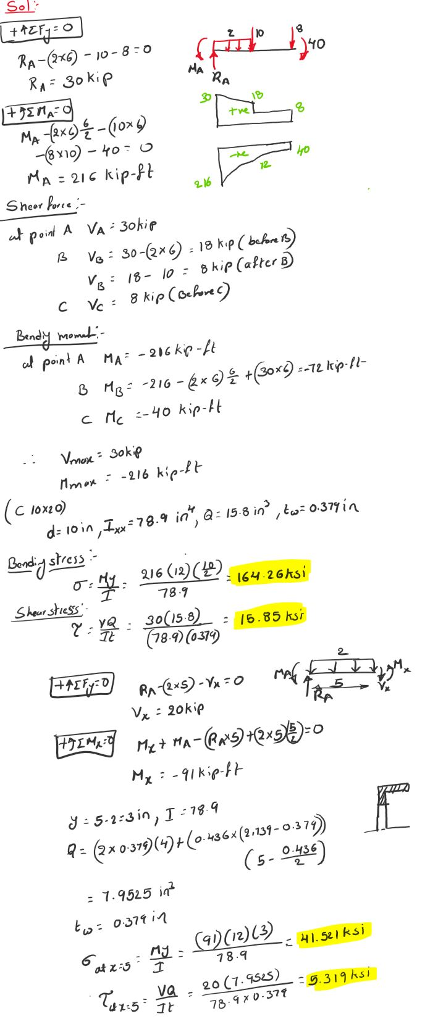

Sol RA08 ro MA RA 夕 yo Sheer Porte;- Gend^ strei» 216 (G2) ) 78-9 30(15.8 789) (05p) 16.85 ksi 3 5.23in, I 199 5- 0436 7.9525
