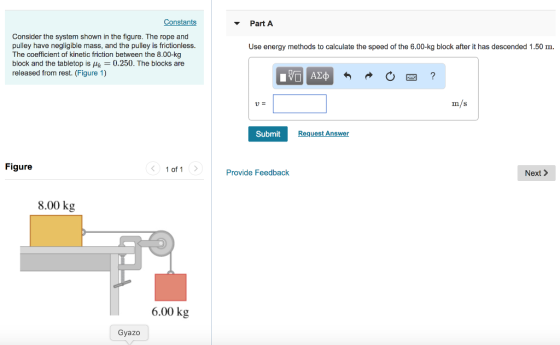

Constants Part A Consider the system shown in the figure. The rope and pulley have negligible...
Consider the system shown in the figure (Figure 1). The rope and pulley have negligible mass,...
Consider the system shown in the figure (Figure 1). The rope and pulley have negligible mass, and the pulley is frictionless. Initially the 6.00-kg block is moving downward and the 8.00-kg block is moving to the right, both with a speed of 0.300 m/s . The blocks come to rest after moving 3.00 m . Part A Use the work-energy theorem to calculate the coefficient of kinetic friction between the 8.00-kg block and the tabletop.
Two blocks are connected by a massless rope slung over a massless, frictionless pulley at the...
Two blocks are connected by a massless rope slung over a massless, frictionless pulley at the edge of a table. One block moves horizontally along the tabletop; it has a mass of 8.00 kg. The other block is freely-hanging off the edge of the pulley; it has a mass of 6.00 kg. Initially, both blocks have a speed of 0.900 m/s; the blocks come to rest after they have moved 2.00 m. What is the coefficient of kinetic friction between...
The pulley in the figure (Figure 1) has radius R and a moment of inertia I. The rope does not slip...
The pulley in the figure (Figure 1) has radius R and a moment of inertia I. The rope does not slip over the pulley, and the pulley spins on a frictionless axle. The coefficient of kinetic friction between block A and the tabletop is mu_k . The system is released from rest, and block B descends. Block A has mass m_A and block B has mass m_B Use energy methods to calculate the speed of block B as a function of the distance d that it has descended. Express your answer in terms of the variables m_A, m_B, R, I, mu_k, d and appropriate constants.
Review Constants part. Consider the system of two blocks shown in (Figure 1). The blocks are...
Review Constants part. Consider the system of two blocks shown in (Figure 1). The blocks are released from rest. While the two blocks are moving, the tension in the light rope that connects them is 35.0 N. Part 6 If the work-energy theorem is applied to the two blocks considered together as a composite system, use the theorem to find the network done on the system during the 0.900 m downward displacement of the 6.00 kg block. Express your answer...
3 (15 points) The pulley in the figure has radius R and a moment of inertia I. The rope does not slip over the pulley,...
3 (15 points) The pulley in the figure has radius R and a moment of inertia I. The rope does not slip over the pulley, and the pulley spins on a frictionless axle. The system is released from rest, and the block descends. Block A has mass my, and block B ha mass mg. Use energy methods to calculate the speed of block B as a function of the distance d that it has descended. Your answer may contain R,...
Problem#6 A system comprising blocks, a light frictionless pulley, a frictionless incline, and connecting ropes is shown in the figure. The 9.0-kg block accelerates downward when the system...
Problem#6 A system comprising blocks, a light frictionless pulley, a frictionless incline, and connecting ropes is shown in the figure. The 9.0-kg block accelerates downward when the system is released from rest. The tension in the rope connects the 6.0-kg block and the 4.0-kg block. (a) Draw the free body diagrams (b) Find the tension in the rope (c) Find the reaction of the incline surface on each block rn +1 30° 10-9
Problem#6 A system comprising blocks, a light...
The two blocks in the figure(Figure 1) are connected by a massless rope that passes over a pulley. The pulley is 12 cm i...
The two blocks in the figure(Figure 1) are connected by a
massless rope that passes over a pulley. The pulley is 12 cm in
diameter and has a mass of 3.0 kg . As the pulley turns, friction
at the axle exerts a torque of magnitude 0.52 N⋅m .Part AIf the blocks are released from rest, how long does it take the
4.0 kg block to reach the floor?
In the figure below, two blocks are connected over a pulley. The mass of block A...
In the figure below, two blocks are connected over a pulley. The mass of block A is 22 kg 3. and the coefficient of kinetic friction between A and the incline is i* =028. The mass of block B is 18 kg. Angle 0 is 30°. The system is prepared at rest but it starts moving as soon as it is released Frictionless massless pulley Assume that The system is subject to the regular force of gravity. The connecting rope...
The two blocks in the figure(Figure 1) are connected by a massless rope that passes over a pulley
The two blocks in the figure(Figure 1) are connected by a massless rope that passes over a pulley. The pulley is 14 cm in diameter and has a mass of 3.0 kg As the pulley turns, friction at the axle exerts a torque of magnitude 0.53 N.m. Part A If the blocks are released from rest, how long does it take the 4.0 kg block to reach the floor?
The two blocks in the figure Figure 1) are connected by a massless rope that passes over a pulley
The two blocks in the figure Figure 1) are connected by a massless rope that passes over a pulley. The pulley is 14 cm In diameter and has a mass of 2.1 kg. As the pulley turns, friction at the axle exerts a torque of magnitude 0.52 N·m. Part A If the blocks are released from rest, how long does it take the 4.0 kg block to reach the floor?
The pulley in the figure (Figure 1) has radius R and a moment of inertia I. The rope does not slip over the pulley, and the pulley spins on a frictionless axle. The coefficient of kinetic friction between block A and the tabletop is mu_k . The system is released from rest, and block B descends. Block A has mass m_A and block B has mass m_B Use energy methods to calculate the speed of block B as a function of the distance d that it has descended. Express your answer in terms of the variables m_A, m_B, R, I, mu_k, d and appropriate constants.
Review Constants part. Consider the system of two blocks shown in (Figure 1). The blocks are released from rest. While the two blocks are moving, the tension in the light rope that connects them is 35.0 N. Part 6 If the work-energy theorem is applied to the two blocks considered together as a composite system, use the theorem to find the network done on the system during the 0.900 m downward displacement of the 6.00 kg block. Express your answer...
3 (15 points) The pulley in the figure has radius R and a moment of inertia I. The rope does not slip over the pulley, and the pulley spins on a frictionless axle. The system is released from rest, and the block descends. Block A has mass my, and block B ha mass mg. Use energy methods to calculate the speed of block B as a function of the distance d that it has descended. Your answer may contain R,...
Problem#6 A system comprising blocks, a light frictionless pulley, a frictionless incline, and connecting ropes is shown in the figure. The 9.0-kg block accelerates downward when the system is released from rest. The tension in the rope connects the 6.0-kg block and the 4.0-kg block. (a) Draw the free body diagrams (b) Find the tension in the rope (c) Find the reaction of the incline surface on each block rn +1 30° 10-9
Problem#6 A system comprising blocks, a light...
In the figure below, two blocks are connected over a pulley. The mass of block A is 22 kg 3. and the coefficient of kinetic friction between A and the incline is i* =028. The mass of block B is 18 kg. Angle 0 is 30°. The system is prepared at rest but it starts moving as soon as it is released Frictionless massless pulley Assume that The system is subject to the regular force of gravity. The connecting rope...
