Find i1, i2, i3, i4 and i5 (answer i1 = 0.5A, i2 = 5.308 A, i3...

Question

Question

20 V 10 V ОЗА

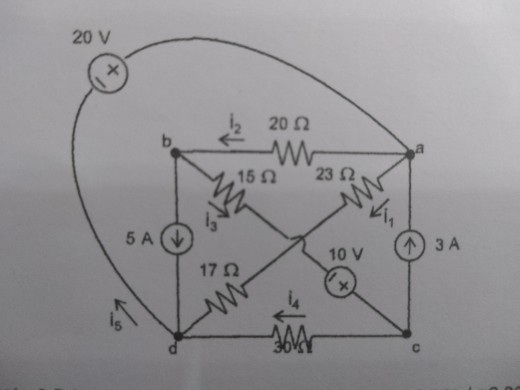

Find i1, i2, i3, i4 and i5
(answer i1 = 0.5A, i2 = 5.308 A, i3 = 0.308 A,
i4 = -2.692 A, i5 = 2.808 A)

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

calculate I1, I2, I3, I4, I5, and I6 1KI 4.7K I2 + V 4 V33 2.7k?...

calculate I1, I2, I3, I4, I5, and I6 1KI 4.7K I2 + V 4 V33 2.7k? v3を2.7ΚΩ 3.3ΚΩ
calculate I1 I2 I3 I4 and I5. find the total power loss in the resistors and...

calculate I1 I2 I3 I4 and I5. find the total power loss in the resistors and verify that it equals the power delivered by the battery. 50 10Ω 35V 00 102 Fig. 1.21
Find currents I1 I2 I3 I4 I5 using loop (mesh) analysis, pleases use the directions indicated...

Find currents I1 I2 I3 I4 I5 using loop (mesh) analysis, pleases use the directions indicated for the currents. Please show work. Thanks in advance 2KC2 2mA 12V KC2 I, 2 1KS2 5 2K2 2KQ 4 1K(2

Using the mesh-current analysis, derive mesh current equations for i1, i2, i3, i4, i5, and i6....

Using the mesh-current analysis, derive mesh current equations for i1, i2, i3, i4, i5, and i6. The values of dependent sources should be replaced with the expressions of mesh currents in KVL equations. 1. (20 points) Using the mesh-current analysis, derive mesh current equations for ii, i2, iz, 14, 15, and i6. The values of dependent sources should be replaced with the expressions of mesh currents in KVL equations. Do not need to simplify the equations and do not solve...
Use Kirchhoff's rules to calculate currents I, I1, I2, I3, I4, and I5. One Power Supply...

Use Kirchhoff's rules to calculate currents I, I1, I2, I3, I4, and I5. One Power Supply Multifood Circuit With the power supply unplugged, connect the circuit as shown in Figure 1 with R_1 = 20 ohm, R_2 = 50 ohm, R_3 = 100 ohm, R_4 = 25 ohm, and R_5 = 75 ohm. After the circuit is checked by your instructor, plug in the power supply, turn on the power and adjust the total voltage V to approximately 8.00 V...
use node analysis to find I1, I2, I3 and I4 Use Node Analysis To Find I.,...

use node analysis to find I1, I2, I3 and I4 Use Node Analysis To Find I., I2 I3, IA IA V 6A LI. 200 172 & 1or 302 120A &GR

Looking for I1 , I2 , I3 equation to find I1 is I1= I2 + I3...

Looking for I1 , I2 , I3 equation to find I1 is I1= I2 + I3 21= 14.5I1 + 12.5I3 12= -11I2- 11.5I3
Calculate the values of U1, U3, U4, U5, I1, I2, I3, I4, RT and IT in...

Calculate the values of U1, U3, U4, U5, I1, I2, I3, I4, RT and IT in the circuit below. Ry=32 Iz? Rz=682 U=6V 1=? Uz=? Rs=? 1=? Ry=622 V=? Ri=352 HE U=? U= 24 V
Calculate the current i5 in the following configuration: Use the following data: i1 = 5.95 A,...

Calculate the current i5 in the following configuration: Use the following data: i1 = 5.95 A, i2 = 7.00 A, i3 = 6.45 A, i4 = 8.50 A.

Current through Rı, R2, Rz and R, are lablelled as I1, I2, I3 and I4 in...

Current through Rı, R2, Rz and R, are lablelled as I1, I2, I3 and I4 in the circuit below. If Rı = R2 = R3 = 2 Rd, which statement is true? € R1 w WWW 14 R3 R4 RE O I = 12 < 13 < 1 O I = 12 > 13 > I4 OI = 12 = 13 > IA Oh = 12 = 13 < It
