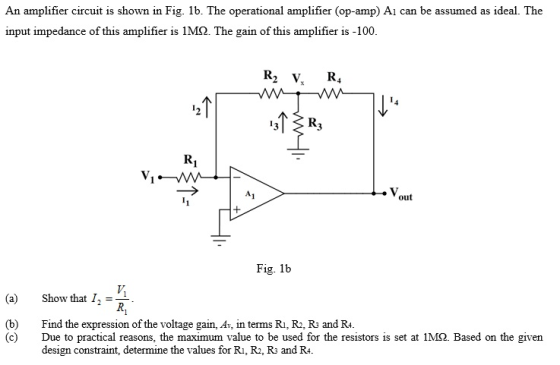

An amplifier circuit is shown in Fig. 1b. The operational amplifier (op-amp) Ai can be assumed...
Exercise 10: Find the gain of the amplifier circuit shown below. Assume op-amp is ideal and...

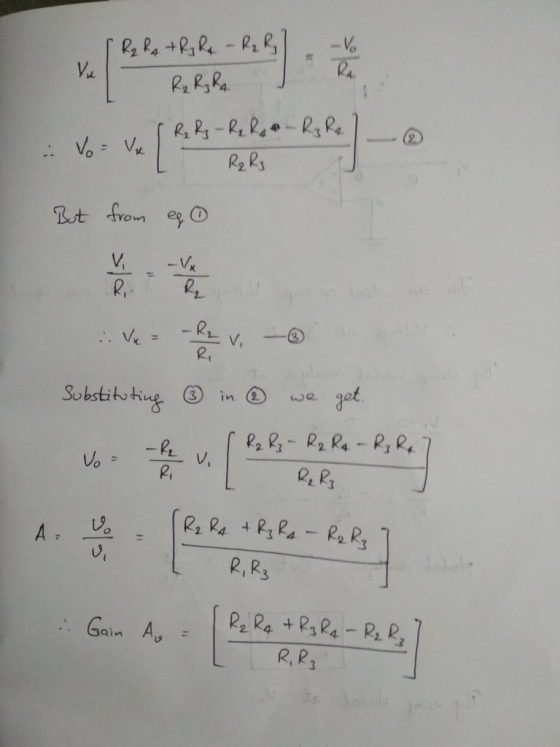

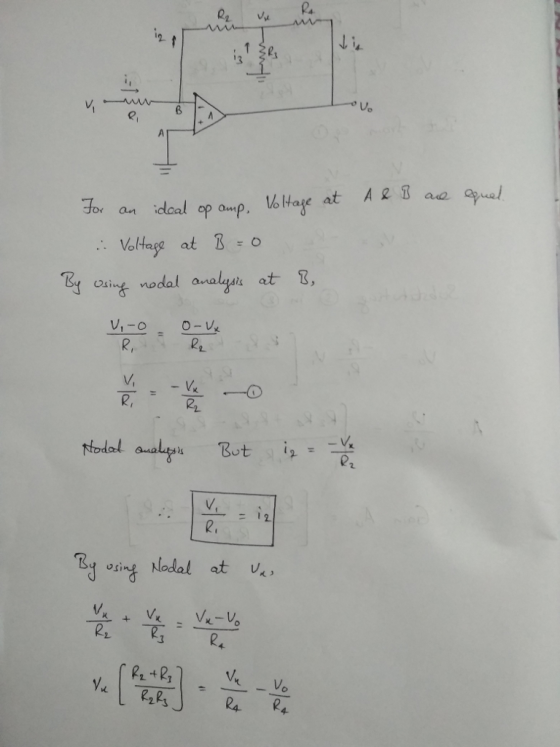

Exercise 10: Find the gain of the amplifier circuit shown below. Assume op-amp is ideal and RI=R2-R3-3 R and R4-R. V. R
For the Op Amp circuit in Fig. 2.1. Infer the expression of Yout () / vin...
For the Op Amp circuit in Fig. 2.1. Infer the expression of Yout () / vin (s). (5) R2 R w 200 K2 RS R www + Vina(s) 40 KR 40 ΚΩ R4 w 50 KS2 50 ΚΩ R + V out in out 1 Fig. 2.1. Fig. 2.2 *For the Op Amp in Fig. 2.2. Evaluate the Av. (5) *Recommend a generalized Op Amp amplifier which processes sin wave into a cosine wave (1-5), a square wave into a...
2. Consider this non-inverting op-amp amplifier This non-inverting amplifier circuit uses an operational amplifier as a...
2. Consider this non-inverting op-amp amplifier This non-inverting amplifier circuit uses an operational amplifier as a building block. Do around. The op-amp's gain is a "little a"), but the overall amplifier's gain is A Cbig A. Derive the value of the output voltage, ve, as a function of the input voltage not confuse the non-inverting amplifier with the operational amplifier that it is built a. and the op-amp's gain a. What is the overall amplifier's gain Avo/v? (20pts) b. We...
The schematic circuit of a noninverting amplifier is shown in Fig.1a
The schematic circuit of a noninverting amplifier is shown in Fig.1aThe circuit specifications are: V1=0.1V Again=30dB R3=100kΩ R1=10kΩ(a) Determine the output voltage of the amplifier, assume the op-amp is ideal.(b) Determine the resistance of R2, assume the op-amp is ideal.(c) Does the value of R1 affect the output of the amplifier, if the op-amp is
ideal? Justify your answer.(d) Does the value of R1 affect the output of the amplifier, if the op-amp is
non-ideal and has only an input offset voltage shown in...
Figure 2 shows a multiple op-amp networks combined to produce a gain amplifier circuit. For the...
Figure 2 shows a multiple op-amp networks combined to produce a gain amplifier circuit. For the given circuit: (i) Name all the type of op-amp circuits shown by Op-Amp 1 until Op-Amp 5. (ii) Calculate the output of each Op-Amp 1 until Op-Amp 4. Assume Vin = 10mV (iii) Determine the output voltage at the last Op-Amp 5. From this value, calculate the gain produced by this Op-Amp network in overall, by using Av=Vos / Vin equation. [10 Marks] CO3,...
(33 points) Assuming an ideal op-amp and given the resistor values, calculate both the voltage gain...
(33 points) Assuming an ideal op-amp and given the resistor values, calculate both the voltage gain and the input resistance. Ri-5000, R2-12000, R3-14000, R-6000, R5-14000, R6-700Ω Rs R2 Vin+ R3 Vout Rs R4 The voltage gain The input resistance Rin - help (numbers) Ω help (numbers)
The schematic circuit of a noninverting amplifier is shown in Fig.1a
<p><p><p><p>The schematic circuit of a noninverting amplifier is shown in Fig.1a</p><p><br/></p><p>The circuit specifications are:
V1=0.1V
Again=30dB
R3=100kΩ
R1=10kΩ<img src="https://img.homeworklib.com/uploads/ueditor/20210701/1625135960212042.jpg" title="1625135960212042.jpg" alt="Capture.JPG"/></p><p><br/></p><p><br/></p><p>(a) Determine the output voltage of the amplifier, assume the op-amp is ideal. </p><p><br/></p><p><br/></p><p>(b) Determine the resistance of R2, assume the op-amp is ideal.</p><p><br/></p><p>(c) Does the value of R1 affect the output of the amplifier, if the op-amp is
ideal? Justify your answer.</p><p><br/></p><p>(d) Does the value of R1 affect the output of the amplifier, if the op-amp is
non-ideal and has...
6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100...
6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100 , and R2 50 . Ry VR R.y 7. What is the output voltage (Vo) of the summing op-amp below? 1000 kn 200 k2 50 k2 +5 V 100 k2 -5 V V. out 8. For the operational amplifier circuit depicted below: a. Determine Vout in terms of the resistors: Ri, R2, R3, R4 and I R1 qut R- (current source) for the operational...
The gain of the non-inverting amplifier is set by the values of the resistors connected to the op...
The gain of the non-inverting amplifier is set by the values of the resistors connected to the op- .amp can never be less than 1, even when RB is very high and RT equals 0 A voltage divider is a circuit involving two resistors in series All above is .1 correct Which statement not correct for Ideal operational amplifier Infinite open loop gain AOL for differential .1 .signa Zero gain for the common mode signal .Zero output impedance .noninfinite bandwidth...
need help for d,e,f OP-Amp Circuit R-20k Fig 1 1. Design an operational amplifier circuit using an LM741 op-amp an...
need help for d,e,f
OP-Amp Circuit R-20k Fig 1 1. Design an operational amplifier circuit using an LM741 op-amp and a 10k the diagram shown in Fig 1 to produce the output voltage feedback resistor that represents Clearly write your ID number in Table 1 Table 1 Your ID Number 3775。73 . Set up the roquired gain numbers as follows and write them in Table 2 Ai- the last digit of your ID number+5 A2-the 2ed last digit of your...
Exercise 10: Find the gain of the amplifier circuit shown below. Assume op-amp is ideal and RI=R2-R3-3 R and R4-R. V. R
For the Op Amp circuit in Fig. 2.1. Infer the expression of Yout () / vin (s). (5) R2 R w 200 K2 RS R www + Vina(s) 40 KR 40 ΚΩ R4 w 50 KS2 50 ΚΩ R + V out in out 1 Fig. 2.1. Fig. 2.2 *For the Op Amp in Fig. 2.2. Evaluate the Av. (5) *Recommend a generalized Op Amp amplifier which processes sin wave into a cosine wave (1-5), a square wave into a...
2. Consider this non-inverting op-amp amplifier This non-inverting amplifier circuit uses an operational amplifier as a building block. Do around. The op-amp's gain is a "little a"), but the overall amplifier's gain is A Cbig A. Derive the value of the output voltage, ve, as a function of the input voltage not confuse the non-inverting amplifier with the operational amplifier that it is built a. and the op-amp's gain a. What is the overall amplifier's gain Avo/v? (20pts) b. We...
Figure 2 shows a multiple op-amp networks combined to produce a gain amplifier circuit. For the given circuit: (i) Name all the type of op-amp circuits shown by Op-Amp 1 until Op-Amp 5. (ii) Calculate the output of each Op-Amp 1 until Op-Amp 4. Assume Vin = 10mV (iii) Determine the output voltage at the last Op-Amp 5. From this value, calculate the gain produced by this Op-Amp network in overall, by using Av=Vos / Vin equation. [10 Marks] CO3,...
(33 points) Assuming an ideal op-amp and given the resistor values, calculate both the voltage gain and the input resistance. Ri-5000, R2-12000, R3-14000, R-6000, R5-14000, R6-700Ω Rs R2 Vin+ R3 Vout Rs R4 The voltage gain The input resistance Rin - help (numbers) Ω help (numbers)
6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100 , and R2 50 . Ry VR R.y 7. What is the output voltage (Vo) of the summing op-amp below? 1000 kn 200 k2 50 k2 +5 V 100 k2 -5 V V. out 8. For the operational amplifier circuit depicted below: a. Determine Vout in terms of the resistors: Ri, R2, R3, R4 and I R1 qut R- (current source) for the operational...
The gain of the non-inverting amplifier is set by the values of the resistors connected to the op- .amp can never be less than 1, even when RB is very high and RT equals 0 A voltage divider is a circuit involving two resistors in series All above is .1 correct Which statement not correct for Ideal operational amplifier Infinite open loop gain AOL for differential .1 .signa Zero gain for the common mode signal .Zero output impedance .noninfinite bandwidth...
need help for d,e,f
OP-Amp Circuit R-20k Fig 1 1. Design an operational amplifier circuit using an LM741 op-amp and a 10k the diagram shown in Fig 1 to produce the output voltage feedback resistor that represents Clearly write your ID number in Table 1 Table 1 Your ID Number 3775。73 . Set up the roquired gain numbers as follows and write them in Table 2 Ai- the last digit of your ID number+5 A2-the 2ed last digit of your...
