Two wires are anchored at both ends. Wire 1 has a mass of 169 gm and...

Two wires are anchored at both ends. Wire 1 has a mass of 169 gm and a length of 4.10 m. Wire 2 has a mass of 50.0 grams, a length of 20.0 m, and a tension of 96.0 N. What must be the tension in Wire 1 if its third harmonic is to equal the first overtone of Wire 2? (Rounded to 3 significant figures)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

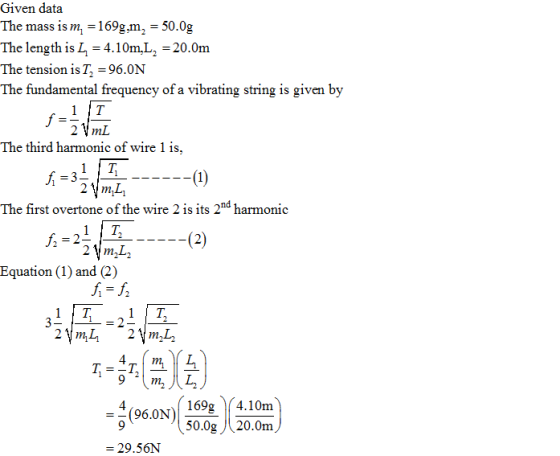

Given data The mass ism, = 169g,m,-50.0g The length isL4.10m,L-20.0m The tension isT, -96.0N The fundamental frequency of a v

0 0
