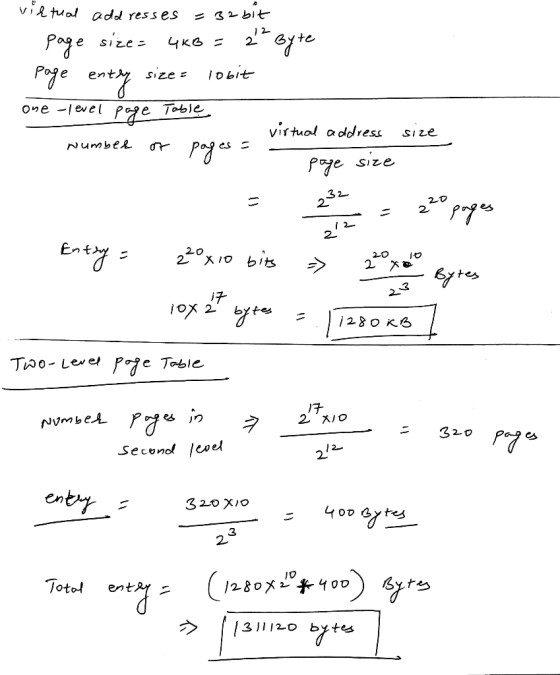

it’s from operating system. please provide me correct
answer.

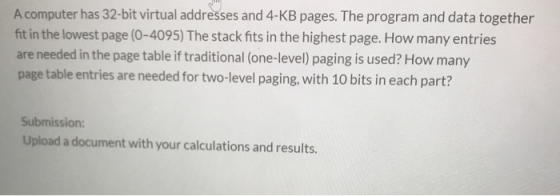

A computer has 32-bit virtual addresses and...
A computer has 32-bit virtual addresses and the page size is 2^3 KB. Suppose the text,...
A computer has 32-bit virtual addresses and the page size is 2^3 KB. Suppose the text, data, and stack segments of a process need 5 page(s) each. If the computer uses two-level page tables, with 3 bits for the second-level index, how many page table entries (PTEs) are in each second-level page table?
The RISC-V 32-bit architecture supports virtual memory with 32-bit virtual addresses mapping to 32-bit physical addresse...
The RISC-V 32-bit architecture supports virtual memory with 32-bit virtual addresses mapping to 32-bit physical addresses. The page size is 4Kbytes, and page table entries (PTEs) are 4 bytes each. Translation is performed using a 2-level page table structure. Bits 31:22 of a virtual address index the first-level page table. If the selected first-level PTE is valid, it points to a second-level page table. Bits 21:12 of the virtual address then index that second-level page table. If the selected second-level...
computer architecture Virtual memory 4 physice memar Assume a 64 bit machine with 40 bit addresses,...
computer architecture
Virtual memory 4 physice memar Assume a 64 bit machine with 40 bit addresses, and 16GB of actual memory. Memory blocks are 4K 1. How many bits in the virtual memory INDEX and OFFSET fields? 2. What fields do you need in a page table entry, and how many bits are needed for each? How many bytes do you need for each page table entry? (each entry is allocated in a whole number of bytes, even if there...
Consider a system with 64 bit words, 48 bit addresses, 32GB of real memory and 4kB...
Consider a system with 64 bit words, 48 bit addresses, 32GB of real memory and 4kB pages. a) How many virtual pages are there? b) How many page frames (real memory) are there? c) How many entries are needed in the page table? d) If each entry in the table requires 2 words, how big is the table?
Consider a pure paging system that uses 32-bit addresses (each of which specifies one byte of...
Consider a pure paging system that uses 32-bit addresses (each of which specifies one byte of memory), contains 2 GB of main memory, and has a page size (ps) of 8 KB. 1. Given 32-bits for each PTE, how many total bytes of memory are required to store the page table?
6) Paging [26 pts] Suppose you have a computer system with a 38-bit logical address, page size of 16K, and 4 bytes per...
6) Paging [26 pts] Suppose you have a computer system with a 38-bit logical address, page size of 16K, and 4 bytes per page table entry a) How many pages are there in the logical address space? Suppose we use two level paging and each page table can fit completely in a frame. [4 pts] How many pages? [2 pts] Show your calculations here: b) For the above-mentioned system, give the breakup of logical address bits clearly indicating number of...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and with 4096-byte pages. All numbers below are given in hexadecimal. (A dash for a page frame indicates that the page is not in memory.) Page Number Physical Frame Number 0 - 1 2 2 C 3 A 4 - 5 4 6 3 7 - 8 B 9 0 How many bits are in the offset part of the address? How many hex digits...
36.-Assume a 32 bit memory space with 16[KB] pages/frames and a two-level page table. Answer the...
36.-Assume a 32 bit memory space with 16[KB] pages/frames and a two-level page table. Answer the following questions: a).-what is the size of the page table in bytes needed for a process that has only 64[MB] of code at the start of its virtual address range? b).-how many bits are used for address (frame) offset, and how many for page table indexing (total). Assume each page table entry has 32 bits. a).-Size of page table b).-Offset bits b).-Page table indexing...
Please use the python to write Assume that a system has a 32-bit virtual address with...
Please use the python to write Assume that a system has a 32-bit virtual address with a 4-KB page size. Write a program that is passed a virtual address (in decimal) on the command line and have it output the page number and offset for the given address. As an example, your program would run as follows: ./addresses 19986 Your program would output: The address 19986 contains: page number = 4 offset = 3602 Writing this program will require using...
A computer system has a 36-bit virtual address space with a page size of 8K, and...
A computer system has a 36-bit virtual address space with a page size of 8K, and 4 bytes per page table entry. How many pages are in the virtual address space? What is the maximum size of addressable physical memory in this system? If the average process size is 8GB, would you use a one-level, two-level, or three-level page table? Why? Compute the average size of a page table in part c above
computer architecture
Virtual memory 4 physice memar Assume a 64 bit machine with 40 bit addresses, and 16GB of actual memory. Memory blocks are 4K 1. How many bits in the virtual memory INDEX and OFFSET fields? 2. What fields do you need in a page table entry, and how many bits are needed for each? How many bytes do you need for each page table entry? (each entry is allocated in a whole number of bytes, even if there...
6) Paging [26 pts] Suppose you have a computer system with a 38-bit logical address, page size of 16K, and 4 bytes per page table entry a) How many pages are there in the logical address space? Suppose we use two level paging and each page table can fit completely in a frame. [4 pts] How many pages? [2 pts] Show your calculations here: b) For the above-mentioned system, give the breakup of logical address bits clearly indicating number of...
