Question

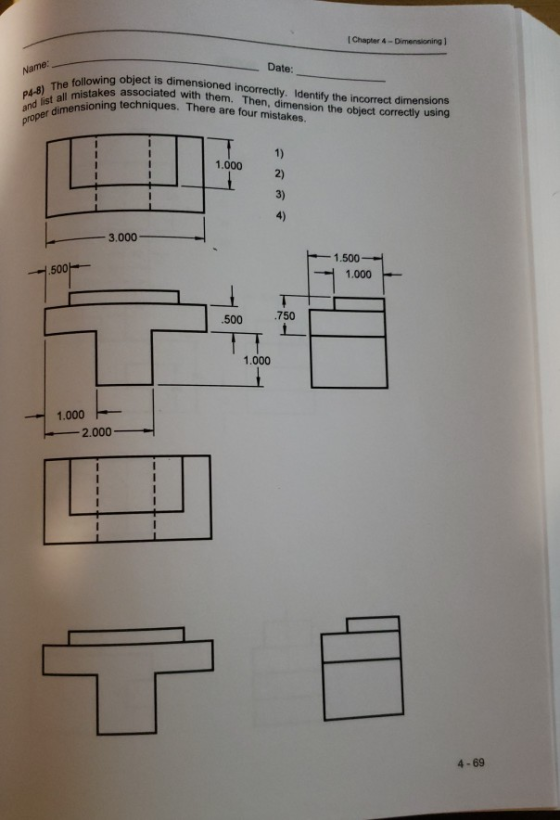

P4-8) The following object is dimensions incorrectly. Identify the incorrect dimensions and list all mistakes associated with them. Then, dimension the o eject correctly using proper dimensioning techniques. There are four mistakes.

Chapter 4 - Dimensioning 1 Name: Date: P4-8) The following and list all mistake proper dimensioni llowing object is dimensioned incorrectly. Identify the incorrect dimensions stakes associated with them. Then, dimension the object correctly using cioning techniques. There are four mistakes. -3.000 .500- 1.500 1.000 T .500 .750 1.000 1.000 2.000 4-69

Answer 1

1,5 0, 5 2 0,5 + 0,25 1,75

Dimensions are given automatically by Creo according to Dimensions Standard.

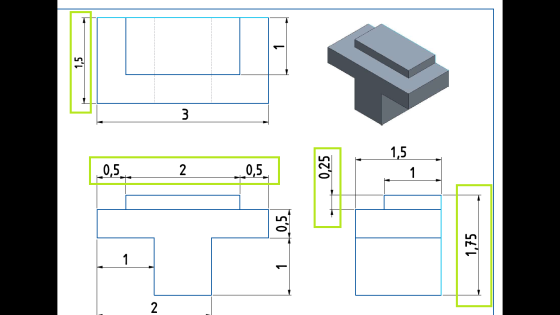

i have given the correct dimensions in green box.

Thank you!!

Good Luck..
