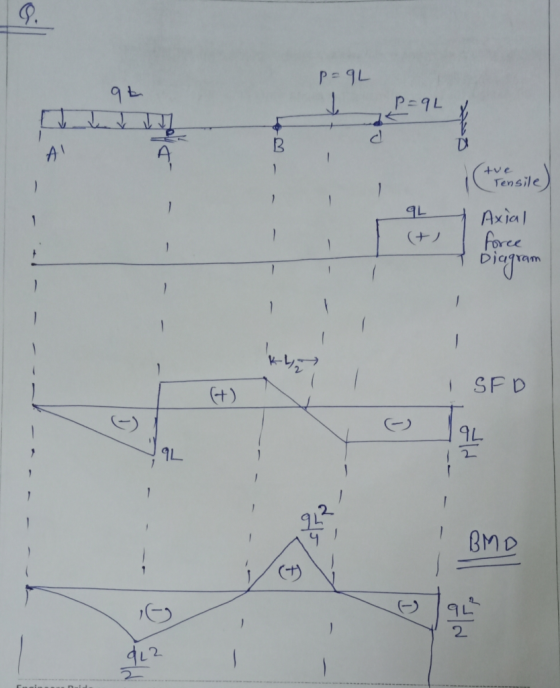

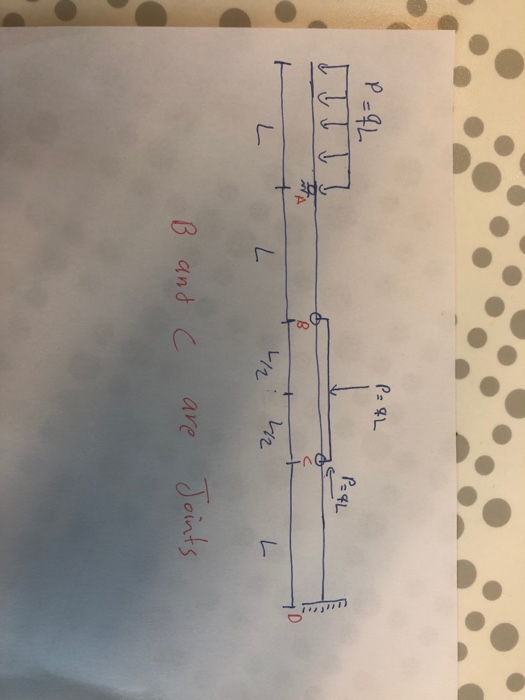

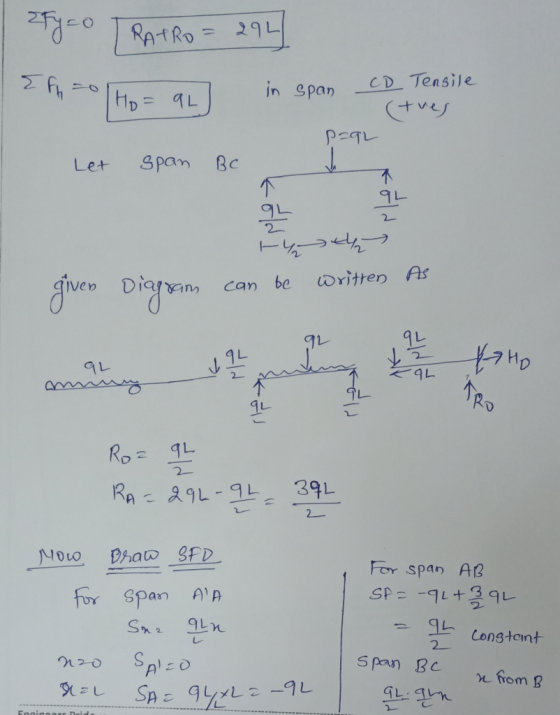

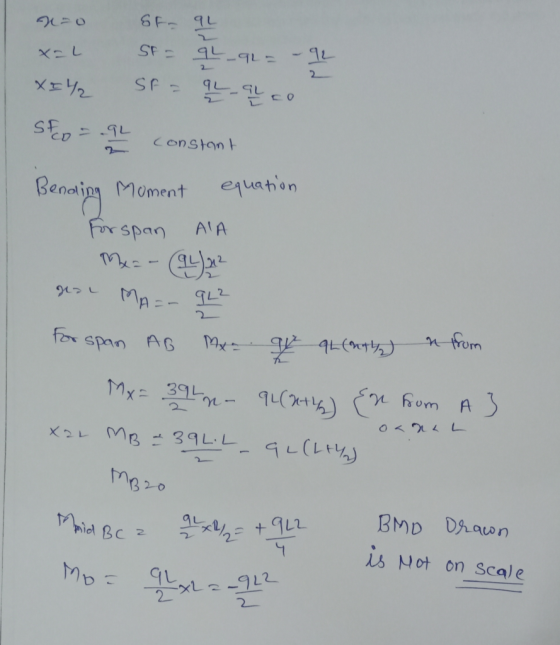

Draw the normalForce-diagram, shearForce-diagram and Moment-diagram. 76=d P=9L I Paal 7 24 24 7 B and...
Moment distribution method
Determine the moments at A, C, and D, then draw the moment diagram for each member of the frame. Support A and joints C and D are fixed connected. El is constant Prob. 11-18 6 kN/m 6 m 8 m rn 7 m
use moment Distribution approach
11-25. Determine the moments at joints B and C, thern draw the moment diagram for each member of the frame. The supports at A and D are pinned. EI is constant. 8 k 10 ft
Question3: Using slope deflection method, calculate the moment at joints B and C, and draw the shear and moment diagram for each member of the frame. Assume the supports at A and D are pins. El is constant. X1 =101 X2=218 (X1+x2) kN/m B VC 12 m D A 5 m 10 m 5 m
Assume A and D are both pinned. Joints B and C are rigid
connections.
a. Solve the problem by hand: find the reactions and draw the
shear and moment diagram for each member. Please Show all work for
reactions and Draw the shear and moment diagrams seperately.
1.5 k/ft 20 ft 24 ft
(a) draw the complete shear diagram with corresponding labels and units (b) draw the complete moment diagram with corresponding labels and units (c) find the magnitude of maximum compressive normal stress (d) find the magnitude of the maximum tensile normal stress Give the value and location for all quantities along the beam and on the cross section. NOTE: The moment of inertia is I = 99.75 in and the centroid is given. Clearly label all significant quantities in your shear...
Help with the shear and moment diagram
SHEAR AND MOMENT DIAGRAM: Draw diagram (20pts.) and label the parts of the load diagram and shear and moment 23. For the given frame draw the shear and moment diagram of each member 22 kN/m 5 m Hinge 5 m 110kN 1475 FOR MEMBER AC FOR MEMBER CE 27 FOR MEMBER EG /47s llD Page d of 4
3. Draw shear and moment diagram
3. DRAW SHEAR AND MOMENT DIAGRAM : .. A A
7. (20pt) For the following Stick Diagram: • (a) Draw the Circuit Diagram. • (b) Which two transistors have shared diffusion? • (c) Write the Boolean Function Equation for OUT. (d) Draw the Logic Diagram using NAND, NOR, INV. (e) Which important items and layers may be missing in the below stick diagram? E D A B C Vdd P+ Active Out N* Active Gnd Metal Poly
Determine the moments at C and D. then draw the moment diagram for each member of the frame. Assume the supports at A and B are pins. EI is constant.
Draw the M/El diagram by parts along with the combined moment diagram. Use the moment-area method to find (a) the slope at the free end, (b) the maximum deflection, and (c) deflection at the middle of the simply supported beam shown in the Fig. 1., E=29x103 kip/in2. and I = 209 in4.
