1. For the state of stress depicted in Fig. 1, calculate the principle stresses and 02...

Question

Question

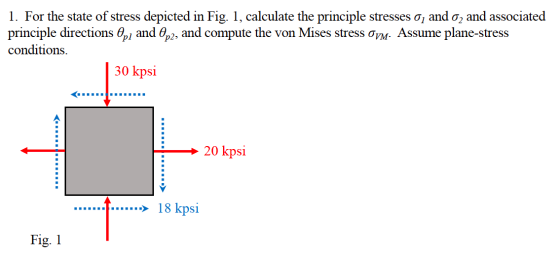

1. For the state of stress depicted in Fig. 1, calculate the principle stresses and 02 and associated principle directions Op

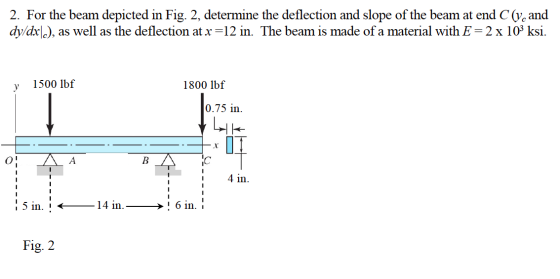

2. For the beam depicted in Fig. 2, determine the deflection and slope of the beam at end C (y and dy/dx[.), as well as the d

3. The tapered cylindrical bar in Fig. 3 is subjected to opposing torques T on its free ends. For the tapered section only, t

engineering Civil-Engineering

Answer 1

Answer #1

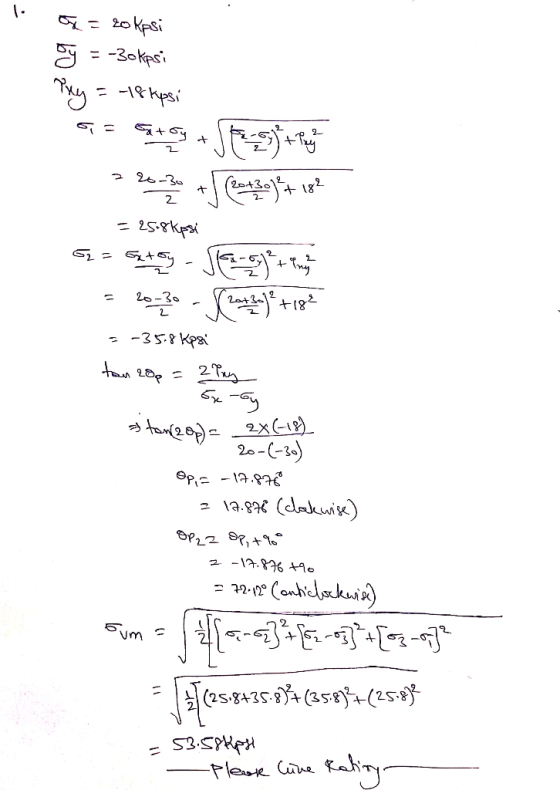

o = 20 kasi y = -30kpsi Phy = -18 kpsi ༠= མཱདྷ ཝསུ ཎ པ》 ,- - - = 25.8 kpsi G = Getry - Seorang = 20720 - [142]+ig? 3-35.8 Kps

Answer 2

Similar Homework Help Questions

Given: y Тр Cross Section 14 in 2.5 in 18 in The circular steel rod shown...

Given: y Тр Cross Section 14 in 2.5 in 18 in The circular steel rod shown above is fixed at point A and has torques and axial loads applied at points B and C, as well as a vertical load at C. The magnitudes of the loads are given below, while the direction of the forces is depicted in the figure. In addition, the cross section of the rod is given with its relevant properties. Finally, the shear and moment...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...

A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
