..............The magnetic field strength of a current-carrying, circular loop along an x-axis running perpendicular to the...
..............The magnetic field strength of a current-carrying, circular loop along an x-axis running perpendicular to the loop and passing through its center is given by:
Bx = µ0IR2 2(x2 + R2)3/2
where R is the radius of the loop and I is the current. At what x position is Bx half the maximum found at the center of the loop?

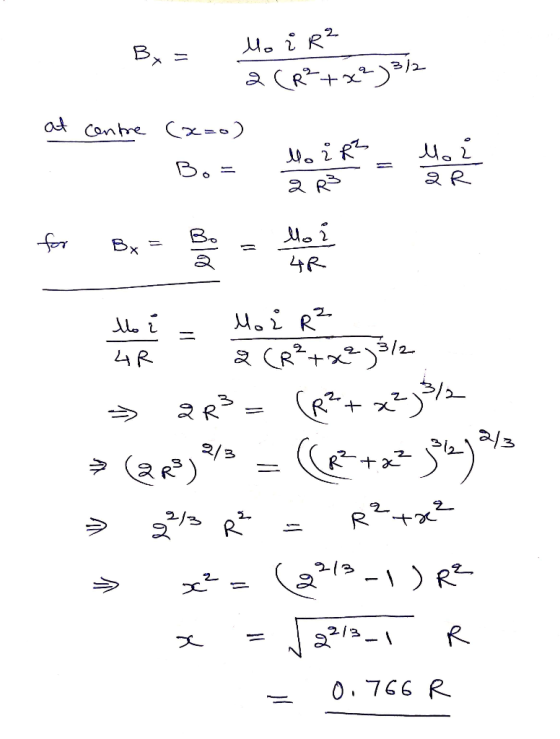

Homework Answers
Add Answer to:
..............The magnetic field strength of a current-carrying,
circular loop along an x-axis running perpendicular to the...
Questions/Assignments an expression for the magnetic field at the center of circular loop of current carrying...
Questions/Assignments an expression for the magnetic field at the center of circular loop of current carrying wire erive an expression for the magnetic field at a point on the axis of circular current carrying wire. 3. D erive an expression for the magnetic field at a point distance x away(along the dipole) due to magnetic dipole of moment M. 4. Derive an expression for the magnetic field at a point distance x away (along the perpendicular bisector) due to a...
PLEASE ANSWER THIS FAST! Example 22.6 Magnetic Field on the Axis of a Circular Current Loop...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
What is the magnitude of the magnetic field of a loop carrying constant current in the...
What is the magnitude of the magnetic field of a loop carrying
constant current in the center of the loop?
B =
Magnetic field field due to a loop of current r=(x+ + y 12 dBy Imagine a thin current loop of radius R as in the figure above carrying a constant current I in the direction out of the page (the loop in the figure is turned slightly for a better view). What is the magnitude of the magnetic...
A circular loop carrying a current of 1.6 A is oriented in a magnetic field of...
A circular loop carrying a current of 1.6 A is oriented in a magnetic field of 0.30 T. The loop has an area of 0.14 m2 and is mounted on an axis, perpendicular to the magnetic field, which allows the loop to rotate. What is the torque on the loop when its plane is oriented at a 21° angle to the field? 2.4E-2 N.m 9.4E-1 N.m 5.6E-2 N.m 3.7E-2 N.m 6.3E-2 N.m
A circular loop carrying a current of 1.6 A is oriented in a magnetic field of...
A circular loop carrying a current of 1.6 A is oriented in a magnetic field of 0.30 T. The loop has an area of 0.14 m2 and is mounted on an axis, perpendicular to the magnetic field, which allows the loop to rotate. What is the torque on the loop when its plane is oriented at a 21° angle to the field? 03.7E-2 Nm O24E-2 N·m O 6.3E-2 N.m 5.6E-2 N.m O 9.4E-1 Nm
3. Find the magnetic field at a distance H on the axis of a circular loop...
3. Find the magnetic field at a distance H on the axis of a circular loop of wire of radius R carrying a current I.
3. a) Describe Ampere's Law for a long straight wire carrying a current, and Faraday's (5 marks) b) A circular loop of area 0.10m2, is perpendicular to a unifom magnetic field, B. The Law of...
3. a) Describe Ampere's Law for a long straight wire carrying a current, and Faraday's (5 marks) b) A circular loop of area 0.10m2, is perpendicular to a unifom magnetic field, B. The Law of induction, and Lenz's Rule for a loop of wire in a magnetic field. loop contains a resistor (i) What is the EMF across the resistor where the magnitude of the magnetic field varies with time according to B = 0.10-0.04t, with B in teslas and...
A circular loop with radius R is in a magnetic field that is perpendicular to it....
A circular loop with radius R is in a magnetic field that is perpendicular to it. Assume that the normal to the loop is in the same direction as the field. The strength of the field, as a function of radial distance from the center r, is given by B=kr (where k is a constant). What is the flux over the loop? My plan for this problem was to take the integral of the function of the magnetic field B=kr....
considering the magnetic field in the center of a current carrying loop of wire 7he magnetic...
considering the magnetic field in the center of a current carrying
loop of wire
7he magnetic field will he stronger if you increase the current you deeease the curient you switch the direction of the current The magnetic field will be stronger if you increase the radius of the loop you decrease the radius of the loop the radius won't affect the field strength the diagram to the righ, indicate the direction
Two identical small current carrying loops of wire are oriented along a common axis with the...
Two identical small current carrying loops of wire are oriented along a common axis with the plane of their loops parallel to each other. See Figure EC. The distance between the loops, x, is much larger than the radius of each loop, R. The magnetic dipole moment of each loop is directed parallel to the axis, and the magnetic field that one loop creates at the center of the other loop is also parallel to the axis. So mu^rightarrow and...
Questions/Assignments an expression for the magnetic field at the center of circular loop of current carrying wire erive an expression for the magnetic field at a point on the axis of circular current carrying wire. 3. D erive an expression for the magnetic field at a point distance x away(along the dipole) due to magnetic dipole of moment M. 4. Derive an expression for the magnetic field at a point distance x away (along the perpendicular bisector) due to a...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
What is the magnitude of the magnetic field of a loop carrying
constant current in the center of the loop?
B =
Magnetic field field due to a loop of current r=(x+ + y 12 dBy Imagine a thin current loop of radius R as in the figure above carrying a constant current I in the direction out of the page (the loop in the figure is turned slightly for a better view). What is the magnitude of the magnetic...
A circular loop carrying a current of 1.6 A is oriented in a magnetic field of 0.30 T. The loop has an area of 0.14 m2 and is mounted on an axis, perpendicular to the magnetic field, which allows the loop to rotate. What is the torque on the loop when its plane is oriented at a 21° angle to the field? 2.4E-2 N.m 9.4E-1 N.m 5.6E-2 N.m 3.7E-2 N.m 6.3E-2 N.m
A circular loop carrying a current of 1.6 A is oriented in a magnetic field of 0.30 T. The loop has an area of 0.14 m2 and is mounted on an axis, perpendicular to the magnetic field, which allows the loop to rotate. What is the torque on the loop when its plane is oriented at a 21° angle to the field? 03.7E-2 Nm O24E-2 N·m O 6.3E-2 N.m 5.6E-2 N.m O 9.4E-1 Nm
3. Find the magnetic field at a distance H on the axis of a circular loop of wire of radius R carrying a current I.
3. a) Describe Ampere's Law for a long straight wire carrying a current, and Faraday's (5 marks) b) A circular loop of area 0.10m2, is perpendicular to a unifom magnetic field, B. The Law of induction, and Lenz's Rule for a loop of wire in a magnetic field. loop contains a resistor (i) What is the EMF across the resistor where the magnitude of the magnetic field varies with time according to B = 0.10-0.04t, with B in teslas and...
considering the magnetic field in the center of a current carrying
loop of wire
7he magnetic field will he stronger if you increase the current you deeease the curient you switch the direction of the current The magnetic field will be stronger if you increase the radius of the loop you decrease the radius of the loop the radius won't affect the field strength the diagram to the righ, indicate the direction
Two identical small current carrying loops of wire are oriented along a common axis with the plane of their loops parallel to each other. See Figure EC. The distance between the loops, x, is much larger than the radius of each loop, R. The magnetic dipole moment of each loop is directed parallel to the axis, and the magnetic field that one loop creates at the center of the other loop is also parallel to the axis. So mu^rightarrow and...
