Homework Answers

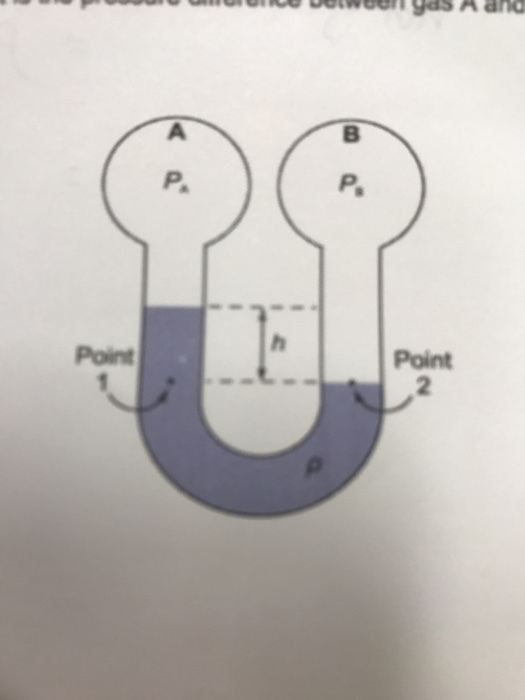

The difference in pressure of gas at A and B =
PA - PB = Density of the mercury * acceleration due to gravity * difference in height
Height difference is negative, since pressure at B is more than that at A
= 13.6 * 10^3 kg/m^3 * 9.8m/s^2 * (-0.1 m) = -13328 N/m^2
Add Answer to:
In
the figure, if the tube is filled with mercury of density 13.6*10^3
and the level...
Figure (a) below shows a U-shaped tube containing an amount of mercury. The left arm of...
Figure (a) below shows a U-shaped tube containing an amount of mercury. The left arm of the tube has cross-sectional area A, of 10.8 cm, and the right arm has a cross-sectional area A, of 4.00 cm. In both arms, the mercury is at the same level, as shown. In figure (b) below. 100 g of water is poured into the right arm of the tube and sits atop the mercury, all of it within the right arm. The mercury...
Y = 3 m (pa-pb) = 46 KN/m^2 Q.2. Figure:2 shows a U tube differential manometer...
Y = 3 m
(pa-pb) = 46 KN/m^2
Q.2. Figure:2 shows a U tube differential manometer connecting two pressure pipes at A and B. The pipe A and B contains water and manometer fluid is mercury. If the pressure difference between two pipe (p.-p.) is (X) kN/m’. Calculate the difference in level (h). (3 Marks) Water water 0.3 m у h Mercury Sp. gravity 13.6
Mercury is poured into a U-tube as shown in Figure a. The left arm of the...
Mercury is poured into a U-tube as shown in Figure a. The left arm of the tube has cross-sectional area A1 of 9.7 cm2, and the right arm has a cross-sectional area A2 of 5.40 cm2. Three hundred grams of water are then poured into the right arm as shown in Figure b. Water A Ay A2 Mercury (a) Determine the length of the water column in the right arm of the U-tube. uwra ume does 300 grams of water...
Mercury is poured into a U-tube as shown in Figure a. The left arm of the...
Mercury is poured into a U-tube as shown in Figure a. The left arm of the tube has cross-sectional area A1 of 11.0 cm2, and the right arm has a cross- sectional area A2 of 4.40 cm2. One hundred grams of water are then poured into the right arm as shown in Figure b. Water A Ag Mercury (a) Determine the length of the water column in the right arm of the U- tube. cm (b) Given that the density...
Mercury is poured into a U-tube as shown in Figure (a). The left arm of the...
Mercury is poured into a U-tube as shown in Figure (a). The left arm of the tube has cross-sectional area of 10.2 cm2, and the right arm has a cross-sectional area A2 of 4.60 cm2. One hundred grams of water are then poured into the right arm as shown in Figure (b). Determine the length of the water column in the right arm of the U-tube. cm Given that the density of mercury is 13.6 g/cm3, what distance h does...
The density of mercury is 13.6 g/cm 3. What is the density of mercury in kg/m...
The density of mercury is 13.6 g/cm 3. What is the density of mercury in kg/m 3? Show work please
EXAMPLE 6-2 Using a Manometer to Measure Gas Pressure When the manometer in Figure 6-5(c) is...
EXAMPLE 6-2 Using a Manometer to Measure Gas Pressure When the manometer in Figure 6-5(c) is filled with liquid mercury (d = 13.6 g/cm"), the barometric pressure is 748.2 mmHg, and the difference in mercury levels is 8.6 mmHg. What is the gas pressure Pgas? Analyze We must first establish which is greater: the barometric pressure or the gas pressure. In Figure 6-5(c), the baro- metric pressure forces liquid mercury down the tube toward the gas sample. The barometric pressure...
A mercury U-tube manometer is used to measure the pressure above atmosphere of water in a...
A mercury U-tube manometer is used to measure the pressure above atmosphere of water in a pipe. The water is in contact with the mercury in the left hand limb. 1. Sketch the arrangement and explain its action. 2. If the mercury is 30 cm below (A) in the left limb and 20 cm above (A) in the right limb, what is the gauge pressure at (A). take specific gravity equal to 13.6. 3. If the pressure at (A) is...
A glass tube of inside diameter 1.0 mm is dipped vertically into a container of mercury,...
A glass tube of inside diameter 1.0 mm is dipped vertically into a container of mercury, with its lower end 1 cm below the mercury surface. a) What must be the gauge pressure of the air in the tube to blow a hemispherical bubble at its lower end? (Answer: 1400 Pa) b) To what height will mercury rise in the tube if the air pressure in the tube is 3000 Pa below atmospheric? The contact angle is 140 degrees and...
contains mercury Problem 2. (3 pts.). A simple U-shaped tube with identical sides of a diameter...
contains mercury Problem 2. (3 pts.). A simple U-shaped tube with identical sides of a diameter 25 mm (millimeters) contains me We have poured 7189 of water into its left arm. (a) If adding 815g of oil into its right arm will bring the surface of the mercury (its interface with another liquid) to the same level on each side of our tube, what is the density of the oil? (6) What is the pressure at each of the points...
Figure (a) below shows a U-shaped tube containing an amount of mercury. The left arm of the tube has cross-sectional area A, of 10.8 cm, and the right arm has a cross-sectional area A, of 4.00 cm. In both arms, the mercury is at the same level, as shown. In figure (b) below. 100 g of water is poured into the right arm of the tube and sits atop the mercury, all of it within the right arm. The mercury...
Y = 3 m
(pa-pb) = 46 KN/m^2
Q.2. Figure:2 shows a U tube differential manometer connecting two pressure pipes at A and B. The pipe A and B contains water and manometer fluid is mercury. If the pressure difference between two pipe (p.-p.) is (X) kN/m’. Calculate the difference in level (h). (3 Marks) Water water 0.3 m у h Mercury Sp. gravity 13.6
Mercury is poured into a U-tube as shown in Figure a. The left arm of the tube has cross-sectional area A1 of 9.7 cm2, and the right arm has a cross-sectional area A2 of 5.40 cm2. Three hundred grams of water are then poured into the right arm as shown in Figure b. Water A Ay A2 Mercury (a) Determine the length of the water column in the right arm of the U-tube. uwra ume does 300 grams of water...
Mercury is poured into a U-tube as shown in Figure a. The left arm of the tube has cross-sectional area A1 of 11.0 cm2, and the right arm has a cross- sectional area A2 of 4.40 cm2. One hundred grams of water are then poured into the right arm as shown in Figure b. Water A Ag Mercury (a) Determine the length of the water column in the right arm of the U- tube. cm (b) Given that the density...
Mercury is poured into a U-tube as shown in Figure (a). The left arm of the tube has cross-sectional area of 10.2 cm2, and the right arm has a cross-sectional area A2 of 4.60 cm2. One hundred grams of water are then poured into the right arm as shown in Figure (b). Determine the length of the water column in the right arm of the U-tube. cm Given that the density of mercury is 13.6 g/cm3, what distance h does...
EXAMPLE 6-2 Using a Manometer to Measure Gas Pressure When the manometer in Figure 6-5(c) is filled with liquid mercury (d = 13.6 g/cm"), the barometric pressure is 748.2 mmHg, and the difference in mercury levels is 8.6 mmHg. What is the gas pressure Pgas? Analyze We must first establish which is greater: the barometric pressure or the gas pressure. In Figure 6-5(c), the baro- metric pressure forces liquid mercury down the tube toward the gas sample. The barometric pressure...
contains mercury Problem 2. (3 pts.). A simple U-shaped tube with identical sides of a diameter 25 mm (millimeters) contains me We have poured 7189 of water into its left arm. (a) If adding 815g of oil into its right arm will bring the surface of the mercury (its interface with another liquid) to the same level on each side of our tube, what is the density of the oil? (6) What is the pressure at each of the points...
