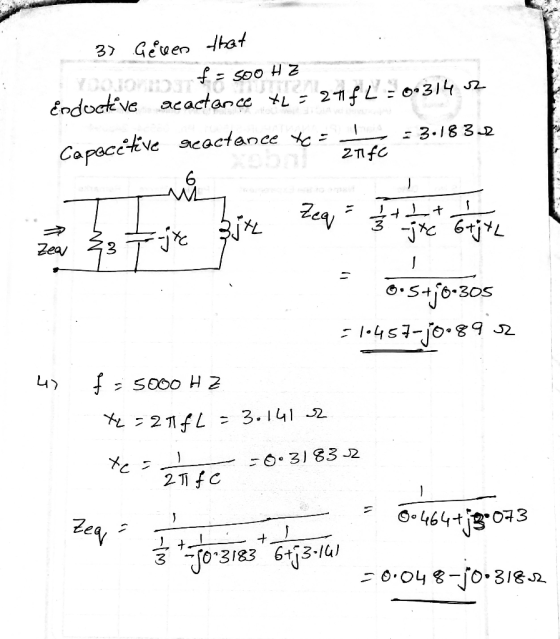

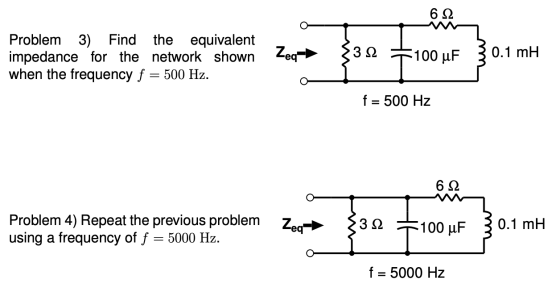

Problem 3) Find the equivalent impedance for the network shown Zeq→ when the frequency f =...
Find the impedance, Z. shown in Fig. P8.12 at a frequency of 400 Hz. 10 mH 2- 10 10 uF
Chapter 8, Problem 8.014 Find the impedance, z, shown in the figure below at a frequency of 60 Hz. 10 mH 2Ω 6 Ohm 초 10 μF 2.
The Thévenin equivalent of a two-terminal network is shown in (Figure 1). The frequency is f = 45 Hz. We wish to connect a load across terminals a - b that consists of a resistance and a capacitance in parallel such that the power delivered to the resistance is maximized. Part A Find the value of the resistance. Express your answer to three significant figures and include the appropriate units. O a ? THE HÅR Ruoad = 10. 0 2...
Rs 100Ω resistor C- 10 uF capacitor L- 120 mH inductor Write the impedance Z [Q] equation for the circuit shown in Figure 1. This formula should be in term of the frequency (f), not for angular frequency (). (using MATLAB) 1. From the above formula, plot power factor versus frequency over the frequency range 0 Hz to 1000 Hz. You may use a MATLAB program to do the plotting. 2. Find the frequencies for; Maximum power factor, Minimum power...
What is most nearty the equivalent imput impedance when the circuit shown is connected across a 120 V, 60 Hz source? 133 mH 10012 (A) 16 ?-33. (B) 50 n20 (C) 71 ?-45 (D) 1102.63.
4. In the circuit shown below, a parallel RC network creates a frequency-dependent feedback path for the inverting amplifier block with gain Av (a large negative value). Use the Miller theorem to find the equivalent input impedance Zin as indicated in the diagram and then show that Vin/Vsig is given by the symbolic expression shown below right. Choose a value for capacitor C to make the upper cut-off frequency fH equal to 22 kHz. Repeat the calculation for the case...

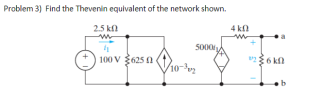

Problem 3) Find the Thevenin equivalent of the network shown 2.5 kS 0 5000i + 100 V 625 ? 1o-3/2
Problem 3 Find the output voltage (vo) for the following network where the input voltage is the one shown on the left hand side of Fig. 3. Explain your answer in detail and you can assume that the circuit has an ideal diode. C = 1 uF AV f = 1000 Hz 9 + + R 100 ks2 V V = 5V 2019 -20 -- PL Fig. 3
1. Find the ratio between the average and the rms value of the waveform shown in the figure below. v(t) (V) 6 in 12 3 t(ms) -2 2. Find the equivalent impedance looking from the source. Write in polar form. C2 2.2 ur L m 100 mH R 31.2 ks2 5 V 370 Hz C 1 uF
An RC circuit is shown. The equivalent capacitance for the capacitor network is Cac = 12 uF. The equivalent resistance for the resistor network is Rce = 800 12 The capacitors are initially uncharged, and the switch S is closed at t = 0. a) Find C3. [4 points] b) Find R1: [4 points] c) Find the current i(0) in the circuit at t= 0. [4 points] d) Find Vac in the circuit at t = 00. [3 points] e)...
