1. Determine the maximum load P the frame in Figure 1 can support without member AB...

Question

Question

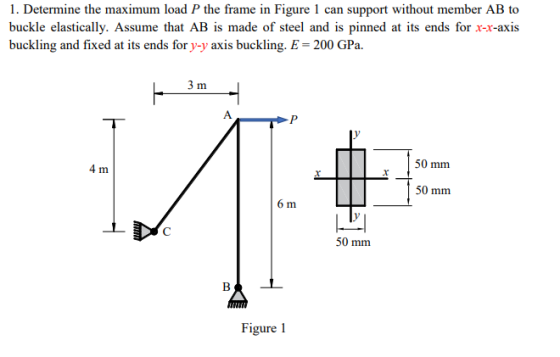

1. Determine the maximum load P the frame in Figure 1 can support without member AB to buckle elastically. Assume that AB is

engineering Civil-Engineering

Answer 1

Answer #1

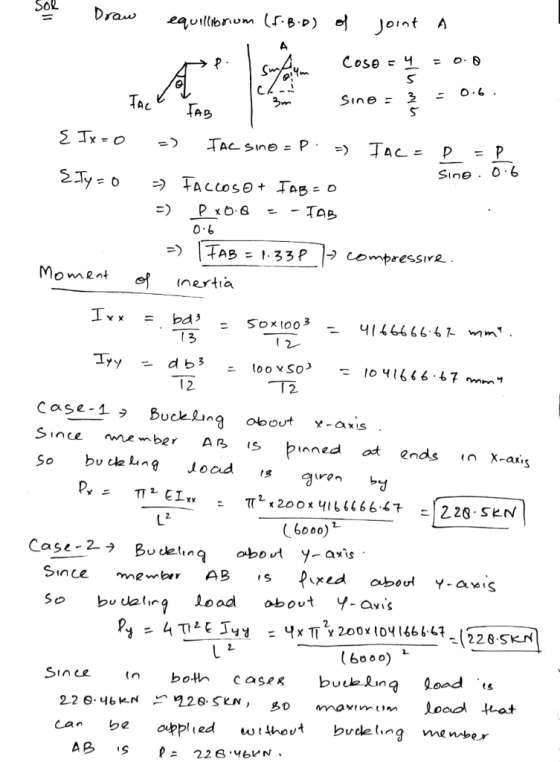

Sol AC 0.6 Momeni (nertia case-1, oo out Buckling Since membe A is Y-as 6000) obody-axis. Case-2→ Bu delinq Since membr AB o

Answer 2

Similar Homework Help Questions

Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is p...

Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends. Est - 200 GPa, , 360 MPa. 50 mm 50 mm 4 m 50 mm Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends. Est - 200 GPa, , 360 MPa. 50 mm 50 mm 4 m...
13-13. Determine the maximum load P the frame can support without buckling member AB. Assume that...

13-13. Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends for y-y axis buckling and fixed at its ends for x-x axis buckling. Ex = 200 GPa, y = 360 MPa. 3 m А P T 50 mm H-X 50 mm 4 m 50 mm - 6 m
Prob. 13-12 13-13. Determine the maximum load P the frame can support without buckling member AB....

Prob. 13-12 13-13. Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends for y-y axis buckling and fixed at its ends for x-x axis buckling. Ex = 200 GPa, Or = 360 MPa. 3 m HA P 50 mm HR 50 mm 50 mm - 4 m M 6 m Prob. 13-13

Member AB is d 6.5 m long, made of steel, and is pinned at its ends for y-y axis buckling and fix...

Member AB is d 6.5 m long, made of steel, and is pinned at its ends for y-y axis buckling and fixed at its ends for a-x axis buckling. 50 mm 50 mm 50 mm Est-200 G Pao 360 MPa. Determine the maximum load P the frame can support without buckling member AB. Express your answer to three significant figures and include appropriate units. kN 42.83 Member AB is d 6.5 m long, made of steel, and is pinned at...
Problem 13.13 MasteringEngineering MasteringComputer... Q Tap image to zoom Review Member AB is d...

Problem 13.13 MasteringEngineering MasteringComputer... Q Tap image to zoom Review Member AB is d 5.8 m long, made of steel, and is pinned at its ends for y-y axis buckling and fixed at its ends for c axis buckling 150 mm 50 mmm 4 m S0 mm Tap image to zoomm Est 200 GPa, ơY Part A 360 MPa Determine the maximum load P the frame can support without buckling member AB. Express your answer to three significant figures and...
T 50 mm Hitx 150 mm 50 mm • Determine the maximum force P the frame...

T 50 mm Hitx 150 mm 50 mm • Determine the maximum force P the frame can support without buckling member AB. AB is pinned at the ends for y-y axis buckling and fixed at ends for x-x axis buckling. Esteel=200 GPa, Oyield = 360 MPa 3 m — A. 4 m | 50 6 m BOV

Determine the maximum load P that frame can support without buckling member AB made of steel....

Determine the maximum load P that frame can support without buckling member AB made of steel. (Est = 2003 MPa, Sy = 360 MPa). 4m A P 40 mm 40 mm 5 m 40 mm - 7 m BV
Problem 3: Determine the maximum load P that frame can support without buckling member AB made...

Problem 3: Determine the maximum load P that frame can support without buckling member AB made of steel. (Est = 2003 MPa, Sy = 360 MPa). 4m A P x 40 mm -X 40 mm 5 m 40 mm у 7 m B
Problem 3: Determine the maximum load P that frame can support without buckling member AB made...

Problem 3: Determine the maximum load P that frame can support without buckling member AB made of steel. (Est = 2003 MPa, Sy = 360 MPa). 4m A P x 40 mm -X 40 mm 5 m 40 mm у 7 m B

Please show all work clearly, thanks Determine the maximum load P that frame can support without...

Please show all work clearly, thanks Determine the maximum load P that frame can support without buckling member AB made of steel. (Est = 2003 MPa, Sy = 360 MPa). -4 m A P у 40 mm -X 40 mm 5 m 40 mm у 7 m C B
