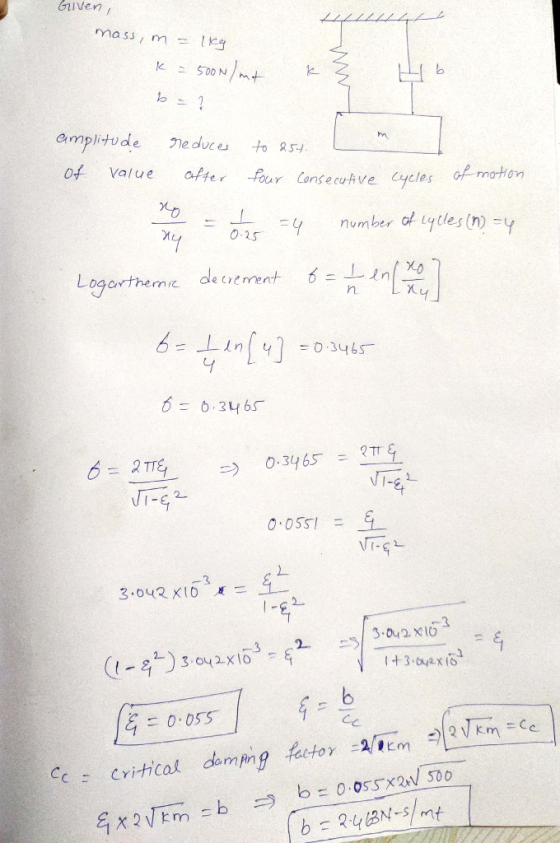

b=2.463N-s/mt
Add Answer to:
arthe. ndr Problem 1: ur A free vibration of the mechanical system shown in the figure...
Problem B-8-7 A free vibration of the mechanical system shown in Figure 8-27(a) indicates that the...

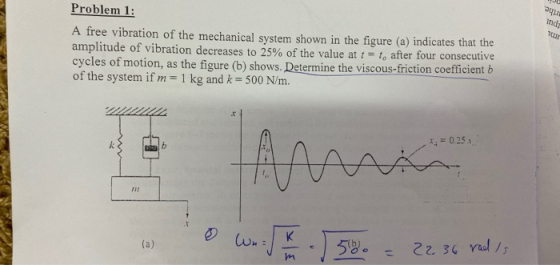

Problem B-8-7 A free vibration of the mechanical system shown in Figure 8-27(a) indicates that the amplitude of vibration decreases to 25% of the value at 1-10 after four consecutive cycles of motion, as Figure 8-27(b)shows. Determine the viscous-friction coefficient b of the system if - kg and k 500 N/m. AAAA?~ x4 = 0.25 im Figure 8-27 (a) Mechanical system (b) portion of a free vibration curve.
Figure 4 shows a two-mass translational mechanical system. The applied force falt) acts on mass mi....
Figure 4 shows a two-mass translational mechanical system. The applied force falt) acts on mass mi. Displacements z1 and 22 are absolute positions of masses mi and m2, respectively, measured relative to fixed coordinates (the static equilibrium positions with fa(t) = 0). An oil film with viscous friction coefficient b separates masses mi and m2. Draw the free body diagram and derive the mathematical model of the vibration system using the diagram. falt) Oil film, friction coefficient b K m2...
فب this is an intro to mechanical ViBRATION Problem, I know the solution to this problem...
فب
this is an intro to mechanical ViBRATION Problem, I know the
solution to this problem using matrixes, but this problems weights
6 pts out of the 100 overall course grade I want a 100% full
correction to this problem, I saw a solution on this problem on
previous post but its not full and contain errors
Consider a mass m linked to a support P by a spring of stiffness k and a viscous friction damper with coefficient a.....
A vibratory system can be modeled as a mass spring dashpot system as shown in Figure. In a free vibration test, the mas...
A vibratory system can be modeled as a mass spring dashpot system as shown in Figure. In a free vibration test, the mass is disturbed from its equilibrium position. The corresponding time history plot is given as shown by the plot. Determine the following characteristics of the system: a) The natural frequency of the system b) The effective spring stifness c) The viscous damping coefficient c E 2 20kg 1.5 time (s)
A vibratory system can be modeled as a...
Question 2. In the experimental vibration system shown below, the point A is given a sinusoidal...
Question 2. In the experimental vibration system shown below, the point A is given a sinusoidal motion of amplitude 6 mm at a frequency of 2 Hz. The mass of 1 kg at B is connected through the spring of stiffness 80 N/m, and its motion is opposed by a dashpot giving a viscous resistance of 5 N per m/s. Find the amplitude of motion at B, the maximum force in the spring, and the work done per cycle by...
Question 2 In the experimental vibration system shown below, the point A is given a sinusoidal...
Question 2 In the experimental vibration system shown below, the point A is given a sinusoidal motion of amplitude 6 mm at a of stiffness 80 N/m, and its motion is opposed by a dashpot giving a viscous resistance of 5 N per m/s. Find the amplitude of motion at B, the maximum force in the spring, and the work done per cycle by the driving force at A frequency of 2 Hz. The mass of 1 kg at B...
A vibration isolation system for a 1-DOF mechanical system is shown below. Displacement of the mass...
A vibration isolation system for a 1-DOF mechanical system is shown below. Displacement of the mass x is measured from the static equilibrium position and the system parameters are m = 0.3 kg. k=10N/m, b = 4.4 Ns/m, and by = 0.5 Ns/m. Fixed 1. TI W Fixed base Figure / sehen voulon tem a) Derive the mathematical model of the system. Make sure you have the FBD and all equations and signs are properly showcased. b) Use the system...
3.23 The system shown in Figure P3.23 is acted upon by the forcing function shown. The...
3.23 The system shown in Figure P3.23 is acted upon by the forcing function shown. The system parameters are m = 15 kg, k = 75 kN/m,fo = 750 N, and o 15.13 Hz. Tasks: For motion about equilibrium, determine the steady-state amplitude and phase: (a) Free vibration tests result in a log dec, 6, of Im 0.523 (b) c=0. (c) Using the damping from part (a), determine ft)-fo cos ot the range of excitation frequencies such that the amplitude...
QUESTION 10 Q8 (a): shock absorber for a car is to be designed. The system can be considered as simple SDOP system with a mass of m kg as shown in figure (below) and its damped free vibration res...
QUESTION 10 Q8 (a): shock absorber for a car is to be designed. The system can be considered as simple SDOP system with a mass of m kg as shown in figure (below) and its damped free vibration response is shown beside that. The damped period of vibration is to be Td sec. n u It is observed that the amplitude reduced to,% of initial value after 2 oscillations. x(o) 2 For the above question, determine the damped natural frequencies...
Problems 47 2.56. Determine the differential equation of motion for free vibration of the system shown in Fig. P2.5...
Problems 47 2.56. Determine the differential equation of motion for free vibration of the system shown in Fig. P2.56, using virtual work m/ft FIGURE P2.56
Problems 47 2.56. Determine the differential equation of motion for free vibration of the system shown in Fig. P2.56, using virtual work m/ft FIGURE P2.56
Problem B-8-7 A free vibration of the mechanical system shown in Figure 8-27(a) indicates that the amplitude of vibration decreases to 25% of the value at 1-10 after four consecutive cycles of motion, as Figure 8-27(b)shows. Determine the viscous-friction coefficient b of the system if - kg and k 500 N/m. AAAA?~ x4 = 0.25 im Figure 8-27 (a) Mechanical system (b) portion of a free vibration curve.
Figure 4 shows a two-mass translational mechanical system. The applied force falt) acts on mass mi. Displacements z1 and 22 are absolute positions of masses mi and m2, respectively, measured relative to fixed coordinates (the static equilibrium positions with fa(t) = 0). An oil film with viscous friction coefficient b separates masses mi and m2. Draw the free body diagram and derive the mathematical model of the vibration system using the diagram. falt) Oil film, friction coefficient b K m2...
فب
this is an intro to mechanical ViBRATION Problem, I know the
solution to this problem using matrixes, but this problems weights
6 pts out of the 100 overall course grade I want a 100% full
correction to this problem, I saw a solution on this problem on
previous post but its not full and contain errors
Consider a mass m linked to a support P by a spring of stiffness k and a viscous friction damper with coefficient a.....
A vibratory system can be modeled as a mass spring dashpot system as shown in Figure. In a free vibration test, the mass is disturbed from its equilibrium position. The corresponding time history plot is given as shown by the plot. Determine the following characteristics of the system: a) The natural frequency of the system b) The effective spring stifness c) The viscous damping coefficient c E 2 20kg 1.5 time (s)
A vibratory system can be modeled as a...
Question 2. In the experimental vibration system shown below, the point A is given a sinusoidal motion of amplitude 6 mm at a frequency of 2 Hz. The mass of 1 kg at B is connected through the spring of stiffness 80 N/m, and its motion is opposed by a dashpot giving a viscous resistance of 5 N per m/s. Find the amplitude of motion at B, the maximum force in the spring, and the work done per cycle by...
Question 2 In the experimental vibration system shown below, the point A is given a sinusoidal motion of amplitude 6 mm at a of stiffness 80 N/m, and its motion is opposed by a dashpot giving a viscous resistance of 5 N per m/s. Find the amplitude of motion at B, the maximum force in the spring, and the work done per cycle by the driving force at A frequency of 2 Hz. The mass of 1 kg at B...
A vibration isolation system for a 1-DOF mechanical system is shown below. Displacement of the mass x is measured from the static equilibrium position and the system parameters are m = 0.3 kg. k=10N/m, b = 4.4 Ns/m, and by = 0.5 Ns/m. Fixed 1. TI W Fixed base Figure / sehen voulon tem a) Derive the mathematical model of the system. Make sure you have the FBD and all equations and signs are properly showcased. b) Use the system...
3.23 The system shown in Figure P3.23 is acted upon by the forcing function shown. The system parameters are m = 15 kg, k = 75 kN/m,fo = 750 N, and o 15.13 Hz. Tasks: For motion about equilibrium, determine the steady-state amplitude and phase: (a) Free vibration tests result in a log dec, 6, of Im 0.523 (b) c=0. (c) Using the damping from part (a), determine ft)-fo cos ot the range of excitation frequencies such that the amplitude...
QUESTION 10 Q8 (a): shock absorber for a car is to be designed. The system can be considered as simple SDOP system with a mass of m kg as shown in figure (below) and its damped free vibration response is shown beside that. The damped period of vibration is to be Td sec. n u It is observed that the amplitude reduced to,% of initial value after 2 oscillations. x(o) 2 For the above question, determine the damped natural frequencies...
Problems 47 2.56. Determine the differential equation of motion for free vibration of the system shown in Fig. P2.56, using virtual work m/ft FIGURE P2.56
Problems 47 2.56. Determine the differential equation of motion for free vibration of the system shown in Fig. P2.56, using virtual work m/ft FIGURE P2.56
