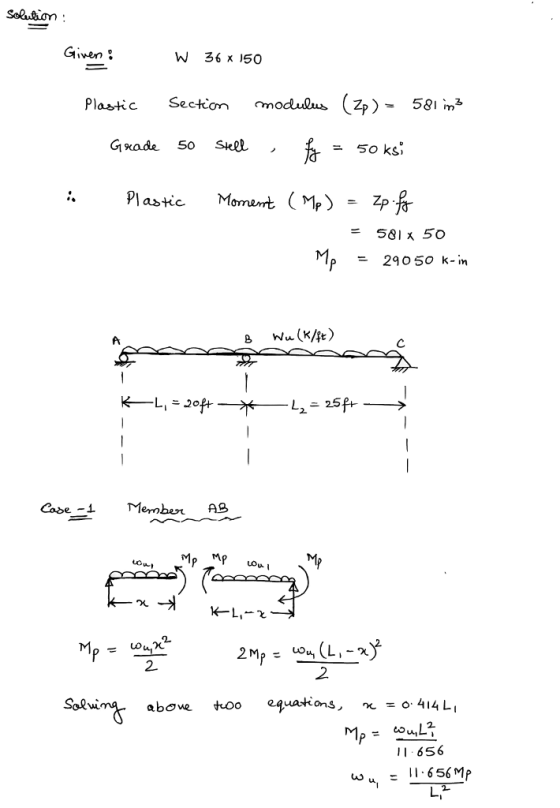

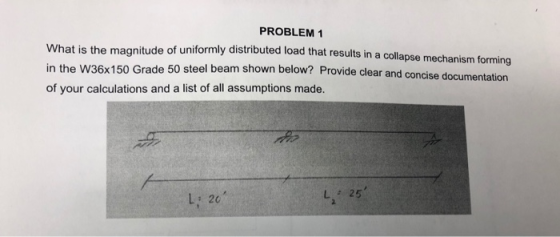

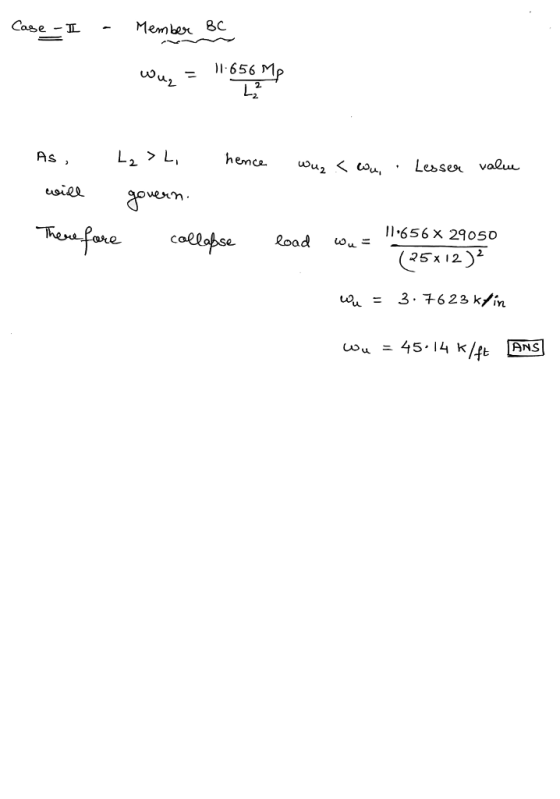

PROBLEM 1 What is the magnitude of uniformly distributed load that results in a collap in...
Problem 2: the most economical (lightest) W shape to support a uniformly distributed load of 4k/ft...
Problem 2: the most economical (lightest) W shape to support a uniformly distributed load of 4k/ft (This load includes the weight of the beam) on a simply supported span of 25 ft as shown. Assume the yield stress of the steel to be 50 ksi. The deflection limit (Allowable) is Select 360 w 4 kips/ft 25'-0" R 50 kips RB 50 kips
In Appendix C, see the simply supported beam with a uniformly distributed load. Be careful with...
In Appendix C, see the simply supported beam with
a uniformly distributed load. Be careful with units and the sign
convention. For this calculation, the overhung part of the beam
from C to D can be ignored, and the beam is
treated as a simply supported beam of length
2L1. Be careful with units and the sign
convention.
The simply supported beam consists of a W530 × 66 structural steel
wide-flange shape [ E = 200 GPa; I = 351...
A simply supported beam (B-2) supports a uniformly distributed load and is braced at five-foot in...
A simply supported beam (B-2) supports a uniformly distributed
load and is braced at five-foot intervals in addition to a
composite slab that is secured to the compression flange of the
beam via shear studs. Assume that the beam is made of ASTM A992
grade with Fy = 50 ksi.
Select the lightest W shape to safely support the following
loads:
DL = 225 psf LL = 150 psf
Beams are spaced at 10' o.c.
8.25*: A simply supported beam...
The beam shown below is subjected to a uniformly distributed load, w, over its entire length....
The beam shown below is subjected to a uniformly distributed
load, w, over its entire length. What is the largest value of w
that the beam can withstand prior to collapse? For simplicity, you
may assume that w includes the weight of the beam itself.
Use ACI 318-14 building code requirements for structural
concrete
The beam shown below is subjected to a uniformly distributed load, w, over its entire length. What is the largest value of w that the beam...
A steel I-beam with a span of 20 feet will support both a concentrated load of...
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
Problem 2: Point loads A beam is loaded with a distributed load that has a total...
Problem 2: Point loads A beam is loaded with a distributed load that has a total integrated magnitude f at its center. The load is uniformly distributed between -al< x<aL so that the force per unit length is f/2aL as shown in the figure below. o is a unitless number between zero and one. The beam has a Young's modulus E and a known moment of inertia I about its neutral axis.
The Beam shown will be subjected to a concentrated live load of 100kN, a uniformly distributed...
The
Beam shown will be subjected to a concentrated live load of 100kN,
a uniformly distributed live load of 50kN/m and a uniformly
distributed dead load of 20kN/m.
45.) determine the maximum reaction at B
46.) determine the maximum positive shear at C
47.) determine the maximum negative moment at B
The beam shown will be subjected to a concentrated live load of 100 KN, a uniformly distributed live load of 50 kN/m and a uniformly distributed dead load of...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure QI (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which is...
The simply supported beam of length L is subjected to uniformly distributed load of w and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
UDL BB 300mm 200mm 8m ELEVATION SECTION Live Load: WQ = 2kN/m Uniformly Distributed Dead Load:...
UDL BB 300mm 200mm 8m ELEVATION SECTION Live Load: WQ = 2kN/m Uniformly Distributed Dead Load: WG = 11.5kN/m Uniformly Distribted Ultimate Design Load: W* = 16.8kN/m 35mm effective cover 32MPa grade concrete Unit Weight of Concrete = 25kN/m2 Ec = 30,000MPa n = 6.6 Design Bending Moment: M* = 134kN/m Short - Term Bending Moment: M*5 = 103kNm Long-Term Bending Moment: M*sus = 98kNm Direct Tensile Stength: f'ct = 2.0MPa Flexural Tensile Stength: f'ct = 3.4MPa Determine the area...
Problem 2: the most economical (lightest) W shape to support a uniformly distributed load of 4k/ft (This load includes the weight of the beam) on a simply supported span of 25 ft as shown. Assume the yield stress of the steel to be 50 ksi. The deflection limit (Allowable) is Select 360 w 4 kips/ft 25'-0" R 50 kips RB 50 kips
In Appendix C, see the simply supported beam with
a uniformly distributed load. Be careful with units and the sign
convention. For this calculation, the overhung part of the beam
from C to D can be ignored, and the beam is
treated as a simply supported beam of length
2L1. Be careful with units and the sign
convention.
The simply supported beam consists of a W530 × 66 structural steel
wide-flange shape [ E = 200 GPa; I = 351...
A simply supported beam (B-2) supports a uniformly distributed
load and is braced at five-foot intervals in addition to a
composite slab that is secured to the compression flange of the
beam via shear studs. Assume that the beam is made of ASTM A992
grade with Fy = 50 ksi.
Select the lightest W shape to safely support the following
loads:
DL = 225 psf LL = 150 psf
Beams are spaced at 10' o.c.
8.25*: A simply supported beam...
The beam shown below is subjected to a uniformly distributed
load, w, over its entire length. What is the largest value of w
that the beam can withstand prior to collapse? For simplicity, you
may assume that w includes the weight of the beam itself.
Use ACI 318-14 building code requirements for structural
concrete
The beam shown below is subjected to a uniformly distributed load, w, over its entire length. What is the largest value of w that the beam...
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
Problem 2: Point loads A beam is loaded with a distributed load that has a total integrated magnitude f at its center. The load is uniformly distributed between -al< x<aL so that the force per unit length is f/2aL as shown in the figure below. o is a unitless number between zero and one. The beam has a Young's modulus E and a known moment of inertia I about its neutral axis.
The
Beam shown will be subjected to a concentrated live load of 100kN,
a uniformly distributed live load of 50kN/m and a uniformly
distributed dead load of 20kN/m.
45.) determine the maximum reaction at B
46.) determine the maximum positive shear at C
47.) determine the maximum negative moment at B
The beam shown will be subjected to a concentrated live load of 100 KN, a uniformly distributed live load of 50 kN/m and a uniformly distributed dead load of...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure QI (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which is...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
UDL BB 300mm 200mm 8m ELEVATION SECTION Live Load: WQ = 2kN/m Uniformly Distributed Dead Load: WG = 11.5kN/m Uniformly Distribted Ultimate Design Load: W* = 16.8kN/m 35mm effective cover 32MPa grade concrete Unit Weight of Concrete = 25kN/m2 Ec = 30,000MPa n = 6.6 Design Bending Moment: M* = 134kN/m Short - Term Bending Moment: M*5 = 103kNm Long-Term Bending Moment: M*sus = 98kNm Direct Tensile Stength: f'ct = 2.0MPa Flexural Tensile Stength: f'ct = 3.4MPa Determine the area...
