Long straight wire carries current to the right. Current is increasing. Hence magnetic flux through the circular wire ring is out of plane of paper and is increasing. Hence by Lenz's law to counteract this growth of flux , induced current in the wire ring flows CLOCKWISE. Answer is b.
Add Answer to:
Arrow to the right on diagram

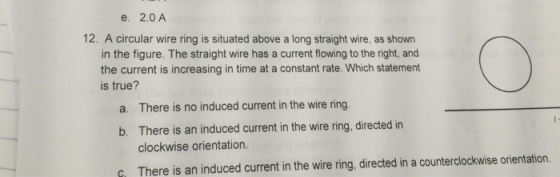

A circular wire ring is situated above a long straight...
8.) [2 points] A circular metal ring is situated next to a long straight wire, as...
8.) [2 points] A circular metal ring is situated next to a long
straight wire, as shown in the figure. The straight wire has a
current flowing down through it, and the current is increasing over
time.
Which statement is true?
a.) There is no induced current in the metal ring.
b.)
Thereisaninducedcurrentinthemetalring,flowinginacounterclockwisedirection.
c.) There is an induced current in the metal ring, but the
direction cannot be determined here. d.)
Thereisnoinducedcurrentinthemetalringbecausethestraightwireisn’tgoingthroughit.
e.) There is an induced current in the...
In the diagram below, the long straight wire carries a current to the right and the...
In the diagram below, the long straight wire carries a current
to the right and the current is increasing with time. This changing
current produces an emf in the circular loop. What is the direction
of the induced emf?
a. Clockwise b. Counterclockwise. c. We need to know the
resistance of the loop
5. In the diagram below, the long straight wire carries a current to the right and the current is increasing with time. This changing current produces an...
5. In the diagram below, the long straight wire carries a current to the right and...
5. In the diagram below, the long straight wire carries a current to the right and the current is increasing with time. This changing current produces an emf in the circular loop. What is the direction of the induced emf? (A) Clockwise (B) Counterclockwise (C) We need to know the resistance of the loop ( )
5. In the diagram below, the long straight wire carries a current to the right and...
5. In the diagram below, the long straight wire carries a current to the right and the current is increasing with time. This changing current produces an emf in the circular loop. What is the direction of the induced emf? (A) Clockwise (B) Counterclockwise (C) We need to know the resistance of the loop i O
The current I in a long, straight wire is constant and is directed toward the right as in (Figure 1).
The current I in a long, straight wire is constant and is directed toward the right as in (Figure 1). Conducting loops A, B, C, and D are moving, in the directions shown, near the wire. Part A For each loop, is the direction of the induced current clockwise or counterclockwise, or is the induced current zero? Drag the appropriate items to their respective bins. Part B For each loop, what is the direction of the net force that the wire exerts on the...
2) A straight wire is partially bent into the shape of a circle as shown below....
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
2) A straight wire is partially bent into the shape of a circle as shown below....
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
A long straight wire carrying a current I1 is near a wire loop as shown.
A long straight wire carrying a current I1 is near a wire loop as shown. For each part, determine whether the magnetic flux Φ through the loop due to Ii is into the page, out of the page or zero, and whether the current 12 induced in the loop is clockwise, counterclockwise or zero. a) I1 is constant to the left and the loop is moving toward the wireΦ: into page/out of page/zero I2: clockwise/counterclockwise/zero b) I1 is increasing to the right Φ: into...
A long straight wire and rectangular thin wire loop shown in the figure below are in...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
GENERAL PHYSICS PHY2049 A) 0.287 B) 0.693 ) 0.725 D) 1.33 E) None of these 20....
GENERAL PHYSICS PHY2049 A) 0.287 B) 0.693 ) 0.725 D) 1.33 E) None of these 20. A cireular metal ring is situated above a lone straight wire, as shown in the figure. The straight wire has a current flowing to the lefi, and the current is decreasing in time at a constant rate. Which statement is true? a> There is an induced current in the metal ring, flowing in a clockwise direction. current in the metal ring, flowing in a...
8.) [2 points] A circular metal ring is situated next to a long
straight wire, as shown in the figure. The straight wire has a
current flowing down through it, and the current is increasing over
time.
Which statement is true?
a.) There is no induced current in the metal ring.
b.)
Thereisaninducedcurrentinthemetalring,flowinginacounterclockwisedirection.
c.) There is an induced current in the metal ring, but the
direction cannot be determined here. d.)
Thereisnoinducedcurrentinthemetalringbecausethestraightwireisn’tgoingthroughit.
e.) There is an induced current in the...
In the diagram below, the long straight wire carries a current
to the right and the current is increasing with time. This changing
current produces an emf in the circular loop. What is the direction
of the induced emf?
a. Clockwise b. Counterclockwise. c. We need to know the
resistance of the loop
5. In the diagram below, the long straight wire carries a current to the right and the current is increasing with time. This changing current produces an...
5. In the diagram below, the long straight wire carries a current to the right and the current is increasing with time. This changing current produces an emf in the circular loop. What is the direction of the induced emf? (A) Clockwise (B) Counterclockwise (C) We need to know the resistance of the loop ( )
5. In the diagram below, the long straight wire carries a current to the right and the current is increasing with time. This changing current produces an emf in the circular loop. What is the direction of the induced emf? (A) Clockwise (B) Counterclockwise (C) We need to know the resistance of the loop i O
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
2) A straight wire is partially bent into the shape of a circle as shown below. A uniform magnetic field is directed perpendicular to the plane of the circle and into the page. Each end of the wire is then pulled at a constant speed so that the area of the circle shrinks to zero. (a) Sketch a graph of the magnetic flux with respect to time. flux time (b)Is the direction of the induced current in the circular wire...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
GENERAL PHYSICS PHY2049 A) 0.287 B) 0.693 ) 0.725 D) 1.33 E) None of these 20. A cireular metal ring is situated above a lone straight wire, as shown in the figure. The straight wire has a current flowing to the lefi, and the current is decreasing in time at a constant rate. Which statement is true? a> There is an induced current in the metal ring, flowing in a clockwise direction. current in the metal ring, flowing in a...
